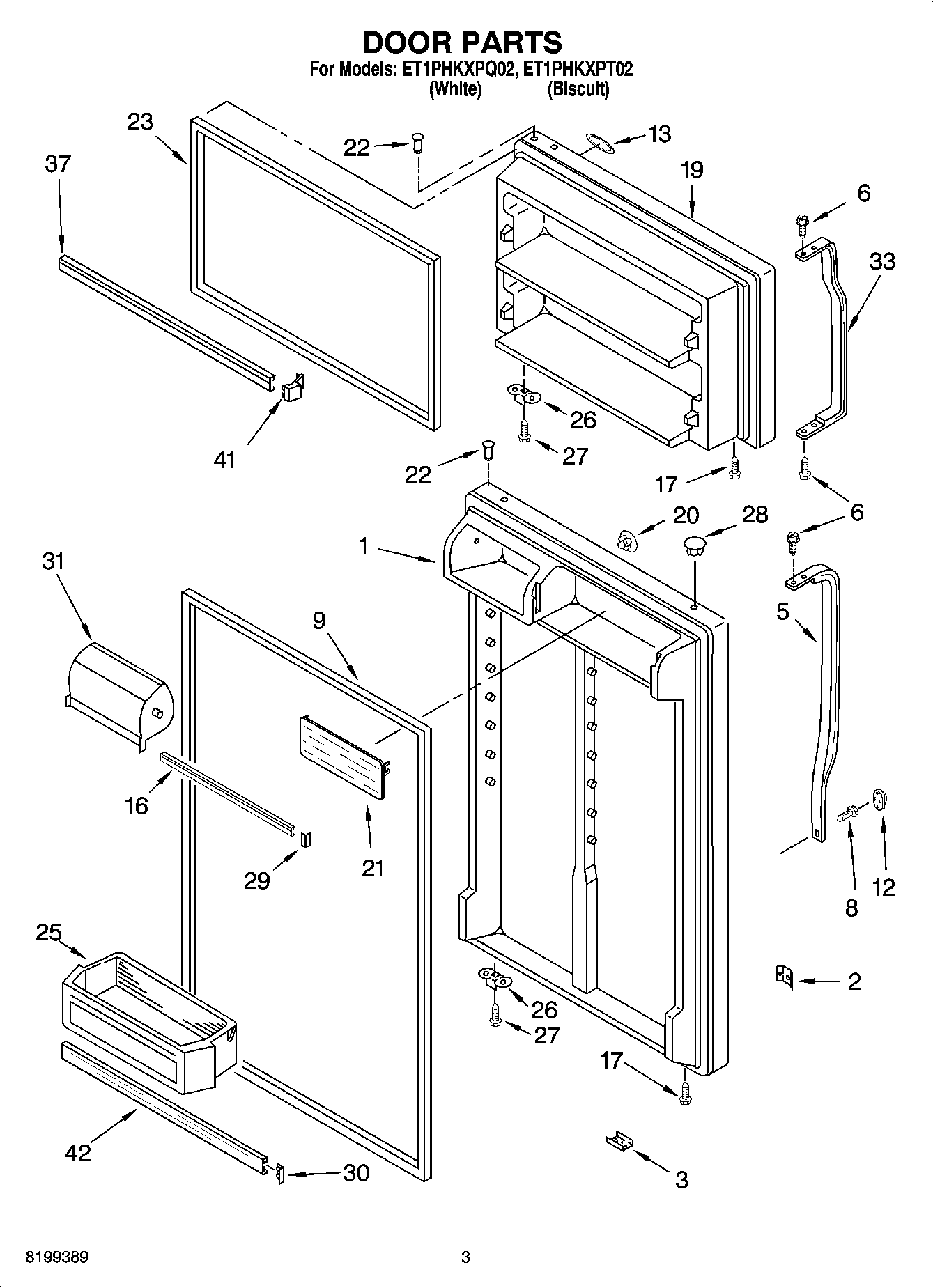

ET1PHKXPQ02 02 – DOOR PARTS

ET1PHKXPQ02 02 – DOOR PARTS

Written by

in

ET1PHKXPQ02 02 – DOOR PARTS

Products

PositionProduct
2WP939101 Whirlpool Refrigerator Plate
3W10833053 Whirlpool Refrigerator Plate
5Handle Center (Biscuit)
5WP2202807W Whirlpool Handle Door
6WP489357 Whirlpool Recessed Screw
8WP8281146 Whirlpool Screw
92159061 Whirlpool Refrigerator Door Gasket
12Cover, Screw (Biscuit)
12WP2202819W Whirlpool Refrigerator Cover
13WP2213265 Whirlpool Refrigerator Nameplate
16TRIM-DOOR
17WP8281206 Whirlpool Refrigerator Screw
19W11023688 Whirlpool Refrigerator Door Assembly
19W11023679 Whirlpool Refrigerator Door Assembly
20WP2200936 Whirlpool Refrigerator Handle Plug
20WP2189000 Whirlpool Refrigerator Handle Plug
21WP2188236 Whirlpool Refrigerator Shelf Door
22WP2183003 Whirlpool Thimble
23WHITE DOOR GASKET-FIP
25WP2204812 Whirlpool Refrigerator Door Bin
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212649 Whirlpool Refrigerator Button Plug
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31WP2218118 Whirlpool Refrigerator Door Compressor
33Handle, F.C. (Biscuit)
33WP2202806W Whirlpool Refrigerator Handle
37Trim, Door Shelf (2)
41ENDCAP
42WPW10421486 Whirlpool Refrigerator Door Trim
