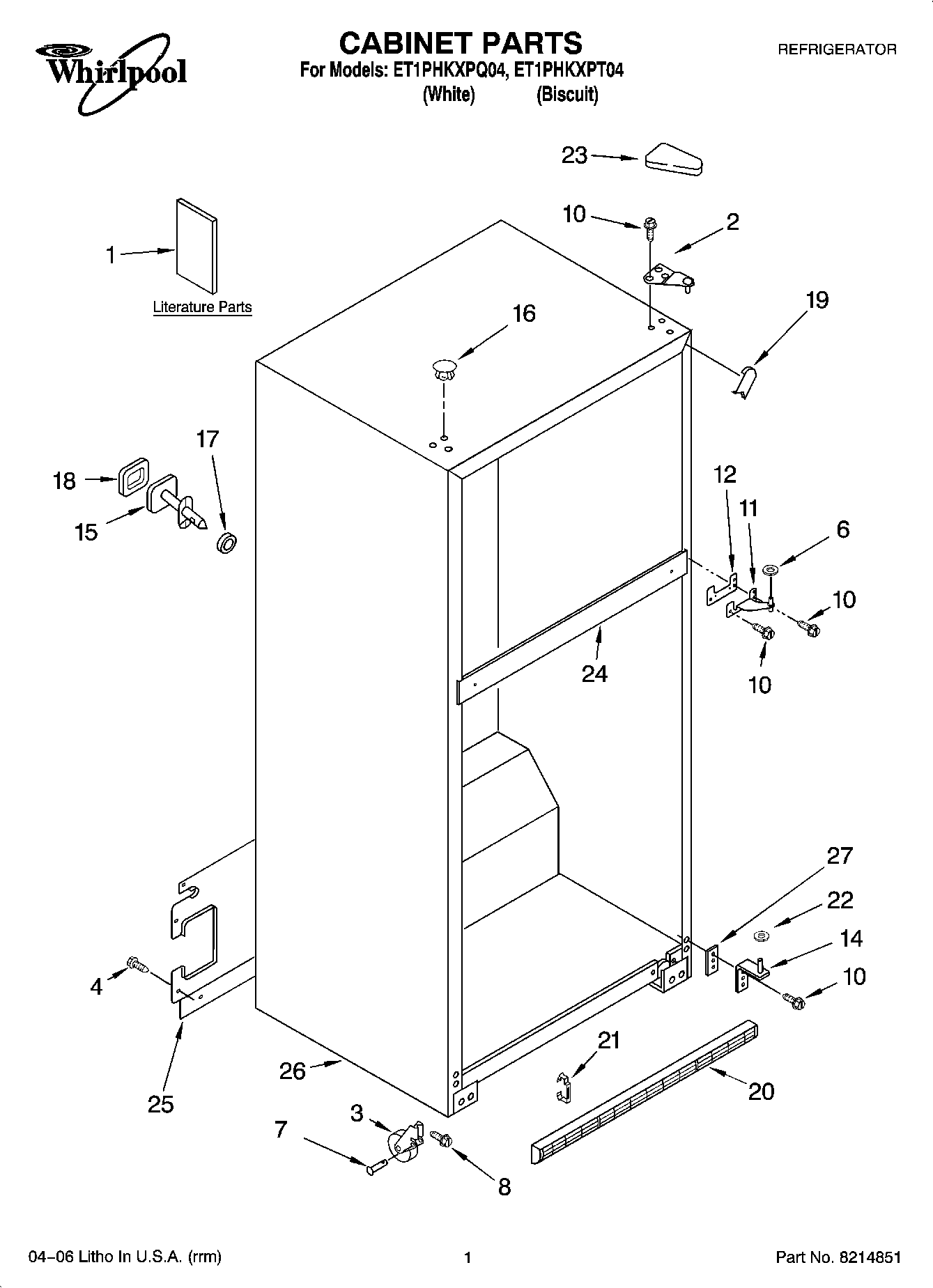

ET1PHKXPQ04 01 – CABINET PARTS

ET1PHKXPQ04 01 – CABINET PARTS

Written by

in

ET1PHKXPQ04 01 – CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Use & Care Guide
1Service & Wiring Sheet
1Energy Label
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489427 Whirlpool Refrigerator Screw
6WP489467 Whirlpool Hinge Shim
7W11594405 Whirlpool Axle
8WP3400504 Whirlpool Refrigerator Screw
10WP489497 Whirlpool Screw
11WP2254618 Whirlpool Center Door Hinge
12WP2183854 Whirlpool Refrigerator Shim
14WP2254473 Whirlpool Refrigerator Door Hinge
15Fitting, Water Tube (Not Serviced)
16WP2151652 Whirlpool Refrigerator Button Plug
16Hole Plug (6) (Biscuit)
17Seal, Front (Not Serviced)
18Seal, Rear (Not Serviced)
19WPW10283959 Whirlpool Refrigerator Filler
19W10283958 Whirlpool Refrigerator Filler
20Grille (White)
20Grille (Biscuit)
21CLIP, GRILLE
22WP487576 Whirlpool Washer
232213364 Whirlpool Refrigerator Cover
23WP2213360 Whirlpool Refrigerator Cover
24Rail, Center (Not Serviced)
25Cover, Unit
26Cabinet, (Not A Serviceable Part)
27Shim, Bottom Hinge
