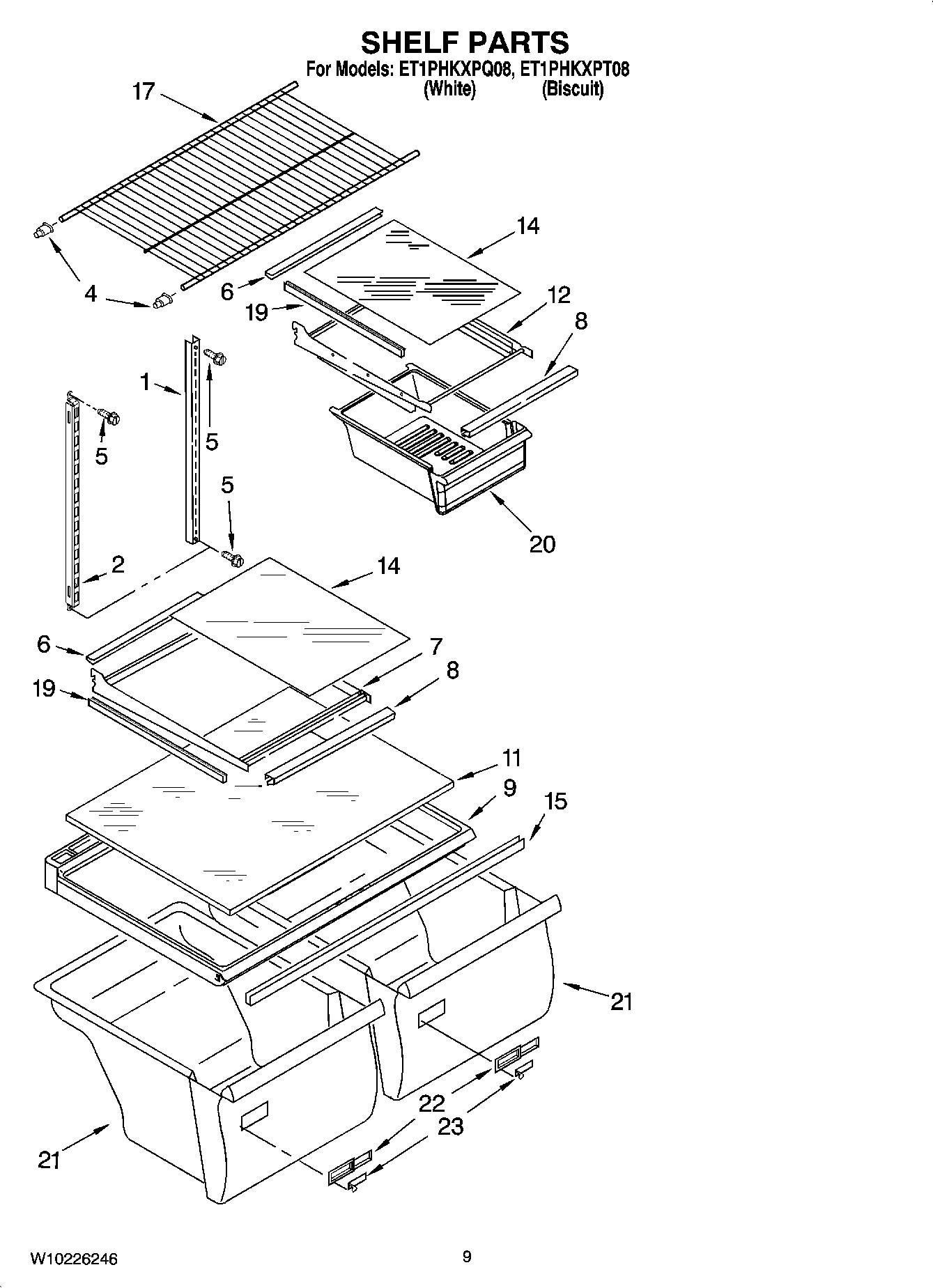

ET1PHKXPQ08 05 – SHELF PARTS, OPTIONAL PARTS (NOT INCLUDED)

ET1PHKXPQ08 05 – SHELF PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

ET1PHKXPQ08 05 – SHELF PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
WPL ARI48195A5
WPL ARI48194A1
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI48193A1
WPL ARI48192A7
WPL ARI48196A8
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
1Shelf, Ladder (2)
2Shelf, Ladder Center
42163762 Whirlpool Refrigerator Cup Assembly
5WP489478 Whirlpool Refrigerator Screw
6WP2188689 Whirlpool Refrigerator Shelf Trim
7Shelf, Cantilever
8Trim, Shelf Front
9WP2314549 Whirlpool Refrigerator Cover
11WP2176225 Whirlpool Glass Shelf
12Pan, Shelf Cantilever
14Glass, Shelf
15WP2172748 Whirlpool Drawer Support
17Shelf, Freezer
19Trim, Shelf Side
20WP2218132K Whirlpool Crisper Meat Pan
21W10854037 Whirlpool Refrigerator Crisper Pan
22WP2212446 Whirlpool Refrigerator Control Body
23WP2176222 Whirlpool Refrigerator Slide
