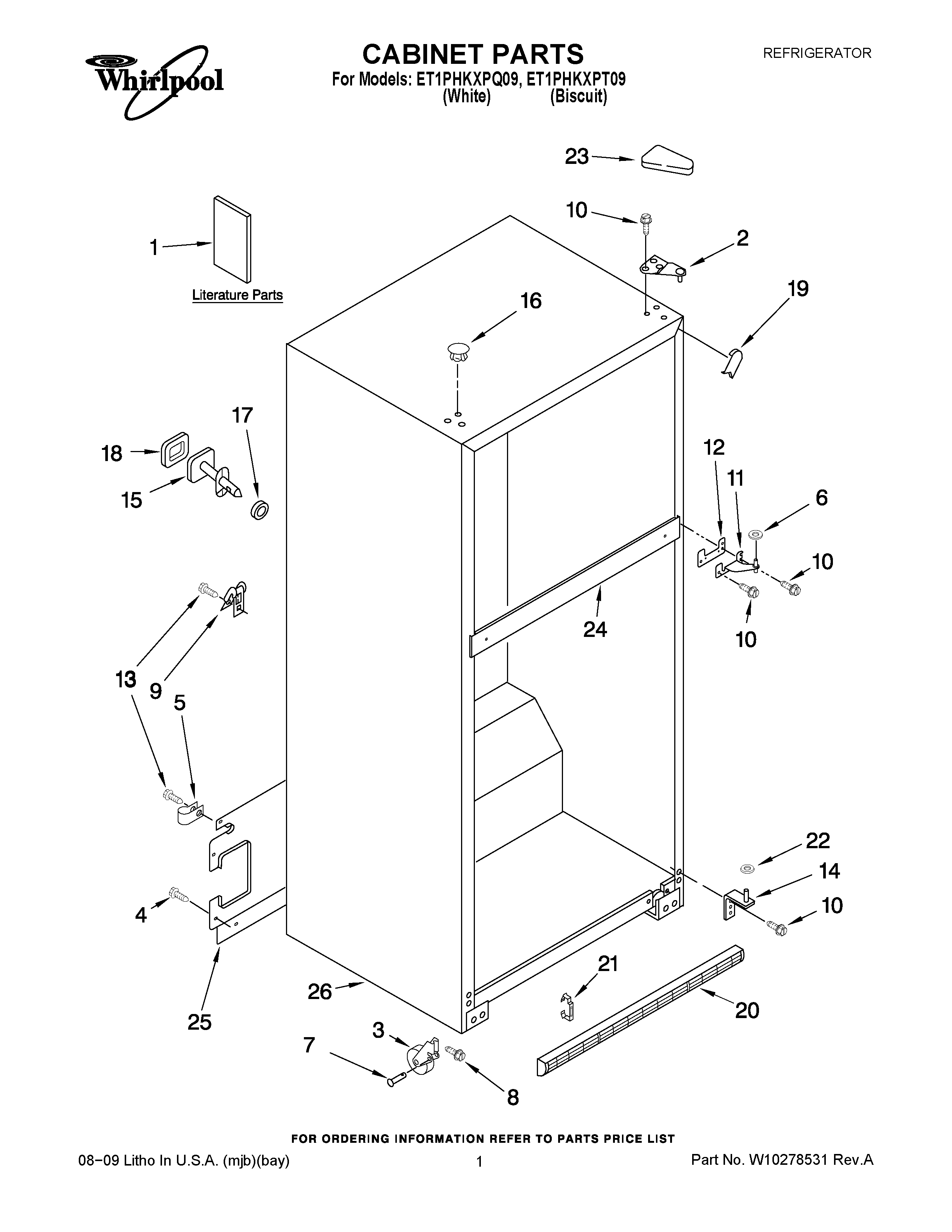

ET1PHKXPT09 01 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Service & Wiring Sheet
1USE & CARE GUIDE (BILINGUAL)
1USE & CARE GUIDE (TRILINGUAL)
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489427 Whirlpool Refrigerator Screw
5WP488366 Whirlpool Refrigerator Clamp
6WP489467 Whirlpool Hinge Shim
7W11594405 Whirlpool Axle
8WP3400504 Whirlpool Refrigerator Screw
9549193 Whirlpool Refrigerator Power Clamp
10WP489497 Whirlpool Screw
11WP2254618 Whirlpool Center Door Hinge
12WP2183852 Whirlpool Refrigerator Shim
13WP489464 Whirlpool Refrigerator Screw
14WP2254473 Whirlpool Refrigerator Door Hinge
16WP2151652 Whirlpool Refrigerator Button Plug
16Hole Plug (6) (Biscuit)
19WPW10283959 Whirlpool Refrigerator Filler
19W10283958 Whirlpool Refrigerator Filler
20Grille (Biscuit)
20Grille (White)
21CLIP, GRILLE
22WP487576 Whirlpool Washer
232213364 Whirlpool Refrigerator Cover
23WP2213360 Whirlpool Refrigerator Cover
25Cover, Unit
26CABINET (NOT A SERVICEABLE PART)
