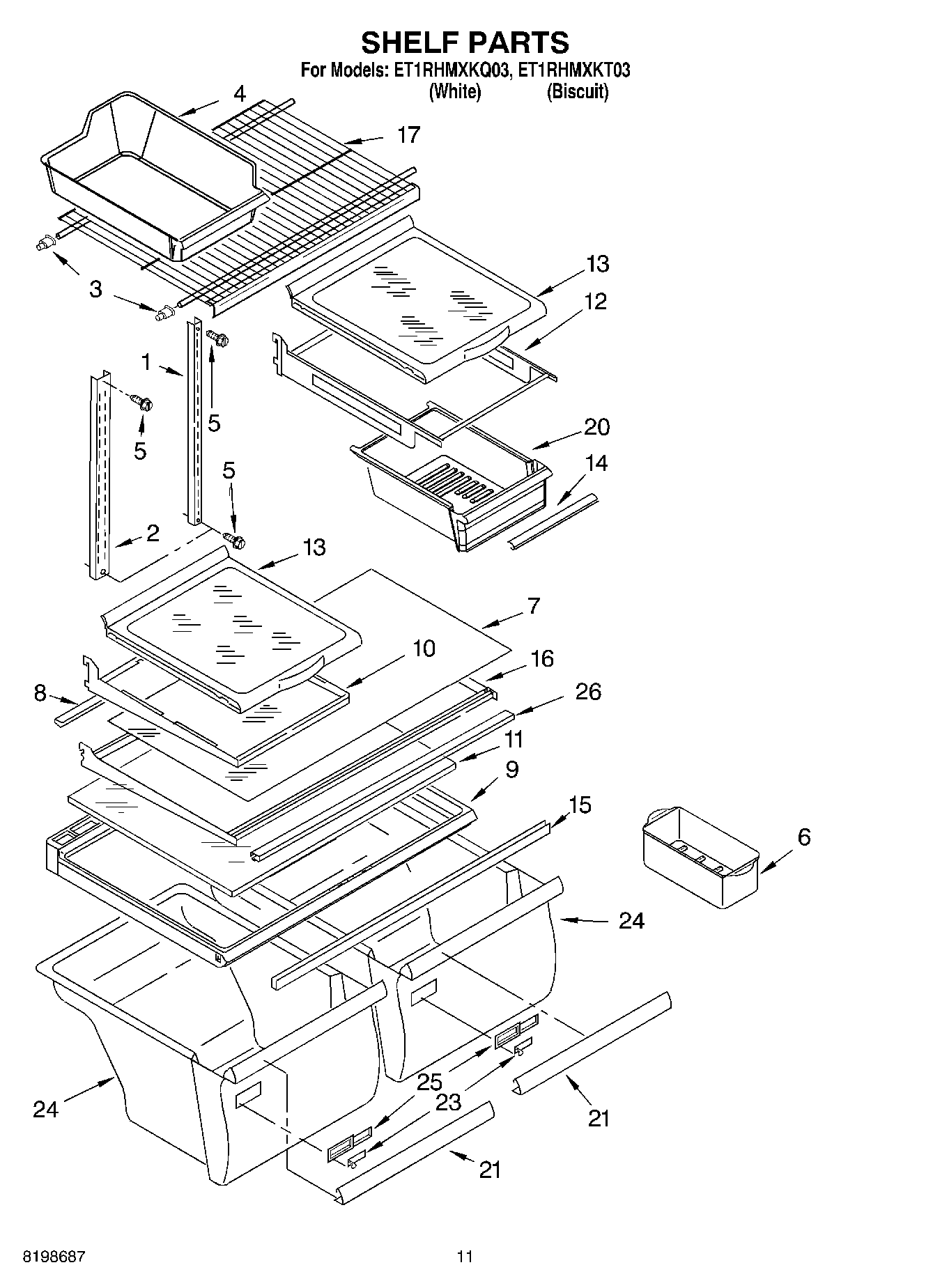

ET1RHMXKT03 06 – SHELF PARTS, OPTIONAL PARTS

ET1RHMXKT03 06 – SHELF PARTS, OPTIONAL PARTS

Written by

in

ET1RHMXKT03 06 – SHELF PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
WPL ARI48396A4
WPL ARI48395A3
WPL ARI48394A1
WPL ARI48398A5
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
WP542638 Whirlpool Refrigerator Grease
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI48397A1
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
Door Reversal Instructions
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
1Shelf, Ladder (2)
2Shelf, Ladder
32163762 Whirlpool Refrigerator Cup Assembly
42254352A Whirlpool Refrigerator Ice Container
5WP489478 Whirlpool Refrigerator Screw
6W10136387A Whirlpool Refrigerator Egg Container
7Glass, Full Shelf
8WP2188689 Whirlpool Refrigerator Shelf Trim
9WP2314549 Whirlpool Refrigerator Cover
10Frame Assembly, Shelf
11WP2176225 Whirlpool Glass Shelf
12Frame Assembly, Meat Shelf
13WP999520 Whirlpool Refrigerator Glass Shelf
14Trim, Meat Pan
15WP2172748 Whirlpool Drawer Support
16Shelf, Full Cantilever
17Shelf, Freezer
20WP2218132K Whirlpool Crisper Meat Pan
21WP2195341 Whirlpool Refrigerator Pan Trim
23WP2176222 Whirlpool Refrigerator Slide
24W10854037 Whirlpool Refrigerator Crisper Pan
25WP2212446 Whirlpool Refrigerator Control Body
26Trim, Shelf (Front)
