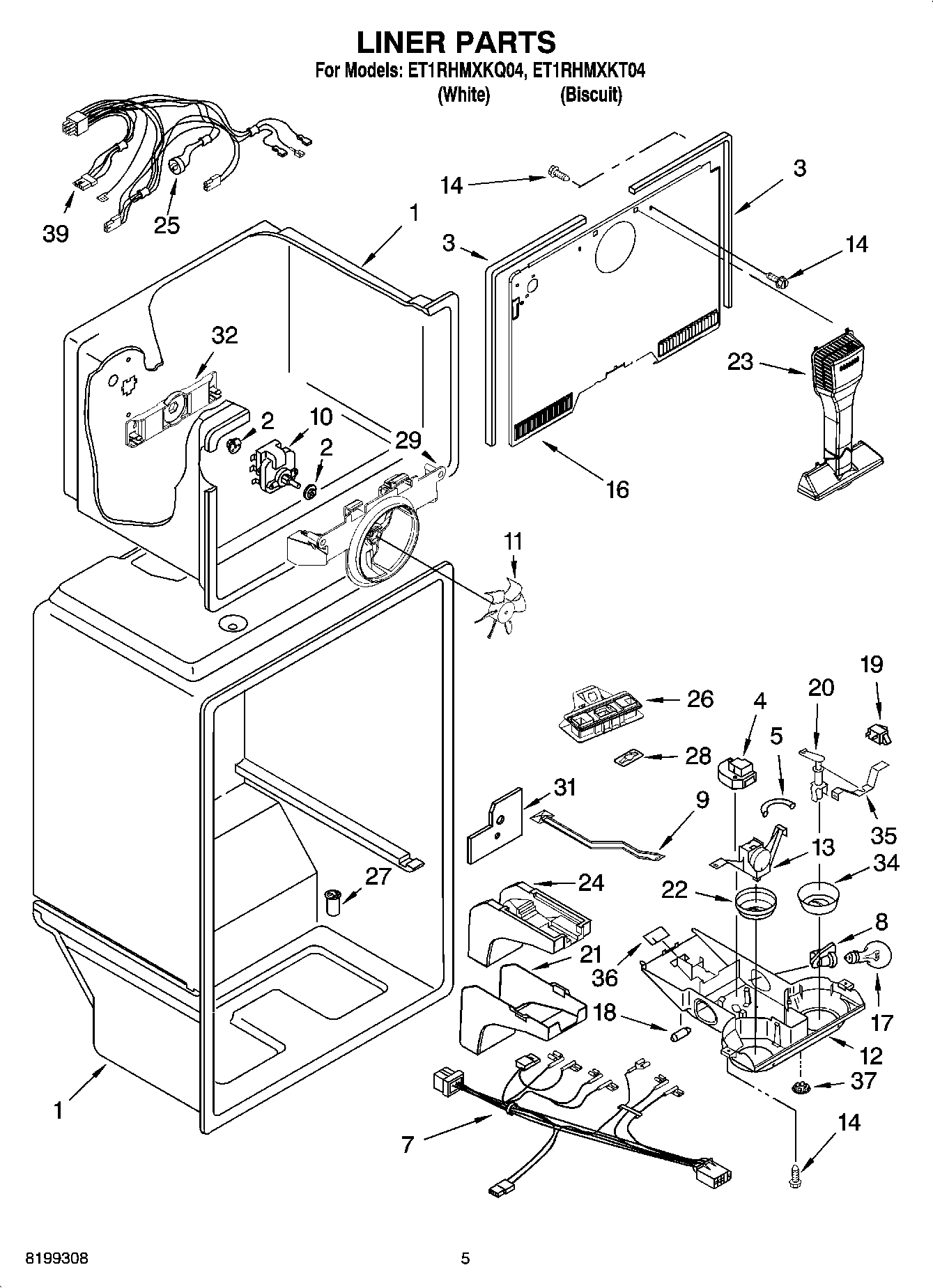

ET1RHMXKT04 03 – LINER PARTSadmin2025-04-26T12:09:08+00:00ET1RHMXKT04 03 – LINER PARTS
Products
| Position | Product |
|---|
| 1 | Liner (Not A Serviceable Part) |
| 2 | WP2264462 Whirlpool Refrigerator Grommet |
| 3 | WP2254360 Whirlpool Refrigerator Gasket |
| 4 | Defrost Timer |
| 5 | Thermostat Tube Barrier |
| 7 | 2310174 Whirlpool Refrigerator Wire Harness |
| 8 | 4387478 Whirlpool Refrigerator Light Socket |
| 9 | Damper, Air |
| 10 | WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor |
| 11 | WP2163777 Whirlpool Refrigerator Fan Blade |
| 12 | Control Box |
| 13 | Thermostat Assy. (Includes Items 5, 18 & 36) |
| 14 | WP489478 Whirlpool Refrigerator Screw |
| 16 | Cover, Evaporator |
| 17 | RANGE ONLY 40W 120V APPL BULB |
| 18 | Weight, Thermal |
| 19 | W11384469 Whirlpool Door Switch |
| 20 | Post, Damper |
| 21 | Cover, Air Diffuser |
| 22 | W10829461 Whirlpool Refrigerator Thermal Knob |
| 23 | WP2254354 Whirlpool Refrigerator Air Tower |
| 24 | WP2189452 Whirlpool Refrigerator Diffuser |
| 25 | WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat |
| 26 | Air Separator Assembly |
| 27 | WP2210509 Whirlpool Refrigerator Tub Valve |
| 28 | Clip, Defrost Timer |
| 29 | BRACKET, FAN MOTOR |
| 31 | Shield, heat |
| 32 | 2254454 Whirlpool Refrigerator Bracket |
| 34 | Knob, Damper |
| 35 | Bracket, Damper Knob |
| 36 | WP2205079 Whirlpool Refrigerator Seal |
| 37 | 940014 Whirlpool Refrigerator Primary Button Plug |
| 39 | Wire Assembly, Freezer Compartment (Includes Illus. 41) |
