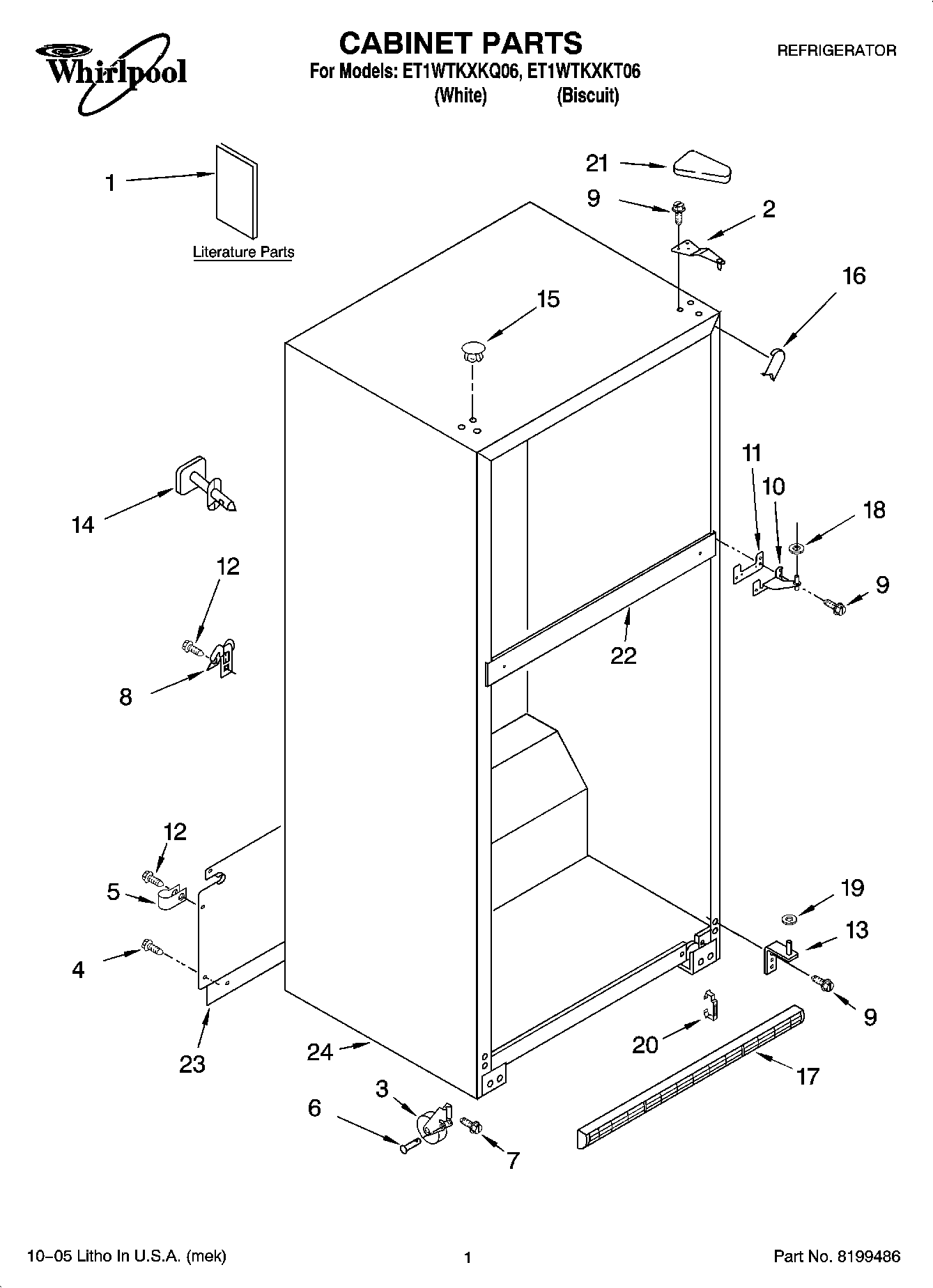

ET1WTKXKT06 01 – CABINET PARTS

Products

Position	Product
1	Customer Instructions
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Energy Label
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Use & Care Guide
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	WP489427 Whirlpool Refrigerator Screw
5	WP488366 Whirlpool Refrigerator Clamp
6	W11594405 Whirlpool Axle
7	WP3400504 Whirlpool Refrigerator Screw
8	549193 Whirlpool Refrigerator Power Clamp
9	WP489497 Whirlpool Screw
10	WP2254618 Whirlpool Center Door Hinge
11	WP2183854 Whirlpool Refrigerator Shim
12	WP489464 Whirlpool Refrigerator Screw
13	WP2254473 Whirlpool Refrigerator Door Hinge
14	Fitting, Water Tube (Not Serviced)
15	WP2151652 Whirlpool Refrigerator Button Plug
15	Hole Plug (6) (Biscuit)
16	WPW10283959 Whirlpool Refrigerator Filler
16	W10283958 Whirlpool Refrigerator Filler
17	Grille (Biscuit)
17	Grille (White)
18	WP489467 Whirlpool Hinge Shim
19	WP487576 Whirlpool Washer
20	CLIP, GRILLE
21	2213364 Whirlpool Refrigerator Cover
21	WP2213360 Whirlpool Refrigerator Cover
22	Rail Center (Not Serviced)
23	Cover, Unit
24	Cabinet (Not A Serviceable Part)
