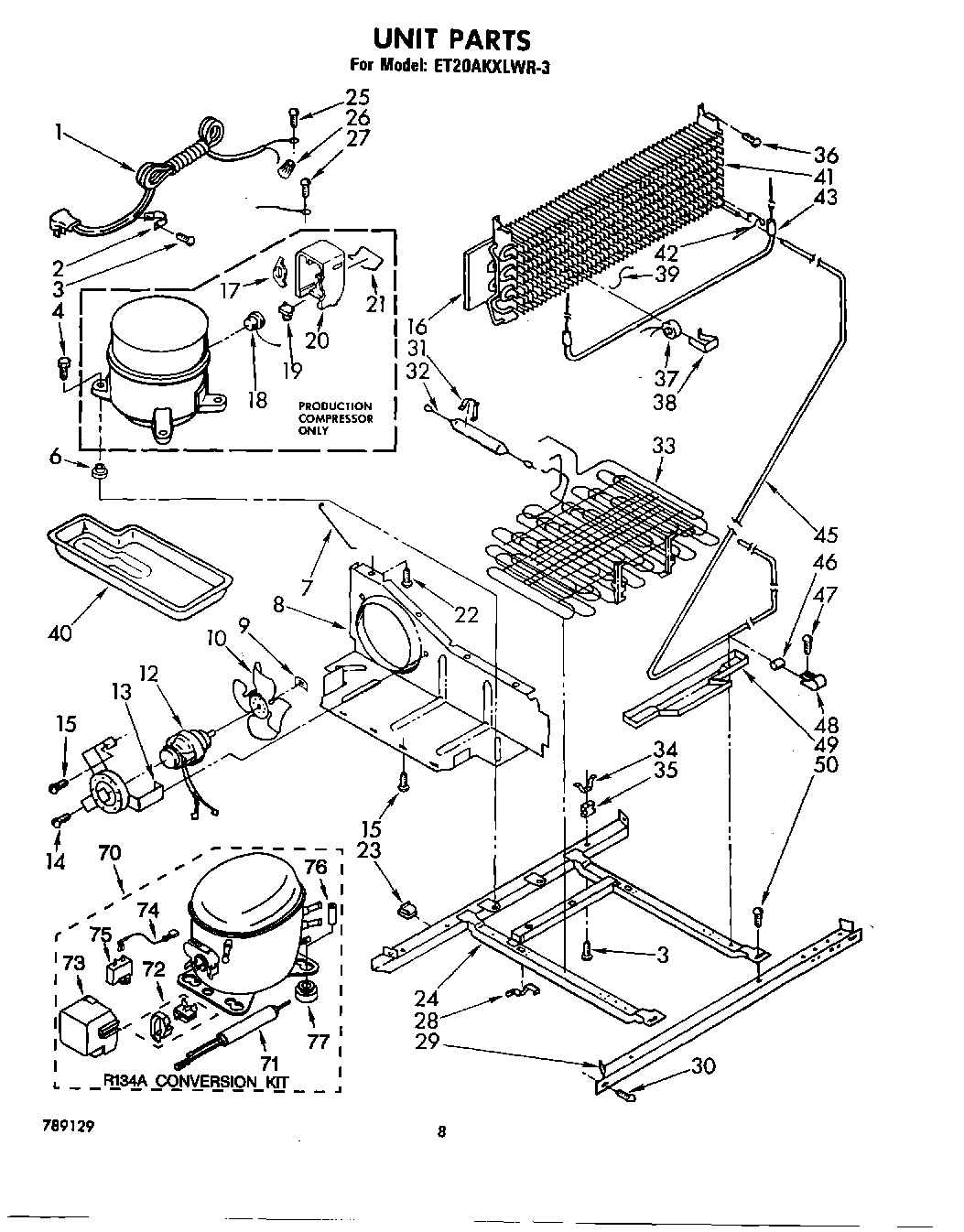

ET20AKXLWR3 05 – UNIT

Products

Position	Product
1	Cord, Service
2	549193 Whirlpool Refrigerator Power Clamp
3	W11624204 Whirlpool Screw
6	876811 Whirlpool Grommet
7	Guard, Fan
8	Baffle
9	WP486692 Whirlpool Refrigerator Nut
10	Fan, Blade
12	833697 Whirlpool Condenser Fan Motor
13	Bracket, Motor
14	Screw, 8-36 x 3/8 (3)
15	Screw, 8 x 3/8
16	Baffle, Air
17	Overload Spring
18	Overload
19	Relay
20	Case, Relay
21	Spring, Case
22	Screw, 8-32 x 1/2
23	Clip, Wire (2)
24	Frame
25	Screw, 8-32 x 3/8
26	Wire Connector
27	303776 Whirlpool Dishwasher Screw
28	Clip (2)
29	Rail, Front
30	489340 Whirlpool Refrigerator Screw
31	Clamp
33	Condenser & Precooler
34	Clamp (4)
35	Grommet (4)
36	W11693756 Whirlpool Screw Assembly
37	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
38	Clamp
39	Support, Heater
40	WPL 842041
41	Evaporator
42	Clip, Heater (2)
43	Heater, Defrost
45	Exchanger, Heat
46	Dampener (2)
47	WPW10141625 Whirlpool Refrigerator Screw Assembly
48	Clamp Tube
49	Pan, Drip
50	Screw, 1/4-28 x 1/2 (2)
70	876765 Whirlpool Primary Mounting Kit Refrigerator
70	Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) (Also Order
71	W10843121 Whirlpool Refrigerator Tube
72	OVERLOAD
73	WP2162358 Whirlpool Refrigerator Terminal Cover
74	WP2172890 Whirlpool Refrigerator Wire
75	WP4387764 Whirlpool Run Capacitor
76	Sleeve (4) (Service Only)
77	876764 Whirlpool Refrigerator Primary Valve
77	WP4387558 Whirlpool Refrigerator Compressor Grommet
77	VALVE, ACCESS (1/2“)
77	978030 Whirlpool Refrigerator Valve
77	VALVE, ACCESS (5/8“)
77	978027 Whirlpool Refrigerator Primary Valve
77	978026 Whirlpool Refrigerator Primary Valve
77	WPL 97802
