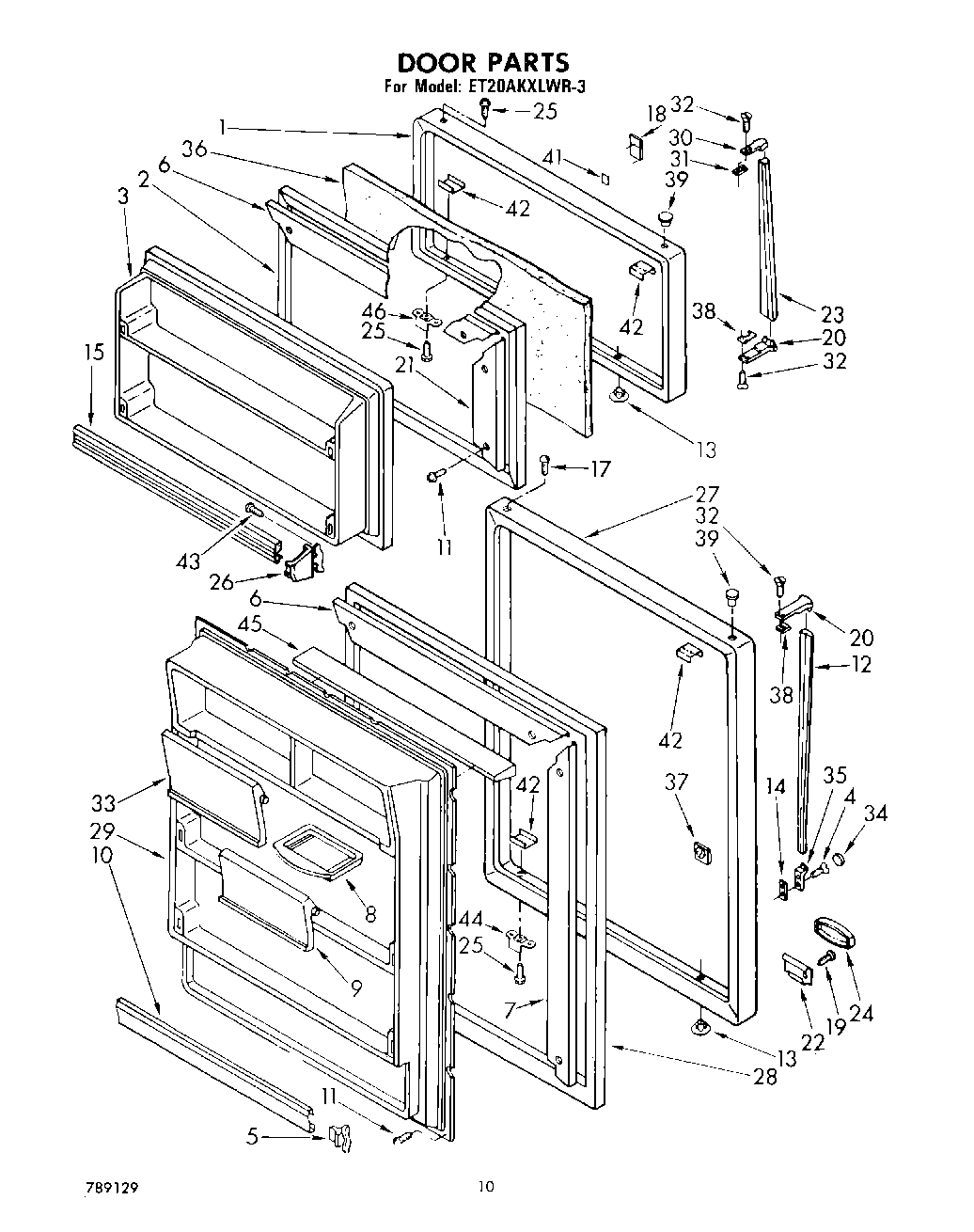

ET20AKXLWR3 06 – DOOR, LIT/OPTIONAL

ET20AKXLWR3 06 – DOOR, LIT/OPTIONAL

Written by

in

ET20AKXLWR3 06 – DOOR, LIT/OPTIONAL

Products

PositionProduct
1Door, Freezer (Also Order Item 36) (Coffee)
1Door, Freezer (Also Order Item 36) (Almond)
1Freezer Door (Toast)
1Door, Freezer (Also Order Item 36) (New Avocado)
1Door, Freezer (Also Order Item 36) (White)
1Freezer Door (Platinum) (Also Order Item 41 When Replacing Door)
1Door, Freezer (Also Order Item 36) (Golden Harvest)
22188460A Whirlpool Refrigerator Door Gasket
3Panel, Interior (For Platinum Model Only)
3Panel, Interior
4WP488729 Whirlpool Refrigerator Door Screw
5WP839904 Whirlpool Refrigerator Endcap Trim
6Retainer, Gasket Top
7Retainer, Gasket Side
9Door, Butter
10Trim, Door Shelf
11W11624204 Whirlpool Screw
11SCREW
12Handle, Center
13Hole Plug (2)
14Shim, Handle End
15Trim, Shelf (2)
17WP8281206 Whirlpool Refrigerator Screw
18Nameplate
20WP2191883 Whirlpool Refrigerator Handle Endcap
21Retainer Gasket Side
22Clip, Medallion
23WPL 982944
24Medallion (White)
24Medallion (Coffee)
24Medallion (Golden Harvest)
24Medallion (Almond)
24Medallion (New Avocado)
24Medallion (Platinum)
24Medallion (Toast)
25Screw (Repair)
25WP488921 Whirlpool Refrigerator Screw
26Retainer, Trim (For Platinum Model
26WPL 943135
27Door, Refrigerator (Toast)
27Door, Refrigerator (New Avocado)
27Door, Refrigerator (Almond)
27Refrigerator Door (Platinum)
27Door, Refrigerator (Golden Harvest)
27Door, Refrigerator (Coffee)
27Door, Refrigerator (White)
282188450A Whirlpool Refrigerator Door Gasket
29Interior Panel
29Panel, Interior
30WP2191882 Whirlpool Refrigerator Handle End Cap
31Shim, Handle
32WP488920 Whirlpool Refrigerator Screw
32Screw (Repair)
33WPL 935209
34WP1101634 Whirlpool Refrigerator Cover
35WP2183139 Whirlpool Refrigerator Handle End Cap
37WP939101 Whirlpool Refrigerator Plate
38Spa
39Hole Plug (Toast)
39Hole Plug (Platinum)
39Hole Plug (New Avocado)
39Hole Plug (Coffee)
39WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
39Hole Plug (Almond)
41Tape Strip
42W10833053 Whirlpool Refrigerator Plate
44Bracket, Door Stop
45Support, Door Dike
4672017 Whirlpool Appliance Touch-Up Paint White
46WPL 28536
4672113 Whirlpool Touch-Up Paint
46WPL 946866
46WPL 943167
4672110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
46350930 Whirlpool White Spray Paint
46WPL 799351
46Leveler (Thinner)
46Almond (Uncut)
46350956 Whirlpool Spray Assembly
46WPL 946646
46WP72107 Whirlpool Touchup
46799344 Whirlpool Refrigerator Paint
46Golden Harvest (Uncut)
46Golden Harvest
46Toast
46WP503695 Whirlpool Refrigerator Sealer
46TAPE, VINYL (3/4 X 108“)
46WP505587 Whirlpool Refrigerator Sealer
46paint, spray 13 oz. (coffee)
46Paint, Touch-Up 1/2 Oz. (Coffee)
4672109 Whirlpool Dacor Avocado Touch-Up Paint
4672032 Whirlpool Touch Up Paint Black
46WP542638 Whirlpool Refrigerator Grease
46WPL 876029
46WPL 799833
46Enamel, Black (1 Qt. Uncut)
46876370 Whirlpool Refrigerator Insulation
46606755 Whirlpool Refrigerator Bag
46511873 Whirlpool Refrigerator Paint
46Paint, Spray (13 Oz.) (Platinum)
46Platinum (Uncut)
46WPL 72112
46212643 Whirlpool Refrigerator Permagum Sealer
46WPL 942935
46350942 Whirlpool Spray Paint
46Enamel, New Avocado (1 Qt. Uncut)
46Enamel, Coffee (1 Qt. Uncut)
46Bracket, Door Stop
46285006 Whirlpool Spray
46Paint, Spray 13 Oz. (Avocado)
46CEMENT, ALUMILASTIC (1 1/4 OZ.)
