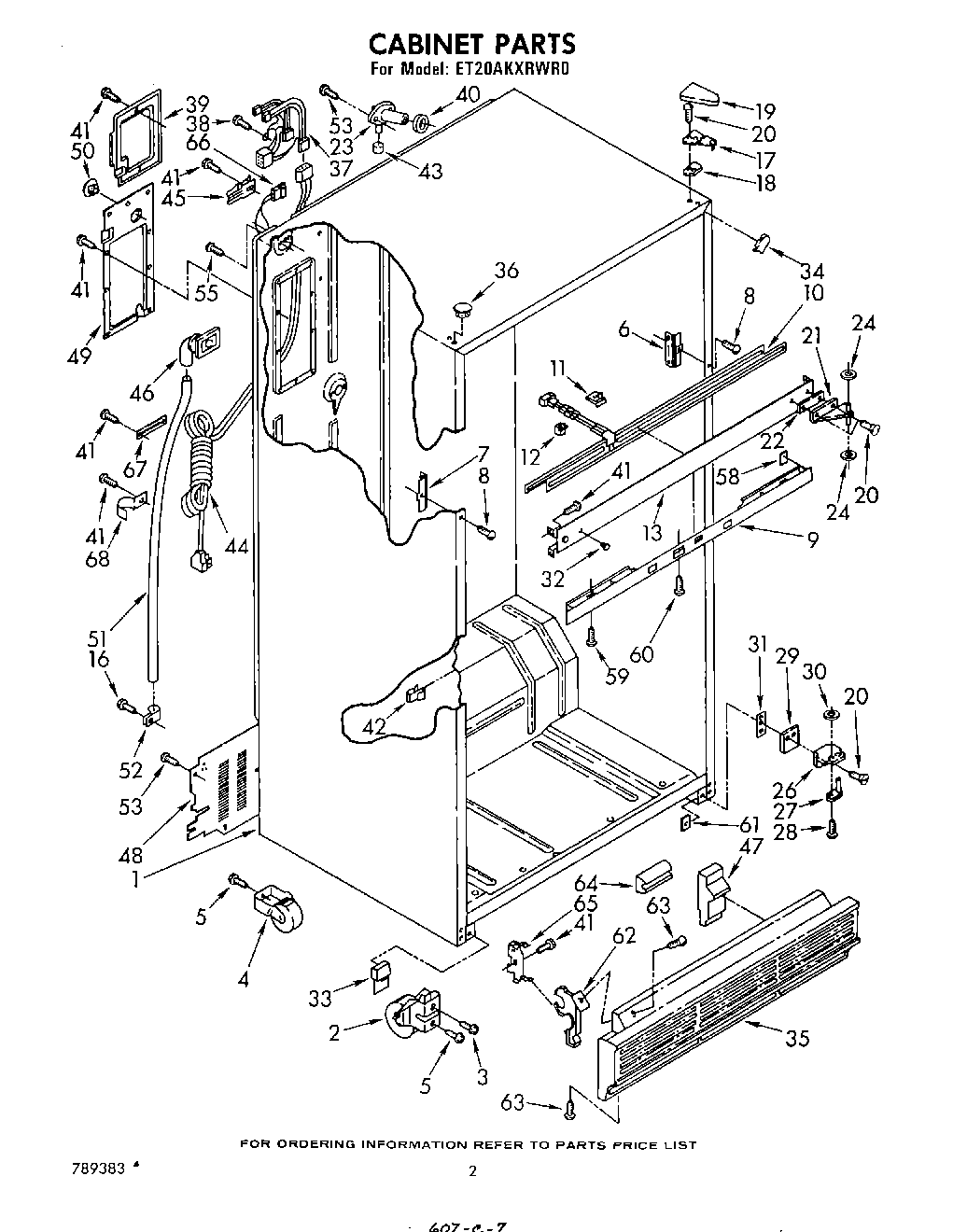

ET20AKXRWR0 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Mounting, Bracket Mullion (R.S)
7	Mounting, Bracket Mullion (L.S)
8	WP488729 Whirlpool Refrigerator Door Screw
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Mullion (3)
12	Spacer (2)
13	Center Rail (Platinum)
13	Center Rail (Toast)
13	Center Rail (Golden Harvest)
13	Center Rail (Almond)
13	Center Rail (White)
17	Shim, Hinge Top
18	Shim, Hinge
19	Hinge Cover (Golden Harvest)
19	1119787 Whirlpool Refrigerator Hinge Cover
19	Hinge Cover (Toast)
20	WP999367 Whirlpool Refrigerator Screw
20	Screw (Repair)
21	Hinge, Center
22	Shim, Hinge Center
22	Shim, Center (Repair)
23	WP2196157 Whirlpool Fill Tube
24	WP488296 Whirlpool Washer Refrigerator
26	Hinge, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom Hinge
30	WP487802 Whirlpool Refrigerator Washer
31	Spacer, Hinge
32	Hole Plug (Golden Harvest)
32	Plug, Hole (2) (Toast)
32	Hole Plug (2) (Platinum)
32	Hole, Plug (White)
32	Hole, Plug (Almond)
33	Corner Filler, Grille (Almond)
33	Corner Filler, Grille (Golden Harvest)
33	Corner Filler, Grille (White)
33	Corner Filler, Gri
33	Corner Filler, Grille (Platinum)
34	WPL 1105399
34	WPL 1105398
34	WPL 1105401
34	WPL 1105402
34	WPL 1105400
35	WPL 1105489
35	WPL 1105494
35	WPL 1105492
35	WPL 1105493
35	WPL 1105491
36	Hole Plug (2) (Almond)
36	Hole Plug (2) (Golden Harvest)
36	Hole Plug (3) (Platinum)
36	Hole Plug (3) (Toast)
36	Hole Plug (2) (White)
37	WPL 1105690
38	WP250830 Whirlpool Refrigerator Screw
39	Cover, Wiring
40	WP1106508 Whirlpool Refrigerator Gasket
41	W11624204 Whirlpool Screw
42	W10812038 Whirlpool Refrigerator Clip
43	WP487996 Whirlpool Refrigerator Cap Tube
44	Cord, Service
45	Clamp
46	Fitting, Drain
47	WPL 836372
48	Cover, Unit
49	Cover, Plug
50	WPL 655411
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 836077
55	WP489069 Whirlpool Compactor Screw
58	WPL 1106844
59	WP488163 Whirlpool Refrigerator Screw
61	Tap Plate
62	WP944224 Whirlpool Refrigerator Support
63	WPL 489085
64	Bumper, Grille
65	WPL 989068
66	WP717253 Whirlpool Dishwasher Connector
67	Tube Clamp (2)
68	WPL 843878
