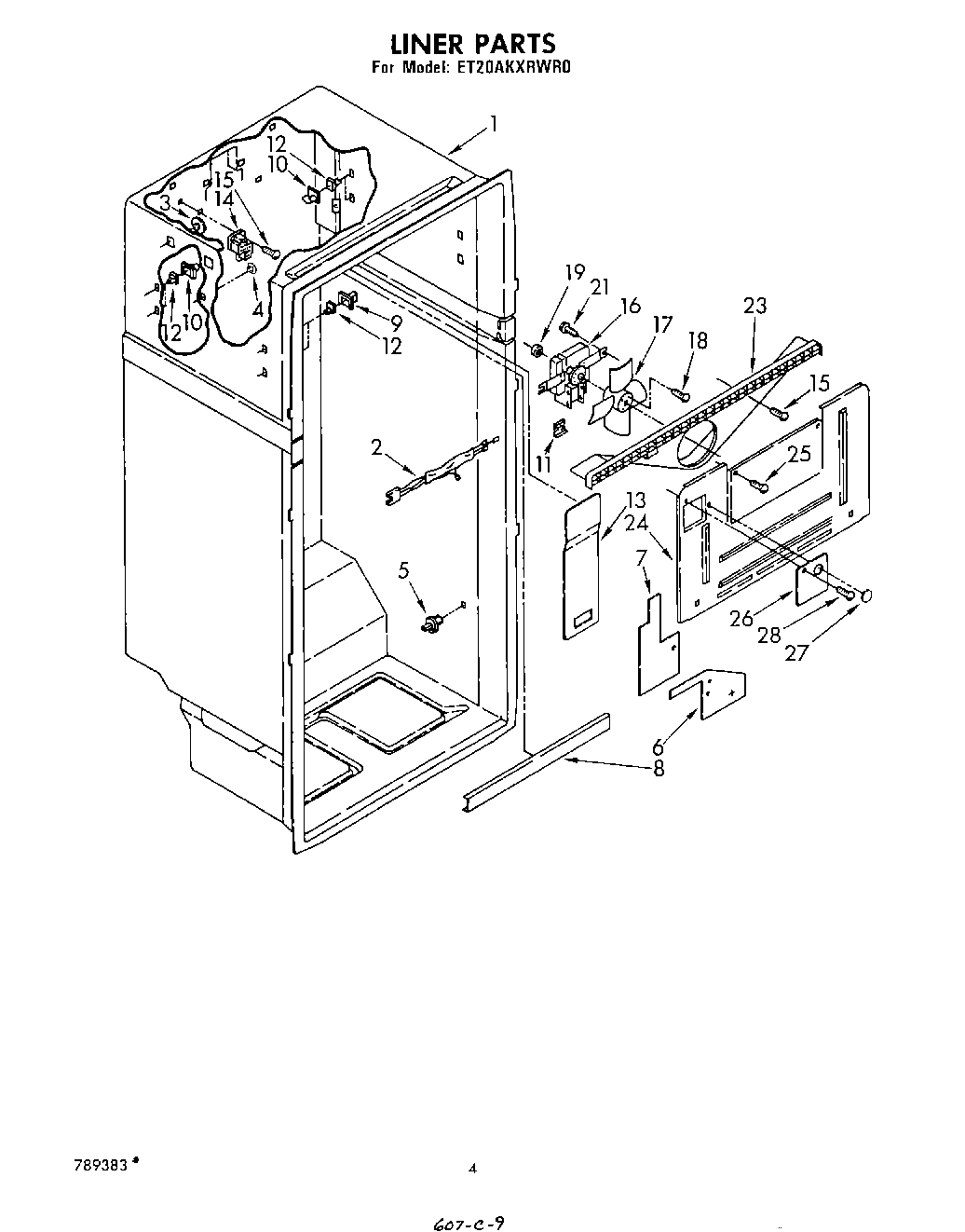

ET20AKXRWR0 03 – LINER

ET20AKXRWR0 03 – LINER

Written by

in

ET20AKXRWR0 03 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Wiring, Fan Motor
3Hole Plug (2)
4WP941839 Whirlpool Refrigerator Button Plug
5W10854959 Whirlpool Refrigerator Shelf Stud
6Electrical, Shield
7Electrical Shield
8Electrical, Shield
9Stud, Front R.S.
10819091 Whirlpool Refrigerator Shelf Stud
11Screw, Anchor
12Stud, Support
13Cover, Air Duct
14Terminal Block, Multiple
15W11624204 Whirlpool Screw
16482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17WP1100938 Whirlpool Refrigerator Fan Blade
18WP487887 Whirlpool Refrigerator Screw
19Grommet
21Screw (2)
23Scroll, Fan
24Evaporator Cover
25Screw, 8-15 x 1/2 (4)
26WP2217784 Whirlpool Refrigerator Cover
27Hole Plug
28WP488729 Whirlpool Refrigerator Door Screw
