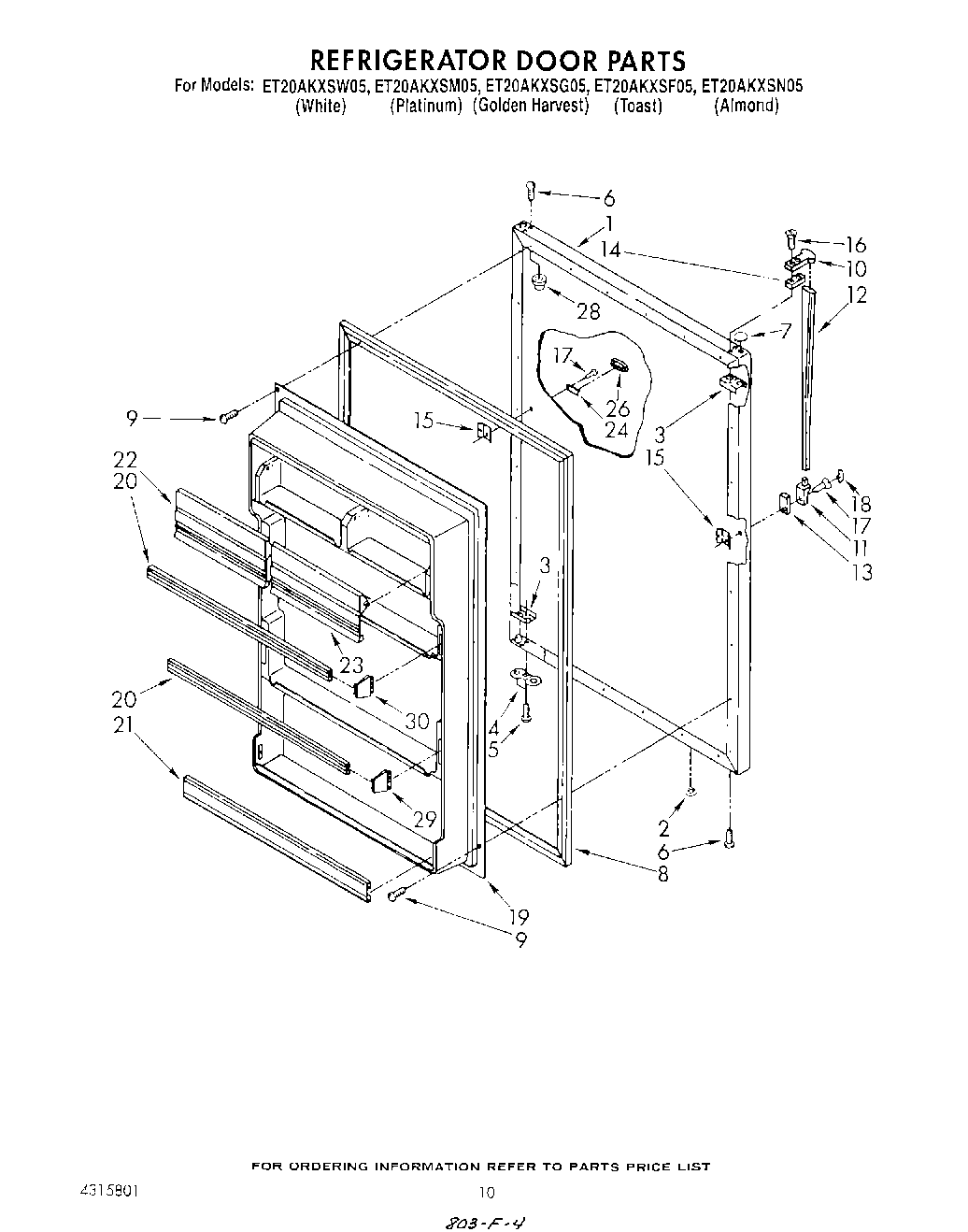

ET20AKXSW05 08 – REFRIGERATOR DOOR , LIT/OPTIONAL

ET20AKXSW05 08 – REFRIGERATOR DOOR , LIT/OPTIONAL

Written by

in

ET20AKXSW05 08 – REFRIGERATOR DOOR , LIT/OPTIONAL

Products

PositionProduct
WPL LIT1114037
Torx Key
WPL LIT4315801
WPL LIT1118773
WPL LIT1114467
1Panel, Refrigerator Door (Almond)
1Panel, Refrigerator Door (Golden Harvest)
1Panel, Refrigerator Door (Toast)
1Panel, Refrigerator Door (Platinum) (Also Order Item 23)
1Panel, Refrigerator Door (White)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6Screw (Repair)
7Hole Plug (Almond)
7Hole Plug (Toast)
7Hole Plug (Platinum)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82188450A Whirlpool Refrigerator Door Gasket
9WP489069 Whirlpool Compactor Screw
10WP2191883 Whirlpool Refrigerator Handle Endcap
11WP2183139 Whirlpool Refrigerator Handle End Cap
12Handle, Center
12Handle, Center (Golden Harvest)
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16Screw (Repair)
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
20Trim, Door (2)
21Trim, Door
22Compartment Door, Utility
23Compartment, Butter Door
24Clip, Medallion
26Medallion
28Cap, Hinge Sleeve (2)
294318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
30Paint, Spray (13 Oz.) (Platinum)
30Leveler (Thinner)
30WP72107 Whirlpool Touchup
30350942 Whirlpool Spray Paint
30WP503695 Whirlpool Refrigerator Sealer
30876370 Whirlpool Refrigerator Insulation
3072113 Whirlpool Touch-Up Paint
30799344 Whirlpool Refrigerator Paint
3072017 Whirlpool Appliance Touch-Up Paint White
30WP505587 Whirlpool Refrigerator Sealer
30833938 Whirlpool Refrigerator Terminal
30606755 Whirlpool Refrigerator Bag
30511873 Whirlpool Refrigerator Paint
30350956 Whirlpool Spray Assembly
30350930 Whirlpool White Spray Paint
30Almond (Uncut)
30212643 Whirlpool Refrigerator Permagum Sealer
30Enamal, Toast (1 Qt. Uncut)
30Toast
30Platinum (Uncut)
30WP542638 Whirlpool Refrigerator Grease
30WPL 72112
30WPL 876029
30WPL 799833
304386917 Whirlpool Endcap Kit
30Golden Harvest (Uncut)
30Golden Harvest
30CEMENT, ALUMILASTIC (1 1/4 OZ.)
3072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
30TAPE, VINYL (3/4 X 108“)
30285006 Whirlpool Spray
3072032 Whirlpool Touch Up Paint Black
