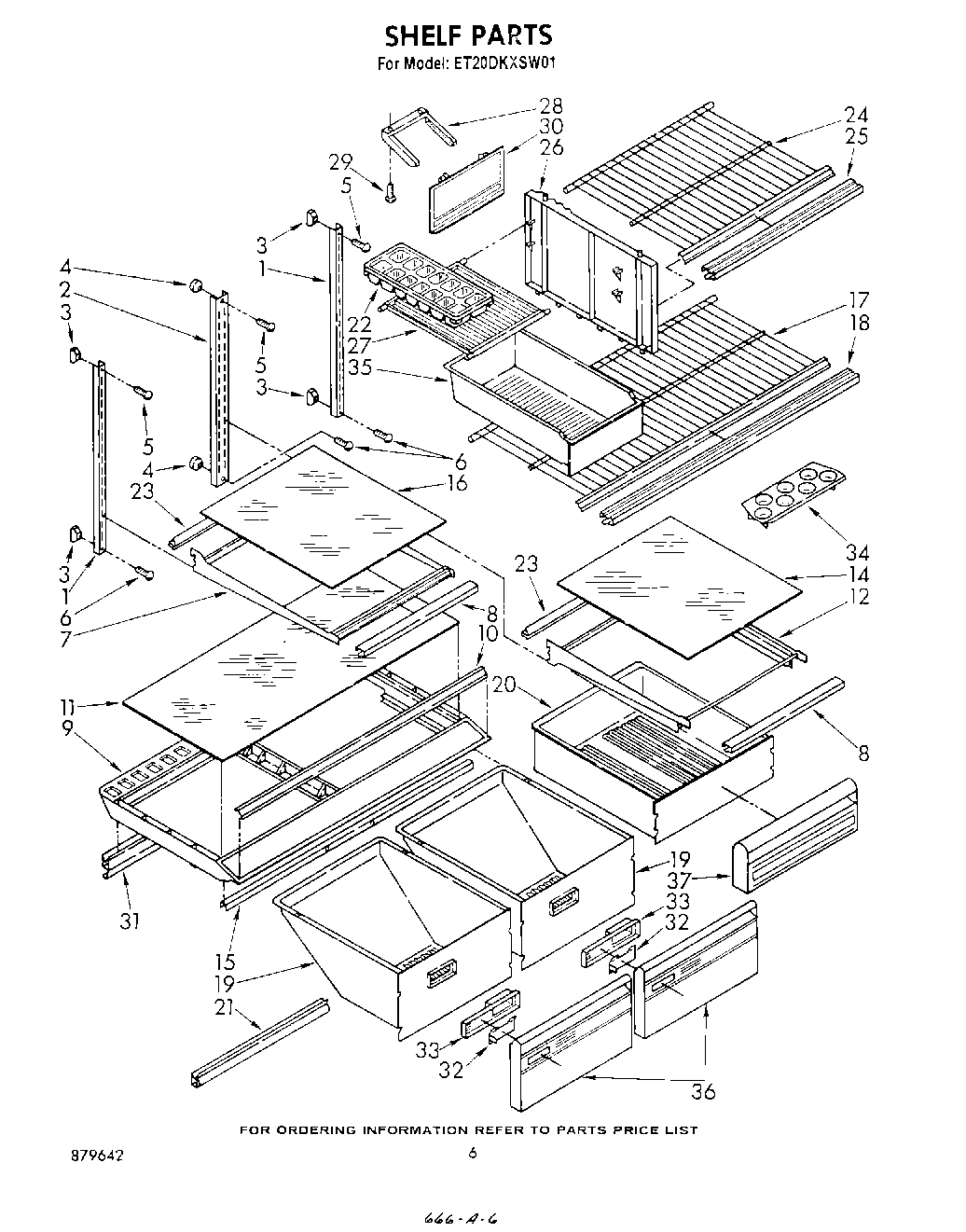

ET20DKXSW01 05 – SHELF, LIT/OPTIONAL

ET20DKXSW01 05 – SHELF, LIT/OPTIONAL

Written by

in

ET20DKXSW01 05 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT879642
	WPL LIT1114467
	WPL LIT1108203
	WPL LIT1114061
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Screw Support, Center Ladder (2)
5	Screw (Repair)
5	Screw, 8-32 x 1-1/4 (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (3)
8	Trim, Shelf
9	WP2151749 Whirlpool Refrigerator Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
14	Glass, Meat Cover
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Glass
17	Shelf, Freezer
18	Trim, Shelf Front
19	Pan, Crisper
20	Pan, Meat
21	Gasket-Front
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Reflector, Shelf
24	Shelf, Freezer (Top)
25	Trim, Shelf
26	Divider
27	Shelf, Ice Compartment (2)
28	Slide, Ice Compartment
29	W11624204 Whirlpool Screw
30	Door, Ice Compartment
31	Gasket, Rear
32	Slide, Humidity Control
33	Housing, Humidity Control
34	Tray, Egg (2)
35	PAN-ICE
36	Crisper, Pan Front
37	Golden Harvest (Uncut)
37	Toast
37	Paint, Spray (13 Oz.) (Platinum)
37	Enamal, Toast (1 Qt. Uncut)
37	Platinum (Uncut)
37	Golden Harvest
37	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
37	72113 Whirlpool Touch-Up Paint
37	Almond (Uncut)
37	Meat Pan, Front
37	Leveler (Thinner)
37	WP72107 Whirlpool Touchup
37	799344 Whirlpool Refrigerator Paint
37	72017 Whirlpool Appliance Touch-Up Paint White
37	WPL 72112
37	212643 Whirlpool Refrigerator Permagum Sealer
37	285006 Whirlpool Spray
37	72032 Whirlpool Touch Up Paint Black
37	WPL 876029
37	WPL 799833
37	WPL 799832
37	Silicone (Spray)
37	CEMENT, ALUMILASTIC (1 1/4 OZ.)
37	WP542638 Whirlpool Refrigerator Grease
37	WP505587 Whirlpool Refrigerator Sealer
37	WP503695 Whirlpool Refrigerator Sealer
37	876370 Whirlpool Refrigerator Insulation
37	TAPE, VINYL (3/4 X 108“)
37	833938 Whirlpool Refrigerator Terminal
37	606755 Whirlpool Refrigerator Bag
37	511873 Whirlpool Refrigerator Paint
37	350942 Whirlpool Spray Paint
37	350930 Whirlpool White Spray Paint
37	350956 Whirlpool Spray Assembly
