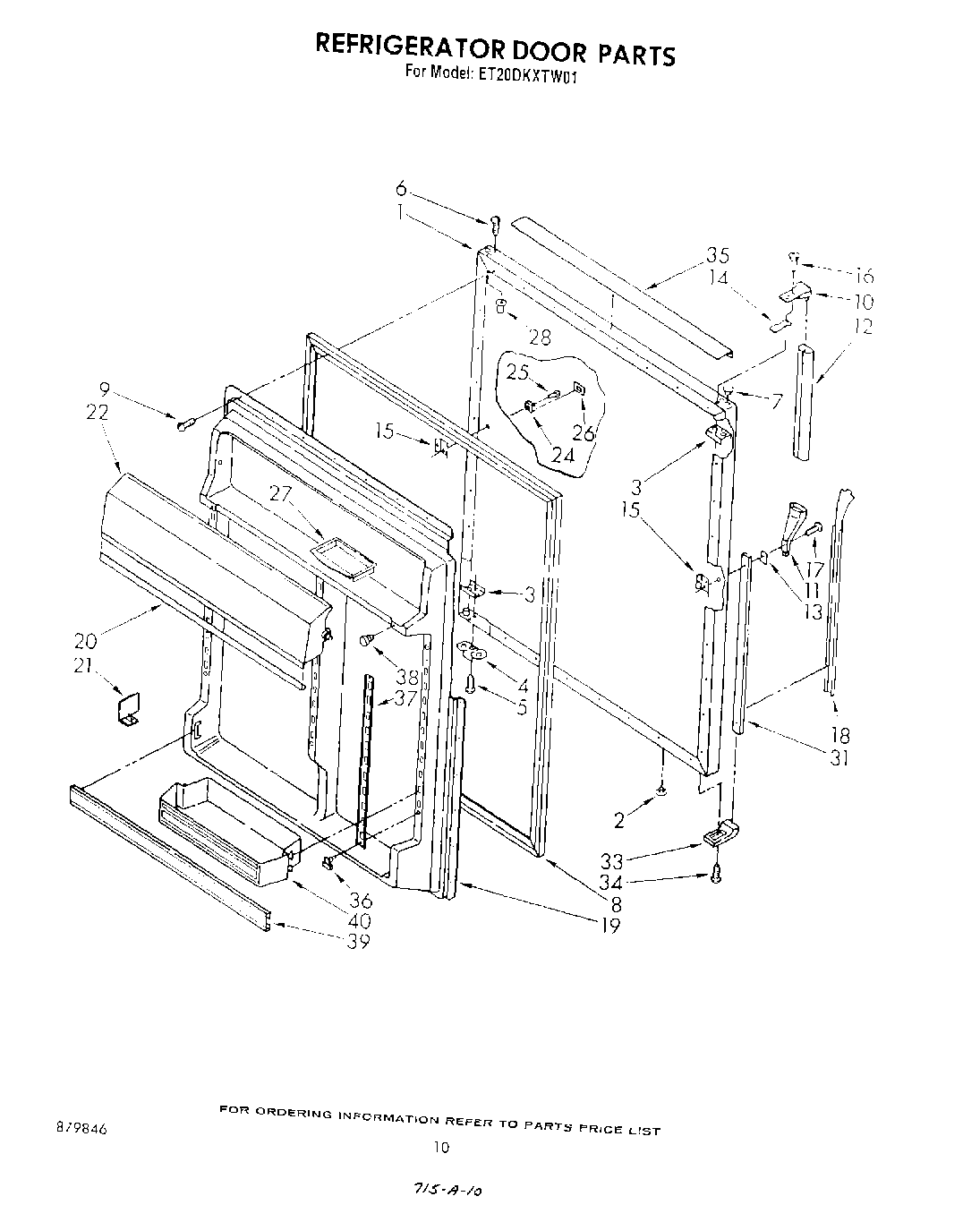

ET20DKXTF01 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Toast)
1	Panel, Refrigerator Door (Platinum) (Also Order Item 23)
1	Panel, Refrigerator Door (Golden Harvest)
1	Panel, Refrigerator Door (White)
1	Panel, Refrigerator Door (Almond)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
6	Screw (Repair)
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	Hole Plug (Toast)
7	Hole Plug (Platinum)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End, Side
12	Handle, Center
12	Handle, Center (For Platinum Model Only)
13	Shim
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	Screw
18	Insert, Handle (For Platinum Model Only)
18	Insert, Handle
19	Interior Door Panel
20	Trim, Door Compartment
21	Divider, Shelf
22	Compartment Door, Utility
24	Clip, Medallion
25	WP488729 Whirlpool Refrigerator Door Screw
26	Medallion
28	Cap, Hinge Sleeve (2)
31	Retainer, Insert
33	WPL 1105804
34	WP488921 Whirlpool Refrigerator Screw
35	Trim, Door
36	Retainer, Trim (6)
37	Trim, Interior Door (3)
38	Bunper (2)
39	Trim, Door Shelf
40	WPL 1119566
