ET20DKXTN01 06 – UNIT

Products

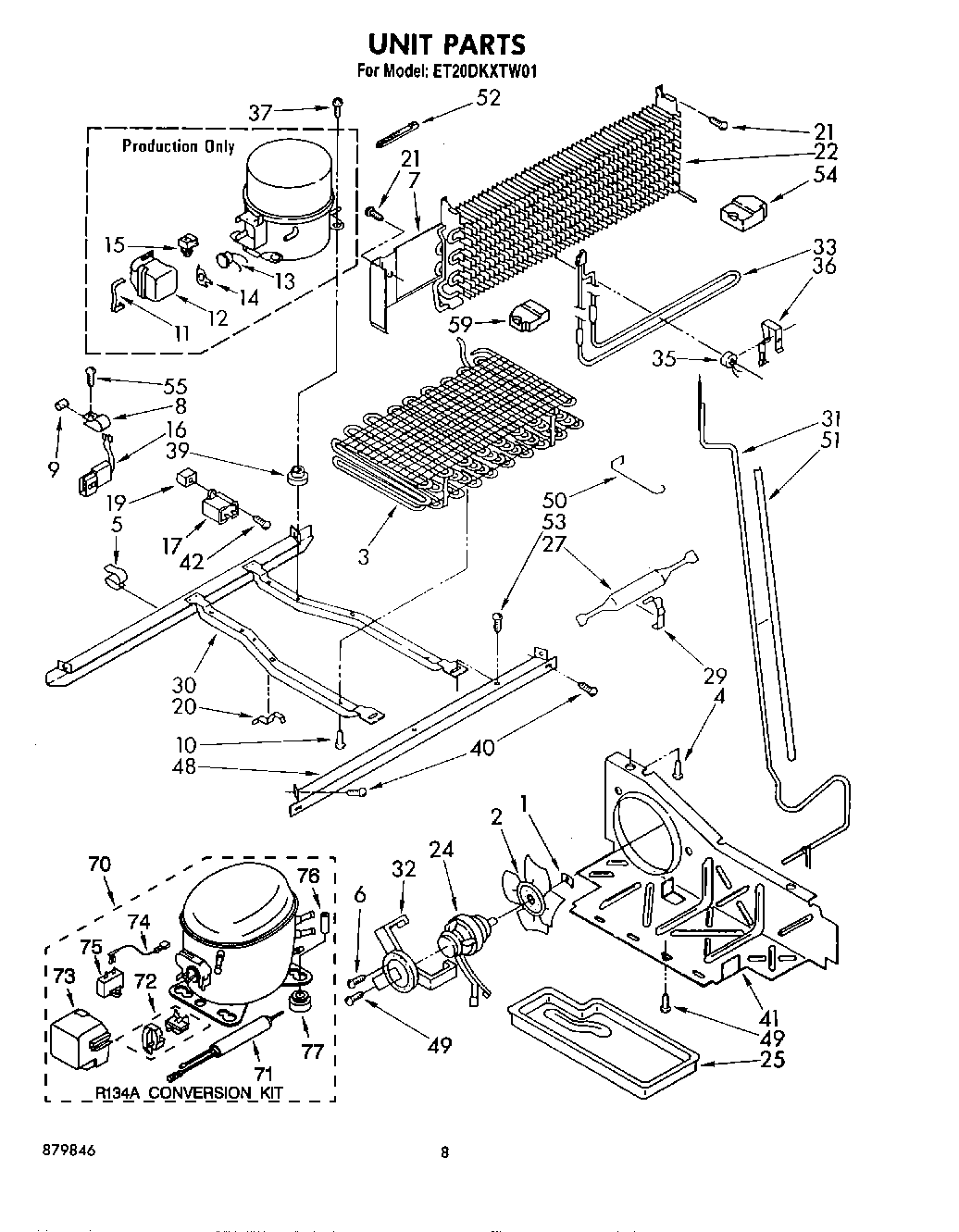

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	Screw, 8-32 x 1/2
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener (2)
10	WP489069 Whirlpool Compactor Screw
11	Spring, Case
12	Case, Relay
13	Overload
14	Overload Spring
15	Relay
16	WP717253 Whirlpool Dishwasher Connector
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
19	Screw Grommet
20	Clip (2)
21	W11624204 Whirlpool Screw
22	Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
27	W10843121 Whirlpool Refrigerator Tube
29	Clamp
30	Unit Mounting Frame
31	Exchanger, Heat
32	Bracket, Motor
33	Heater, Defrost
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Baffle, Air
42	W11693756 Whirlpool Screw Assembly
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
51	WP2002171 Whirlpool Refrigerator Sleeve
52	Strap
53	Screw, 1/4-28 x 1/2 (2)
54	Support (R.S.)
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
59	Support, Evaporator (L.S.)
70	876765 Whirlpool Primary Mounting Kit Refrigerator
70	Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) (Also Order
72	OVERLOAD
73	WP2162358 Whirlpool Refrigerator Terminal Cover
74	WP2172890 Whirlpool Refrigerator Wire
75	WP4387764 Whirlpool Run Capacitor
76	Sleeve (4) (Service Only)
77	VALVE, ACCESS (1/2“)
77	876764 Whirlpool Refrigerator Primary Valve
77	978030 Whirlpool Refrigerator Valve
77	WP4387558 Whirlpool Refrigerator Compressor Grommet
77	978027 Whirlpool Refrigerator Primary Valve
77	978026 Whirlpool Refrigerator Primary Valve
77	VALVE, ACCESS (5/8“)
77	WP978025 Whirlpool Refrigerator Valve
