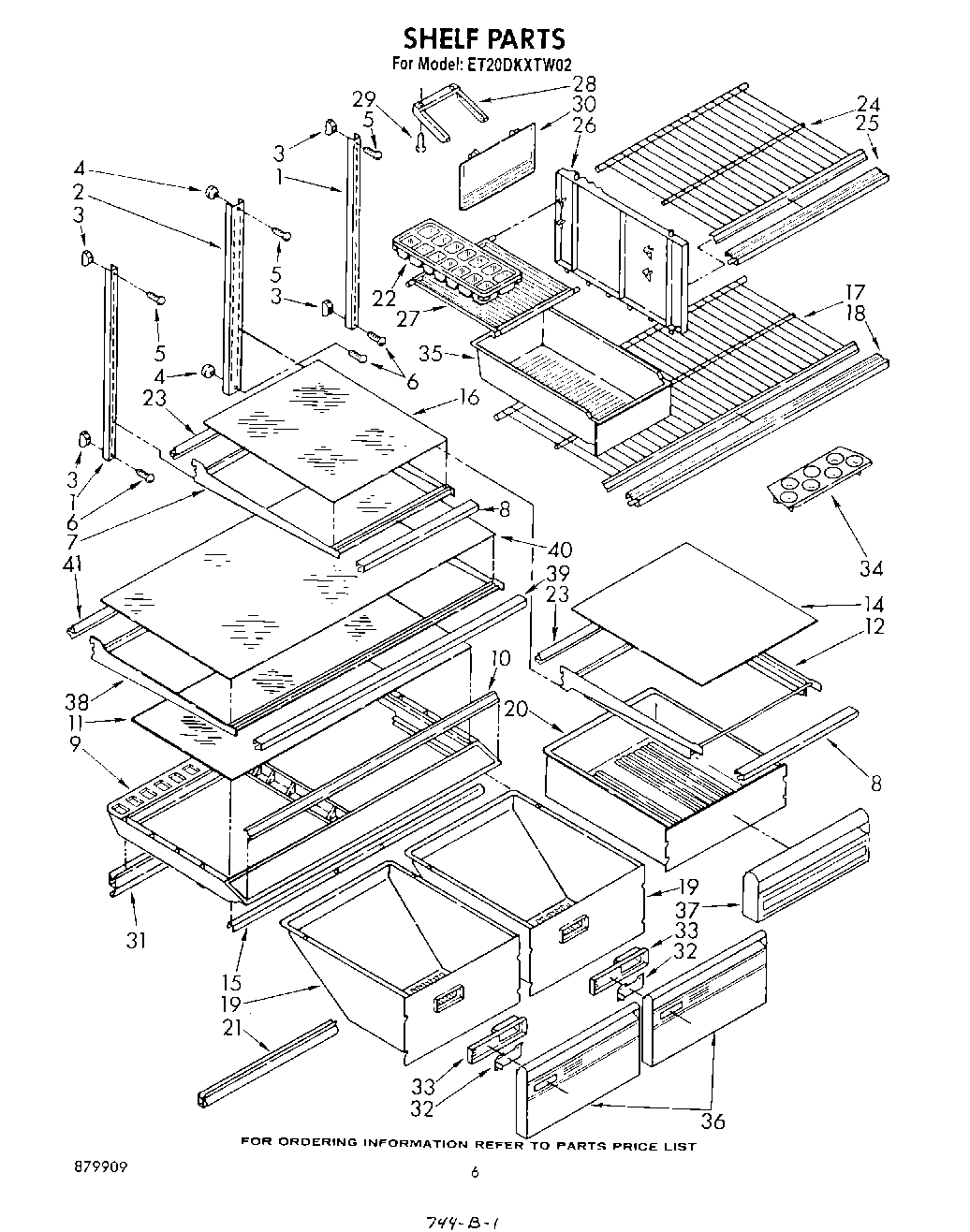

ET20DKXTN02 05 – SHELF , LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT1119570
	WPL LIT1118671
	WPL LIT1119572
	WPL LIT879909
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Screw Support, Center Ladder (2)
5	Screw, 8-32 x 1-1/4 (3)
5	Screw (Repair)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (3)
8	Trim, Shelf
9	WP2151749 Whirlpool Refrigerator Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
14	Glass, Meat Cover
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Glass
17	Shelf, Freezer
18	Trim, Shelf Front
19	Pan, Crisper
20	Pan, Meat
21	Gasket-Front
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Reflector, Shelf
24	Shelf, Freezer (Top)
25	Trim, Shelf
26	Divider
27	Shelf, Ice Compartment (2)
28	Slide, Ice Compartment
29	W11624204 Whirlpool Screw
30	Door, Ice Compartment
31	Gasket, Rear
32	Slide, Humidity Control
33	Housing, Humidity Control
34	Tray, Egg (2)
35	PAN-ICE
36	Crisper, Pan Front
37	Meat Pan, Front
38	Shelf, Full Cantilever
39	Trim, Shelf
40	Glass Shelf
41	WPL 72112
41	WPL 876029
41	WPL 799833
41	833938 Whirlpool Refrigerator Terminal
41	TAPE, VINYL (3/4 X 108“)
41	Leveler (Thinner)
41	WP72107 Whirlpool Touchup
41	72113 Whirlpool Touch-Up Paint
41	876370 Whirlpool Refrigerator Insulation
41	WP542638 Whirlpool Refrigerator Grease
41	WPL 799832
41	WP505587 Whirlpool Refrigerator Sealer
41	799344 Whirlpool Refrigerator Paint
41	72017 Whirlpool Appliance Touch-Up Paint White
41	350956 Whirlpool Spray Assembly
41	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41	Reflector, Shelf
41	Golden Harvest
41	212643 Whirlpool Refrigerator Permagum Sealer
41	350930 Whirlpool White Spray Paint
41	Silicone (Spray)
41	CEMENT, ALUMILASTIC (1 1/4 OZ.)
41	Platinum (Uncut)
41	Enamal, Toast (1 Qt. Uncut)
41	Paint, Spray (13 Oz.) (Platinum)
41	350942 Whirlpool Spray Paint
41	511873 Whirlpool Refrigerator Paint
41	WP503695 Whirlpool Refrigerator Sealer
41	72032 Whirlpool Touch Up Paint Black
41	285006 Whirlpool Spray
41	Toast
41	Golden Harvest (Uncut)
41	606755 Whirlpool Refrigerator Bag
41	Almond (Uncut)
