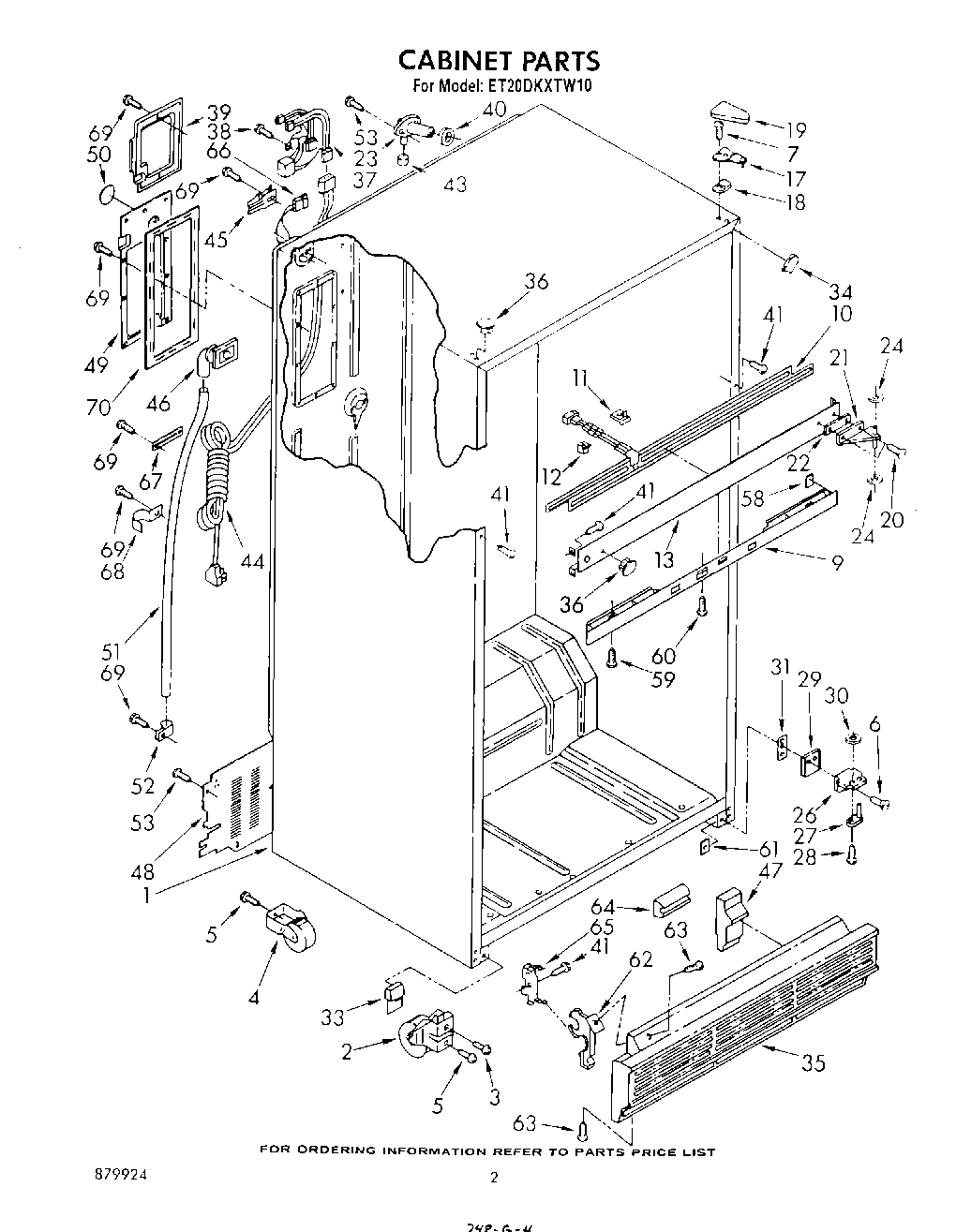

ET20DKXTN10 02 – CABINET

ET20DKXTN10 02 – CABINET

Written by

in

ET20DKXTN10 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
7	WP999367 Whirlpool Refrigerator Screw
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Mullion (3)
12	Spacer (2)
13	Center Rail (Toast)
13	Center Rail (Almond)
13	Center Rail (White)
13	Center Rail (Platinum)
13	Center Rail (Golden Harvest)
17	Shim, Hinge Top
18	Shim, Hinge
19	1119787 Whirlpool Refrigerator Hinge Cover
19	Hinge Cover (Golden Harvest)
19	Hinge Cover (Toast)
20	Screw (Repair)
21	Hinge, Center
22	Shim, Hinge Center
22	Shim, Center (Repair)
23	WP2196157 Whirlpool Fill Tube
24	WP488296 Whirlpool Washer Refrigerator
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw
29	Shim, Bottom Hinge
30	WP489200 Whirlpool Refrigerator Washer
31	Spacer, Hinge
33	Corner Filler, Grille
34	Filler, Wrapper (Golden Harvest)
34	Filler, Wrapper (Platinum)
34	Filler, Wrapper (Toast)
34	Filler, Wrapper (White)
34	Filler, Wrapper (Almond)
35	Grille
36	Hole Plug (3) (Platinum)
36	Hole Plug (3) (Toast)
36	Hole Plug (2) (Almond)
36	Hole Plug (2) (Golden Harvest)
36	Hole Plug (2) (White)
37	Cabinet,
38	WP250830 Whirlpool Refrigerator Screw
39	Cover, Wiring
40	WP1106508 Whirlpool Refrigerator Gasket
41	W11624204 Whirlpool Screw
43	WP487996 Whirlpool Refrigerator Cap Tube
44	Cord, Service
45	Clamp
46	Fitting, Drain
47	WPL 836372
48	Cover, Unit
49	Cover, Plug
50	WPL 1120224
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 836077
58	WPL 1106844
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap Plate
62	WP944224 Whirlpool Refrigerator Support
63	Screw, 8-22 x 5/16 (4)
64	Bumper, Grille
65	WPL 989068
66	WP717253 Whirlpool Dishwasher Connector
67	Tube Clamp (2)
68	WPL 1110564
69	WP489478 Whirlpool Refrigerator Screw
69	SCREW
70	WPL 1114548
