ET20DKXVM06 02 – CABINET

ET20DKXVM06 02 – CABINET

Written by

in

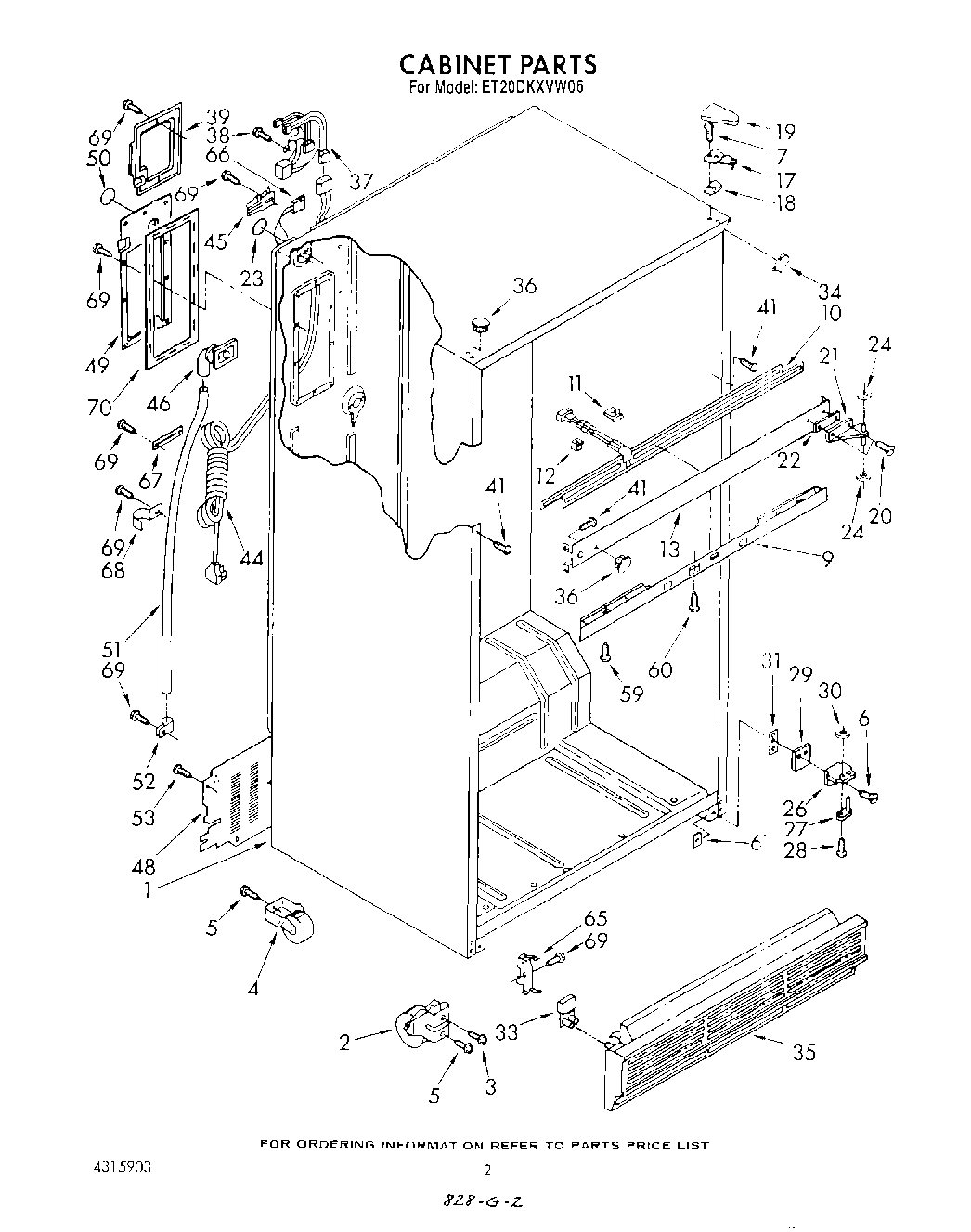

ET20DKXVM06 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Roller, Front
3Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5Screw, 1/4-28 x 1/2 (2)
7WP999367 Whirlpool Refrigerator Screw
9Control, Front Cover
10Heater, Mullion
11Clip, Mullion (3)
12Spacer (2)
13Center Rail (Toast)
13Center Rail (Platinum)
13Center Rail (White)
13Center Rail (Almond)
13Center Rail (Golden Harvest)
17Hinge, Top
18Shim, Hinge Top
191119787 Whirlpool Refrigerator Hinge Cover
19Hinge Cover (Toast)
19Hinge Cover (Golden Harvest)
20Screw (Repair)
20Screw
21Hinge, Center
22Shim, Center (Repair)
22Shim, Hinge Center
23Hole Seal
24WP488296 Whirlpool Washer Refrigerator
26Hinge Butt, Bottom
27Hinge Pin, Bottom
28Screw
29Shim, Bottom
30WP489200 Whirlpool Refrigerator Washer
31Spacer
33Corner Filler, Grille
34Filler, Wrapper Corner (2) (Platinum)
34Filler, Wrapper Corner (2) (Toast)
34Filler, Wrapper Corner (2) (Golden Harvest)
34Filler, Wrapper Corner (2) (White)
34Filler, Wrapper Corner (2) (Almond)
35Grille (Black)
36Hole Plug (4) (Almond)
36Hole Plug (4) (Platinum)
36Hole Plug (4) (Toast)
36Hole Plug (4) (White)
36Hole Plug (4) (Golden Harvest)
37Cabinet, Wiring Assembly
38WP250830 Whirlpool Refrigerator Screw
39Cover, Wiring
41W11624204 Whirlpool Screw
44Cord, Service
45Clamp
46Fitting, Drain
48Cover, Unit
49Cover, Plug
50WPL 1120224
518316810 Whirlpool Refrigerator Drain Tube
52WPL 836077
59WP488163 Whirlpool Refrigerator Screw
60WP489174 Whirlpool Refrigerator Screw
61Tap Plate
65WP2155013 Whirlpool Refrigerator Clip
66WP717253 Whirlpool Dishwasher Connector
67Tube Clamp (2)
68WPL 1110564
69SCREW
69WP489478 Whirlpool Refrigerator Screw
70WPL 1114548
