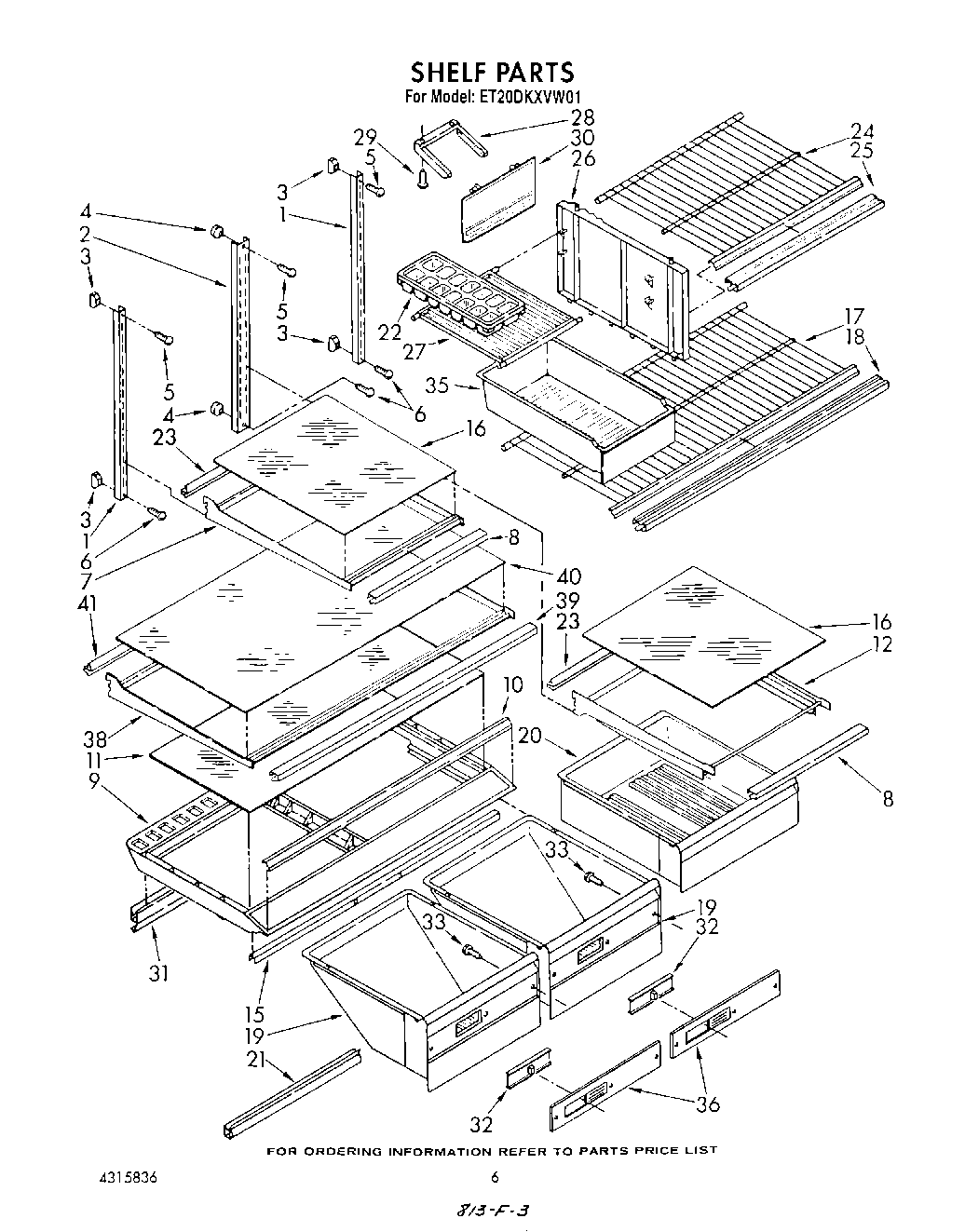

ET20DKXVN01 05 – SHELF , LIT/OPTIONAL

ET20DKXVN01 05 – SHELF , LIT/OPTIONAL

Written by

in

ET20DKXVN01 05 – SHELF , LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT1124231
	WPL LIT1118943
	WPL LIT1124256
	WPL LIT4315836
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Screw Support, Center Ladder (2)
5	Screw (Repair)
5	Screw, 8-32 x 1-1/4 (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever
8	Trim, Shelf
9	WP2151749 Whirlpool Refrigerator Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Glass
17	Shelf, Freezer
18	Trim, Shelf Front
19	Pan, Crisper
20	Pan, Meat
21	Gasket-Front
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Reflector, Shelf
24	Shelf, Freezer (Top)
25	Trim, Shelf
26	Divider
27	Shelf, Ice Compartment (2)
28	Slide, Ice Compartment
29	W11624204 Whirlpool Screw
30	Door, Ice Compartment
31	Gasket, Rear
32	Slide
33	Screw (3)
35	PAN-ICE
36	Crisper Pan, Front
38	Shelf, Full Cantilever
39	Trim, Shelf
40	Glass, Shelf
41	Reflector, Shelf
41	833938 Whirlpool Refrigerator Terminal
41	WP72107 Whirlpool Touchup
41	799344 Whirlpool Refrigerator Paint
41	72113 Whirlpool Touch-Up Paint
41	212643 Whirlpool Refrigerator Permagum Sealer
41	350930 Whirlpool White Spray Paint
41	350956 Whirlpool Spray Assembly
41	72017 Whirlpool Appliance Touch-Up Paint White
41	606755 Whirlpool Refrigerator Bag
41	350942 Whirlpool Spray Paint
41	876370 Whirlpool Refrigerator Insulation
41	511873 Whirlpool Refrigerator Paint
41	Leveler (Thinner)
41	WP503695 Whirlpool Refrigerator Sealer
41	Almond (Uncut)
41	CEMENT, ALUMILASTIC (1 1/4 OZ.)
41	285006 Whirlpool Spray
41	72032 Whirlpool Touch Up Paint Black
41	Platinum (Uncut)
41	TAPE, VINYL (3/4 X 108“)
41	Paint, Spray (13 Oz.) (Platinum)
41	WPL 799833
41	Toast
41	Golden Harvest (Uncut)
41	Golden Harvest
41	WPL 72112
41	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41	WP542638 Whirlpool Refrigerator Grease
41	Enamal, Toast (1 Qt. Uncut)
41	WP505587 Whirlpool Refrigerator Sealer
41	WPL 876029
