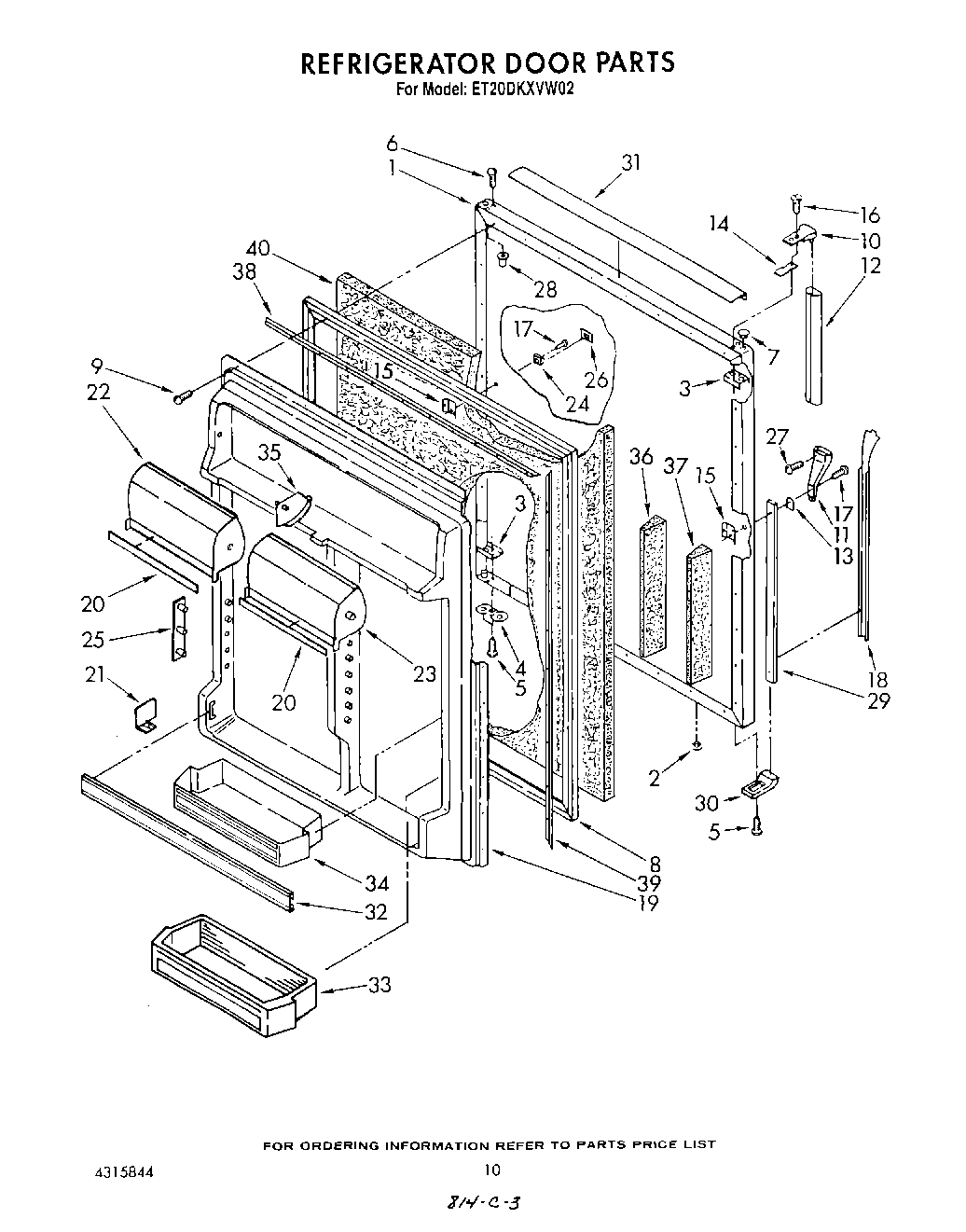

ET20DKXVW02 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Also Order Item 27) (White)
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
1	Panel, Refrigerator Door (Golden Harvest (Also Order Item 27))
1	Panel, Refrigerator Door (Also Order Item 40) (Toast)
1	Panel, Refrigerator Door (Also Order Item 40) (Platinum)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	Screw (Repair)
7	Hole Plug (Platinum)
7	Hole Plug (Toast)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End, Side
12	Handle, Center
12	Handle, Center (For Platinum Model Only)
13	Shim
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
16	Screw (Repair)
17	WP488729 Whirlpool Refrigerator Door Screw
18	Insert, Handle
18	Insert, Handle (For Platinum Model Only)
19	Interior Door Panel
20	Trim, Door Compartment
21	Divider, Shelf
22	Compartment Door, Left Side
23	Compartment Door, Right Side
24	Clip, Medallion
25	Pin Plate (8)
26	Medallion
27	Screw
28	Cap, Hinge Sleeve (2)
29	Retainer, Insert
30	WPL 1105804
31	Trim, Door
32	Trim, Door Shelf
33	Bin, Door Shelf (2)
34	Bin, Door Shelf (Deep) (2)
35	WP1118001 Whirlpool Hinge Pin
36	WPL 1122711
37	WPL 1122709
38	Gasket, Retainer
39	Gasket Retainer, Top & Bottom
40	WPL 876029
