ET20DKXWG00 04 – SHELF, LIT/OPTIONAL

ET20DKXWG00 04 – SHELF, LIT/OPTIONAL

Written by

in

ET20DKXWG00 04 – SHELF, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2148359
833938 Whirlpool Refrigerator Terminal
Torx Key
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL LIT1124256
1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
WPL LIT1127854
WPL LIT4316051
350942 Whirlpool Spray Paint
Golden Harvest (Uncut)
350930 Whirlpool White Spray Paint
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Golden Harvest
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz

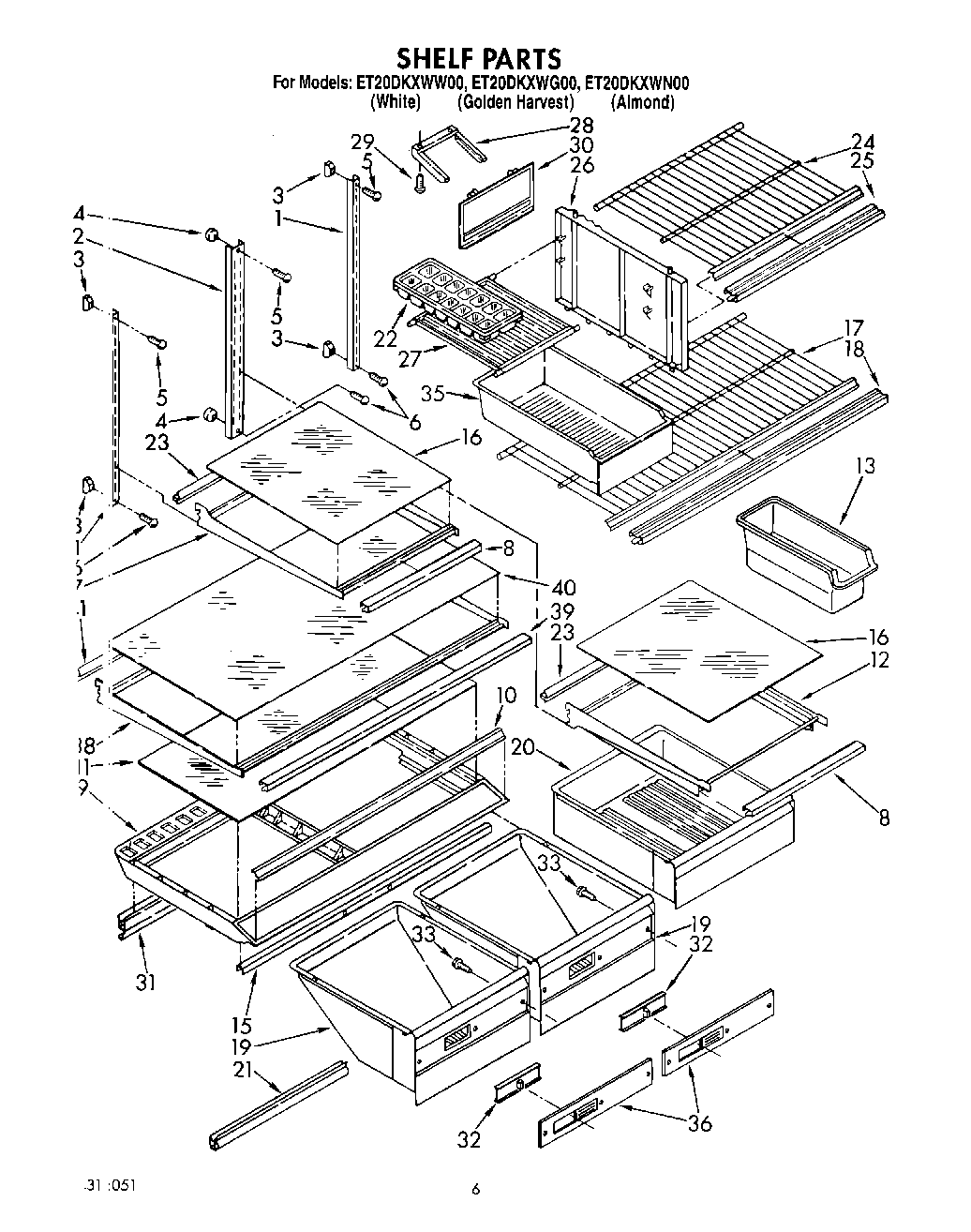

1Shelf, Ladder (2)
2Shelf, Ladder Center
3520965 Whirlpool Refrigerator Support
4Screw Support, Center Ladder (2)
5Screw, 8-32 x 1-1/4 (3)
5Screw (Repair)
6WP488163 Whirlpool Refrigerator Screw
7Shelf, Cantilever
8Trim, Shelf
9WP2151749 Whirlpool Refrigerator Cover
10Trim, Crisper Cover
11Glass, Crisper Cover
12Pan Shelf, Cantilever
13WP982704 Whirlpool Refrigerator Container
15WP2172748 Whirlpool Drawer Support
16Shelf, Glass
17Shelf, Freezer
18Trim, Shelf Front
19Pan, Crisper
20Pan, Meat
21Gasket-Front
22WP841180A Whirlpool Microwave Glass Turntable Tray
23Reflector, Shelf
24Shelf, Freezer (Top)
25Trim, Shelf
26Divider
27Shelf, Ice Compartment (2)
28Slide, Ice Compartment
29W11624204 Whirlpool Screw
30Door, Ice Compartment
31Gasket, Rear
32Slide
33Screw (3)
35PAN-ICE
36Crisper Pan, Front
38Shelf, Full Cantilever
39Trim, Shelf
40Glass, Shelf
41511873 Whirlpool Refrigerator Paint
41212643 Whirlpool Refrigerator Permagum Sealer
41606755 Whirlpool Refrigerator Bag
41WP503695 Whirlpool Refrigerator Sealer
41876370 Whirlpool Refrigerator Insulation
41WPL 799833
41Reflector, Shelf
41WP505587 Whirlpool Refrigerator Sealer
41WPL 876029
41TAPE, VINYL (3/4 X 108“)
41CEMENT, ALUMILASTIC (1 1/4 OZ.)
41WP542638 Whirlpool Refrigerator Grease
