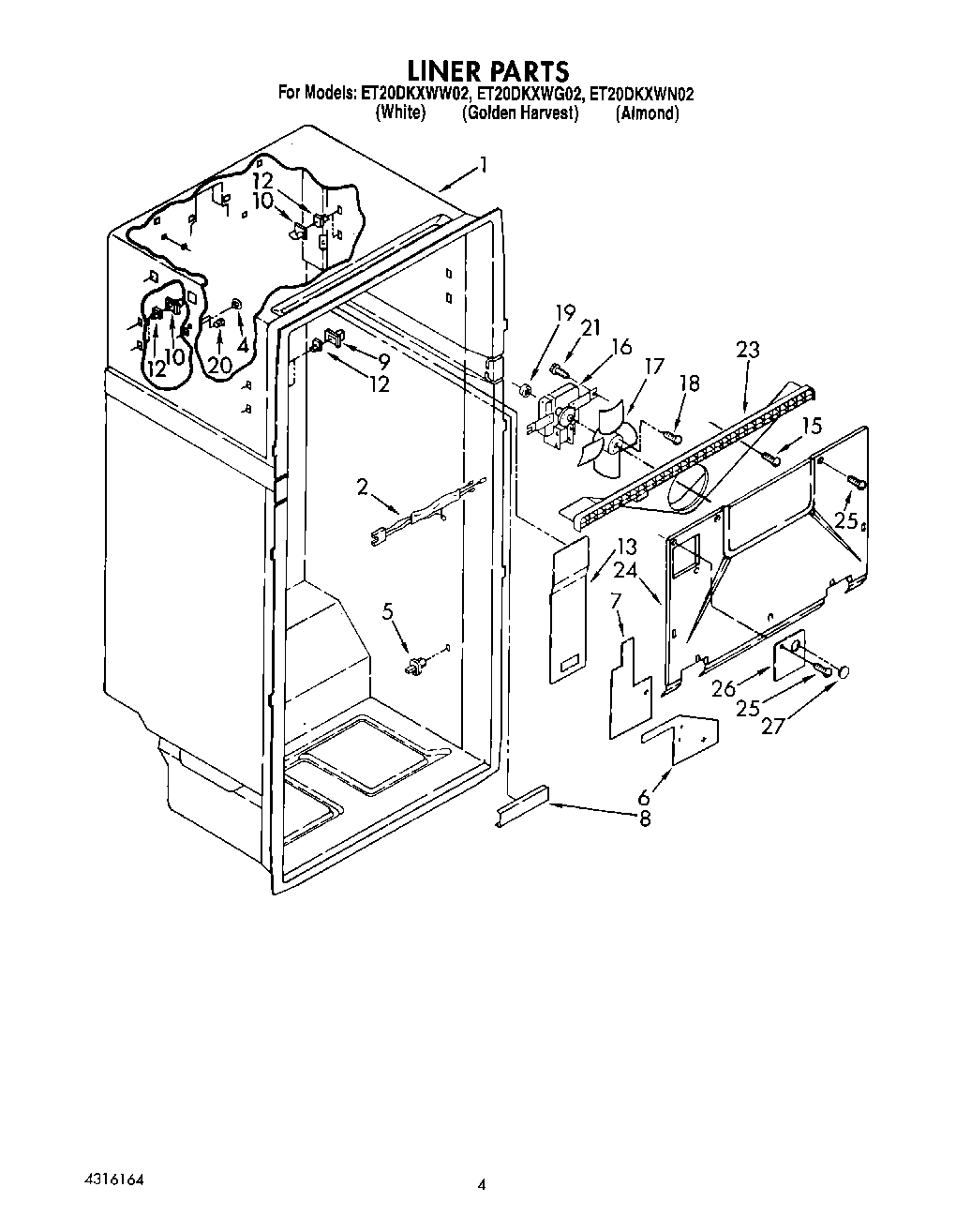

ET20DKXWG02 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Wiring, Fan Motor
4	WP941839 Whirlpool Refrigerator Button Plug
5	W10854959 Whirlpool Refrigerator Shelf Stud
6	Electrical Shield
7	Electrical Shield
8	Electrical, Shield
9	Stud, Front R.S.
10	819091 Whirlpool Refrigerator Shelf Stud
12	Stud, Support
13	Cover, Air Duct
15	WP489478 Whirlpool Refrigerator Screw
16	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17	WP1100938 Whirlpool Refrigerator Fan Blade
18	WP487887 Whirlpool Refrigerator Screw
19	Grommet
20	Grommet (8)
21	Screw (2)
23	Scroll, Fan
24	Evaporator Cover
25	WP488729 Whirlpool Refrigerator Door Screw
26	WP2217784 Whirlpool Refrigerator Cover
27	Hole Plug
