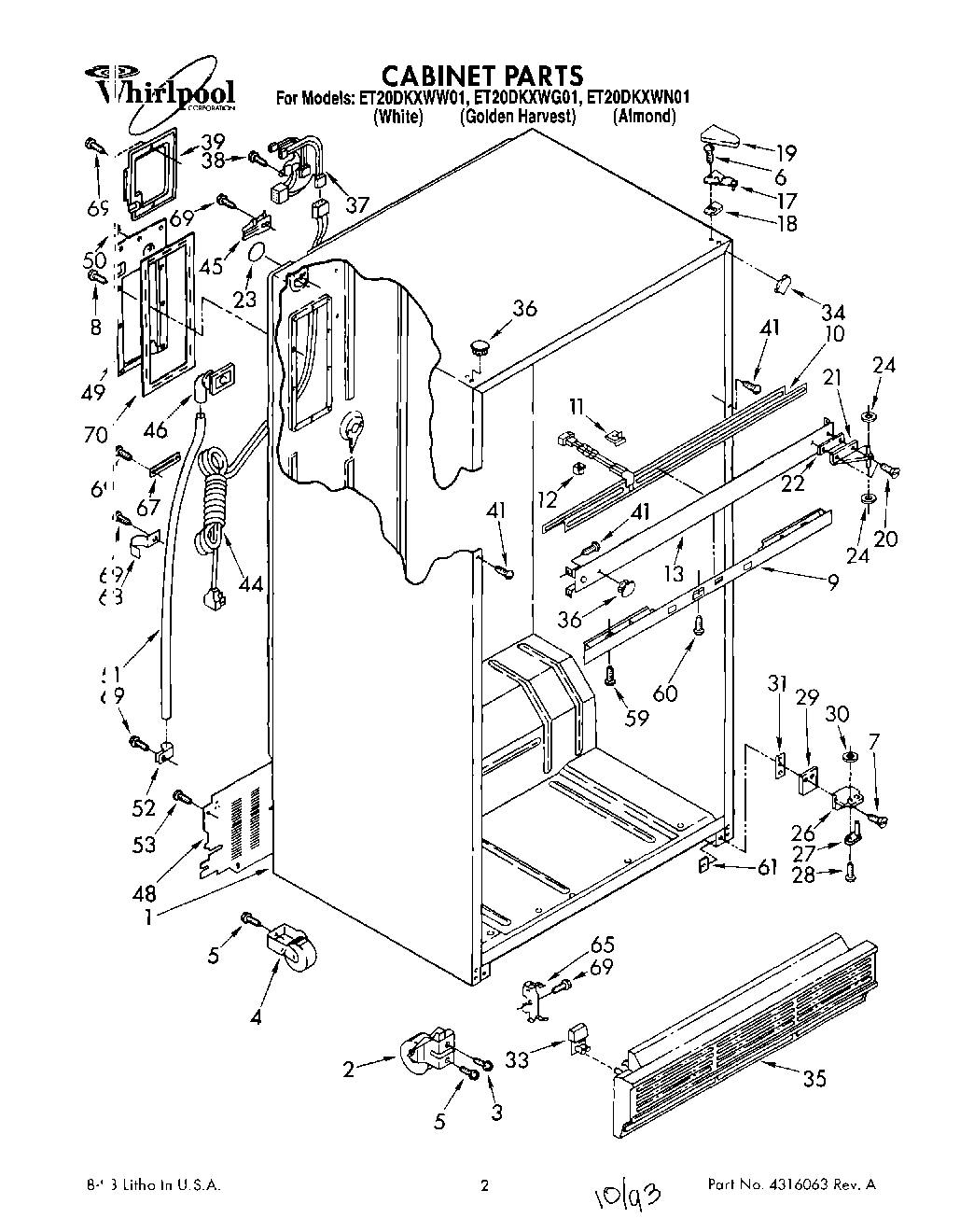

ET20DKXWW01 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	Roller, Rear (2)
5	WP489427 Whirlpool Refrigerator Screw
6	WP489349 Whirlpool Refrigerator Screw
7	Screw
8	WP489464 Whirlpool Refrigerator Screw
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Mullion (3)
12	Spacer (3)
13	Center Rail (White)
13	Center Rail (Golden Harvest)
13	Center Rail (Almond)
17	Hinge, Top
18	Shim, Hinge
19	Hinge Cover (Golden Harvest)
19	1119787 Whirlpool Refrigerator Hinge Cover
20	WP999367 Whirlpool Refrigerator Screw
20	Screw (Repair)
21	Hinge, Center
22	Shim, Center (Repair)
22	Shim, Hinge Center
23	Hole Seal
24	WP488296 Whirlpool Washer Refrigerator
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	WP489200 Whirlpool Refrigerator Washer
31	Spacer
33	Corner Filler, Grille
34	Filler, Wrapper Corner (2) (Almond)
34	Filler, Wrapper Corner (2) (White)
34	Filler, Wrapper Corner (2) (Golden Harvest)
35	Grille (Black)
36	Hole Plug (2) (Golden Harvest)
36	Hole Plug (2) (Almond)
36	Hole Plug (2) (White)
37	Cabinet, Wiring Assembly
38	WP250830 Whirlpool Refrigerator Screw
39	Cover, Wiring
41	W11624204 Whirlpool Screw
44	Cord, Service
45	Clamp
46	Fitting, Drain
48	Cover, Unit
49	Cover, Plug
50	WPL 1120224
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 836077
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap Plate (2)
65	WP2155013 Whirlpool Refrigerator Clip
67	Tube Clamp (2)
68	WPL 1110564
69	WP489478 Whirlpool Refrigerator Screw
69	SCREW
70	WPL 1114548
