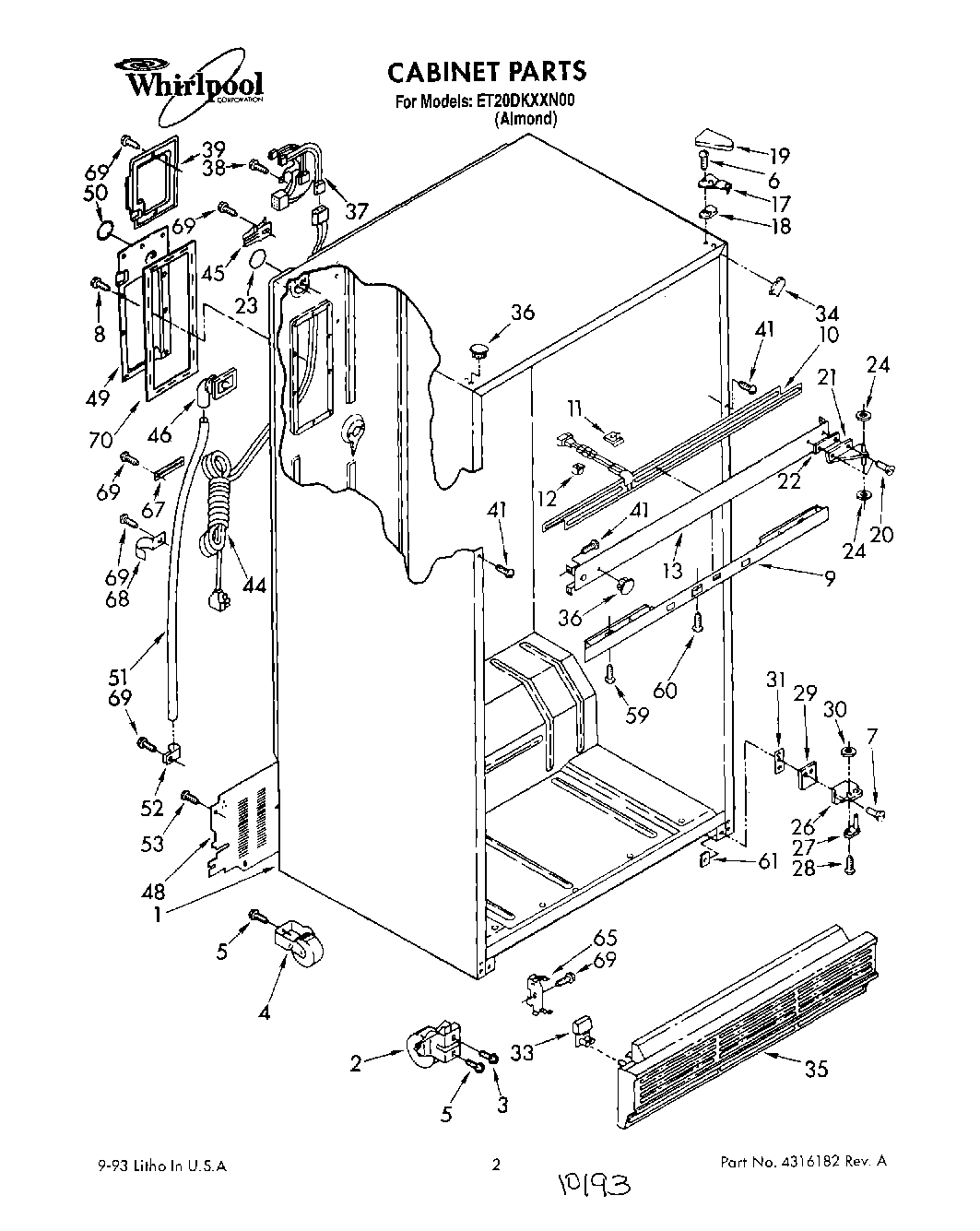

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Front Roller (2) |
| 3 | Screw |
| 4 | WPW10250570 Whirlpool Refrigerator Cabinet Roller |
| 5 | WP489427 Whirlpool Refrigerator Screw |
| 6 | WP489349 Whirlpool Refrigerator Screw |
| 7 | Screw |
| 8 | WP489464 Whirlpool Refrigerator Screw |
| 9 | Control, Front Cover |
| 10 | Heater, Mullion |
| 11 | Clip, Center Rail (4) |
| 12 | Spacer (3) |
| 13 | Center Rail (Almond) |
| 17 | Hinge, Top |
| 18 | Shim, Hinge |
| 19 | 1119787 Whirlpool Refrigerator Hinge Cover |
| 20 | WP999367 Whirlpool Refrigerator Screw |
| 21 | Hinge, Center |
| 22 | Shim, Hinge Center |
| 23 | Hole Seal |
| 24 | WP488296 Whirlpool Washer Refrigerator |
| 26 | Hinge Butt, Bottom |
| 27 | Hinge Pin, Bottom |
| 28 | Screw 10-32 x 5/16 |
| 29 | Shim, Bottom |
| 30 | WP489200 Whirlpool Refrigerator Washer |
| 31 | Spacer |
| 33 | Corner Filler, Grille |
| 34 | Filler, Wrapper Corner (2) (Almond) |
| 35 | Grille (Black) |
| 36 | Hole Plug (4) (Almond) |
| 37 | Cabinet, Wiring Assembly |
| 38 | WP250830 Whirlpool Refrigerator Screw |
| 39 | Cover, Wiring |
| 44 | Cord, Service |
| 45 | Clamp |
| 46 | Fitting, Drain |
| 48 | Cover, Unit |
| 49 | Cover, Plug |
| 50 | WPL 1120224 |
| 51 | 8316810 Whirlpool Refrigerator Drain Tube |
| 52 | WPL 836077 |
| 59 | WP488163 Whirlpool Refrigerator Screw |
| 60 | WP489174 Whirlpool Refrigerator Screw |
| 61 | Tap Plate (2) |
| 65 | WP2155013 Whirlpool Refrigerator Clip |
| 67 | Tube Clamp (2) |
| 68 | WPL 1110564 |
| 69 | WP489478 Whirlpool Refrigerator Screw |
| 70 | WPL 1114548 |
