ET20DMXAB01 02 – LINER

ET20DMXAB01 02 – LINER

Written by

in

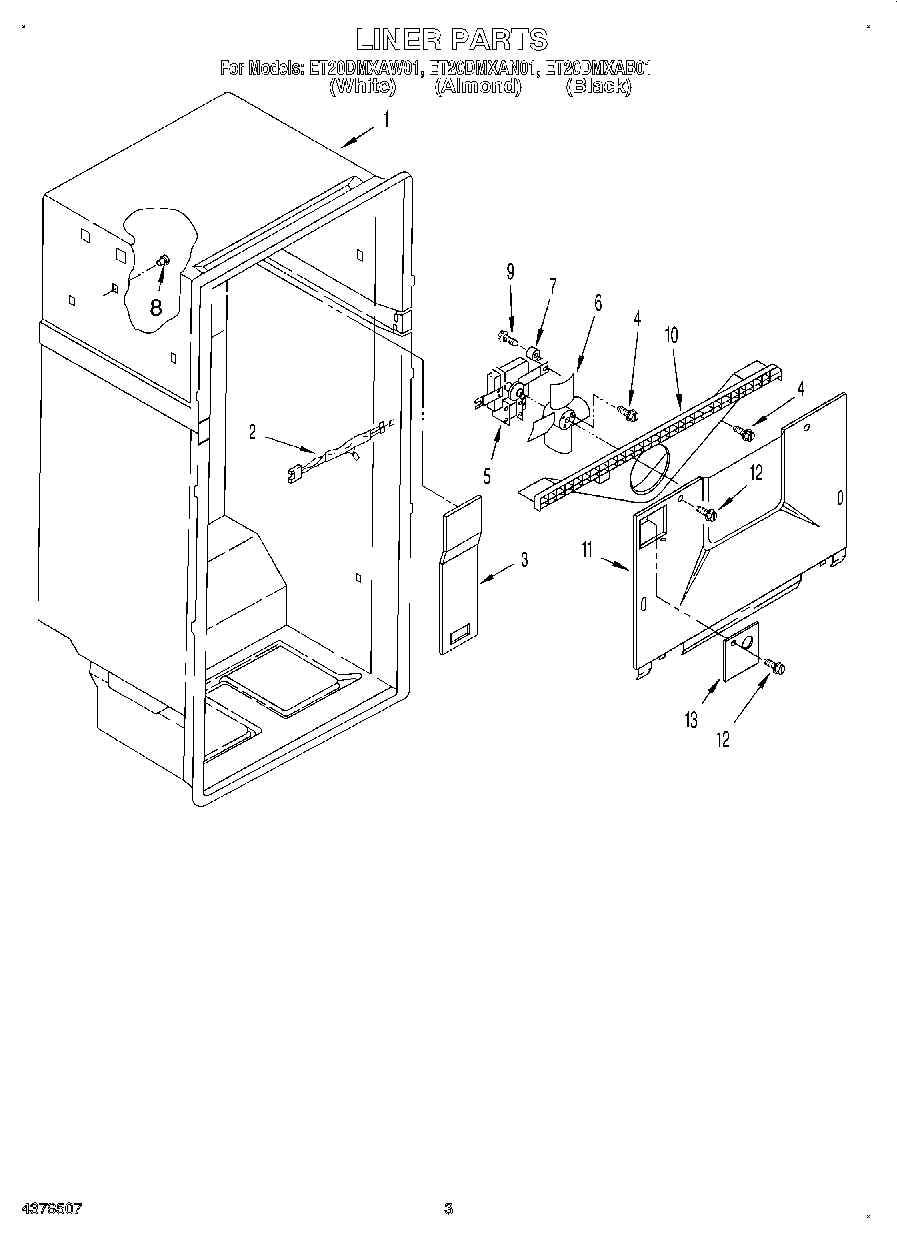

ET20DMXAB01 02 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Wiring, Fan Motor
3Cover, Air Duct
4WP489478 Whirlpool Refrigerator Screw
5482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
6WP1100938 Whirlpool Refrigerator Fan Blade
7Grommet
8Grommet (8)
9Screw (2)
10Scroll, Fan
11Evaporator Cover
12WP488729 Whirlpool Refrigerator Door Screw
13WP2217784 Whirlpool Refrigerator Cover
