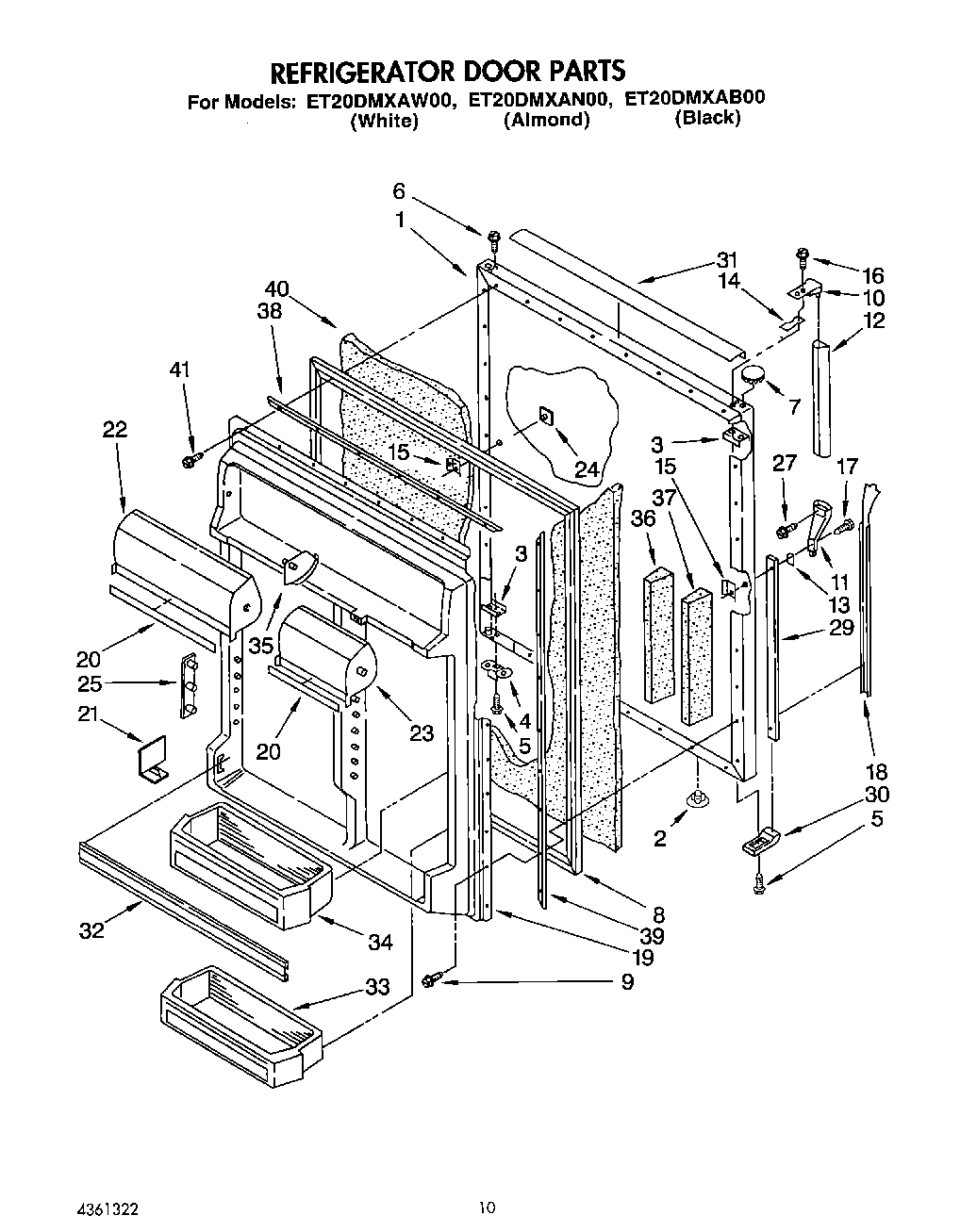

ET20DMXAN00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Also Order Item 40) (White)
1	Panel, Refrigerator Door (Also Order Item 40) (Almond)
1	Panel, Refrigerator Door (Also Order Item 40) (Black)
2	Hole Plug (2)
3	Plate, Tap (4)
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212651 Whirlpool Refrigerator Button Plug
7	Hole Plug (Almond)
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End, Side
12	Handle, Center
12	Handle Center (Almond)
12	Handle, Center
13	Shim
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Insert, Handle
18	Insert, Handle (Almond)
18	Insert, Handle (White)
19	Interior Door Panel
20	Trim, Door Compartment
21	Divider (3)
22	Compartment Door,
23	Compartment Door
24	Hole Plug, Handle (Almond)
24	WP2189009 Whirlpool Refrigerator Handle Plug
24	WP2189000 Whirlpool Refrigerator Handle Plug
25	Pin Plate (8)
27	Screw
29	Retainer, Insert
30	WPL 1105804
31	Trim
32	Trim, Door Shelf
33	WPL 2148549
34	WPL 2148550
35	WP1118001 Whirlpool Hinge Pin
36	WPL 1122711
37	WPL 1122709
38	Gasket Retainer, Top & Bottom
39	Gasket, Retainer
40	WPL 876029
