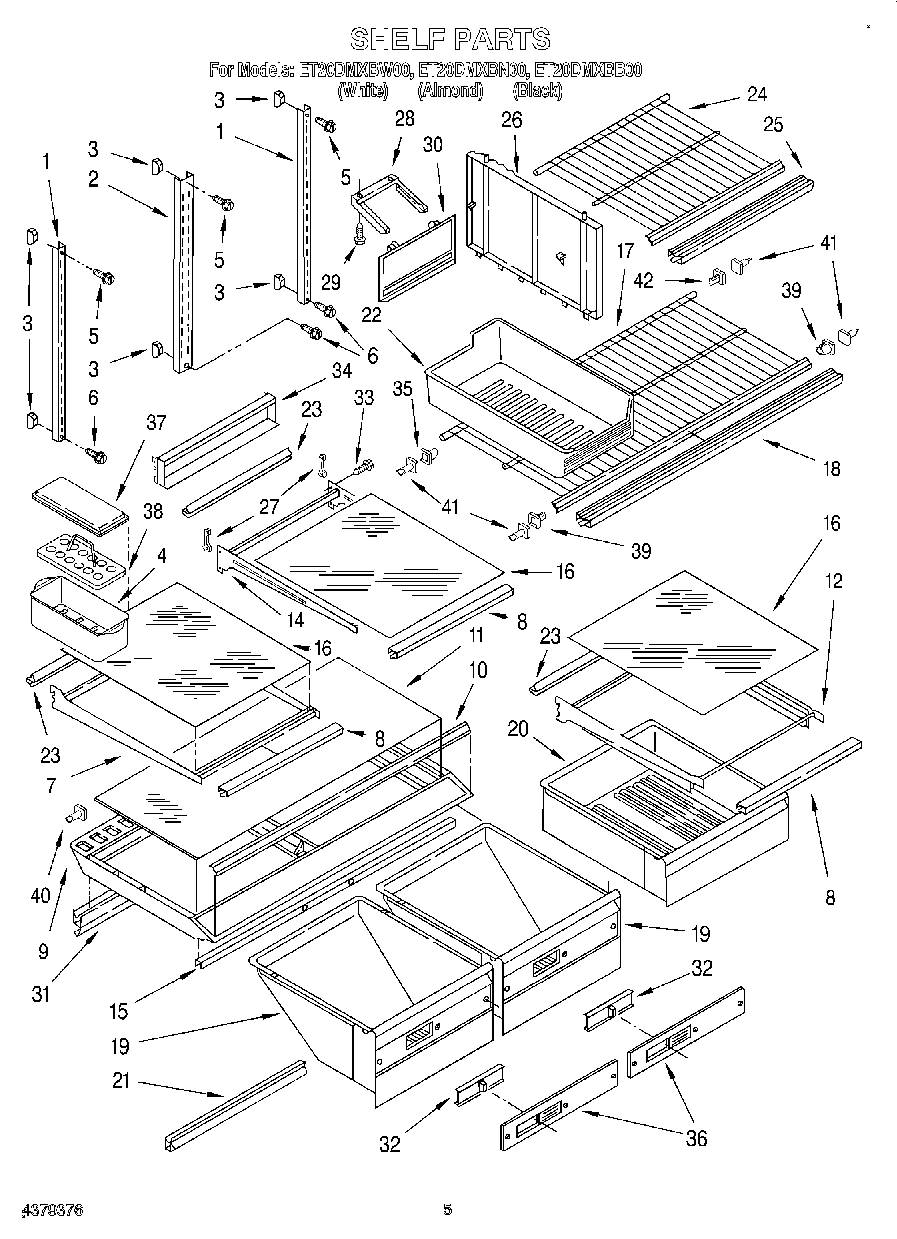

ET20DMXBN00 04 – SHELF, LIT/OPTIONAL

ET20DMXBN00 04 – SHELF, LIT/OPTIONAL

ET20DMXBN00 04 – SHELF, LIT/OPTIONAL

Products

PositionProduct
Torx Key
Modular Icemaker Service Sheet
WPL LIT677971
Literature Parts (Do-It-Yourself Manual Ref./Frz.)
WPL LIT2170977
WPL LIT2170892
WPL LIT2154076
1Shelf, Ladder (2)
2Shelf, Ladder Center
3520965 Whirlpool Refrigerator Support
4W10136387A Whirlpool Refrigerator Egg Container
5Screw (3)
7Shelf, Cantilever
8Trim, Shelf
9WP2151749 Whirlpool Refrigerator Cover
10Trim, Crisper Cover
11Glass, Crisper Cover
12Pan Shelf, Cantilever
14Shelf, Cantilever
15WP2172748 Whirlpool Drawer Support
16Shelf, Glass
17Shelf, Freezer
18Trim, Shelf Front
19Pan, Crisper
20Pan, Meat
21Gasket-Front
22PAN-ICE
23Reflector, Shelf
24Shelf, Freezer (Top)
25Trim, Shelf
26Divider
27Hook, Shelf
28Slide, Ice Compartment
29WP488163 Whirlpool Refrigerator Screw
30Door, Ice Compartment
31Gasket, Rear
32Slide, Humidity Control
33Screw
34Slide, Track
36Crisper Front
37Cover
38WP2177817 Whirlpool Refrigerator Egg Container
39Stud, Front R.S.
40W10854959 Whirlpool Refrigerator Shelf Stud
41Stud, Support
42876370 Whirlpool Refrigerator Insulation
42Door Reversal Instructions
42WPL 799833
42350942 Whirlpool Spray Paint
4272032 Whirlpool Touch Up Paint Black
42285006 Whirlpool Spray
42WPL 876029
42799344 Whirlpool Refrigerator Paint
4272017 Whirlpool Appliance Touch-Up Paint White
42350956 Whirlpool Spray Assembly
42CEMENT, ALUMILASTIC (1 1/4 OZ.)
42Almond (Uncut)
42350930 Whirlpool White Spray Paint
42606755 Whirlpool Refrigerator Bag
42511873 Whirlpool Refrigerator Paint
42TAPE, VINYL (3/4 X 108“)
42819091 Whirlpool Refrigerator Shelf Stud
42833938 Whirlpool Refrigerator Terminal
42212643 Whirlpool Refrigerator Permagum Sealer
42WP503695 Whirlpool Refrigerator Sealer
42WP542638 Whirlpool Refrigerator Grease
42WP505587 Whirlpool Refrigerator Sealer
42WP72107 Whirlpool Touchup
