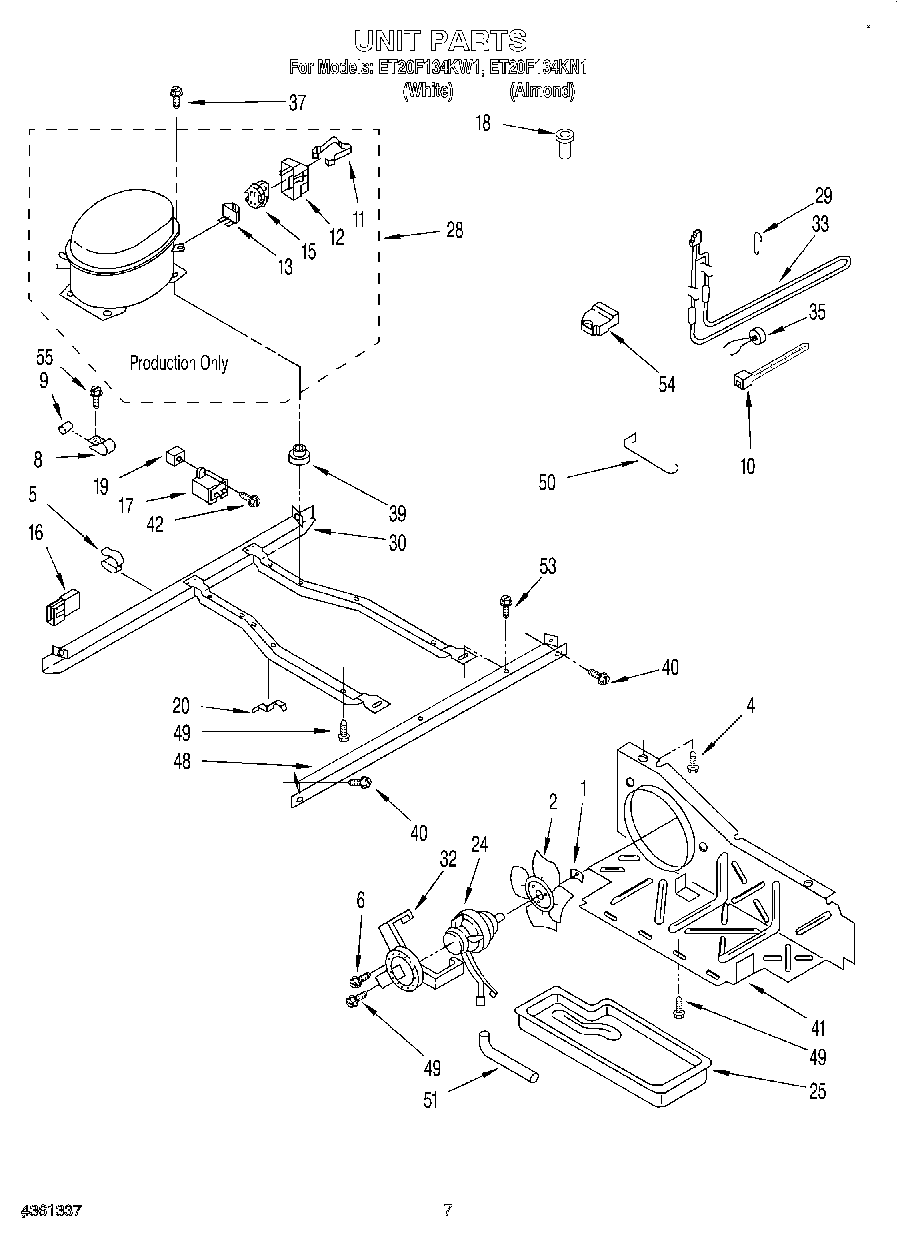

ET20F134KN1 05 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
8	Tube Clamp (2)
9	Dampener (2)
10	WPW10339879 Whirlpool Wire Tie
11	case spring
12	Case, Relay
13	Overload (Production (Includes Relay))
13	OVERLOAD
15	2154436 Whirlpool Refrigerator Start Relay
16	Housing Plug
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
17	WP61002138 Whirlpool Refrigerator Terminal Cover
18	Drain Fitting
19	Screw Grommet
20	Clip (2)
24	833697 Whirlpool Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
28	W10309990 Whirlpool Refrigerator Compressor
29	Support, Heater
30	Unit Mounting Frame
32	Fan, Motor Bracket
33	Heater, Defrost
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
37	Screw
39	Grommet (Production)
40	489340 Whirlpool Refrigerator Screw
41	Air, Baffle
42	W11693756 Whirlpool Screw Assembly
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
51	Drain Extension
53	Screw, 1/4-28 x 1/2 (2)
54	Support (R.S.)
54	Support-Evaporator (L.S.)
55	VALVE, ACCESS (1/2“)
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
55	WP978025 Whirlpool Refrigerator Valve
55	978030 Whirlpool Refrigerator Valve
55	876764 Whirlpool Refrigerator Primary Valve
55	978027 Whirlpool Refrigerator Primary Valve
55	VALVE, ACCESS (5/8“)
55	978026 Whirlpool Refrigerator Primary Valve
