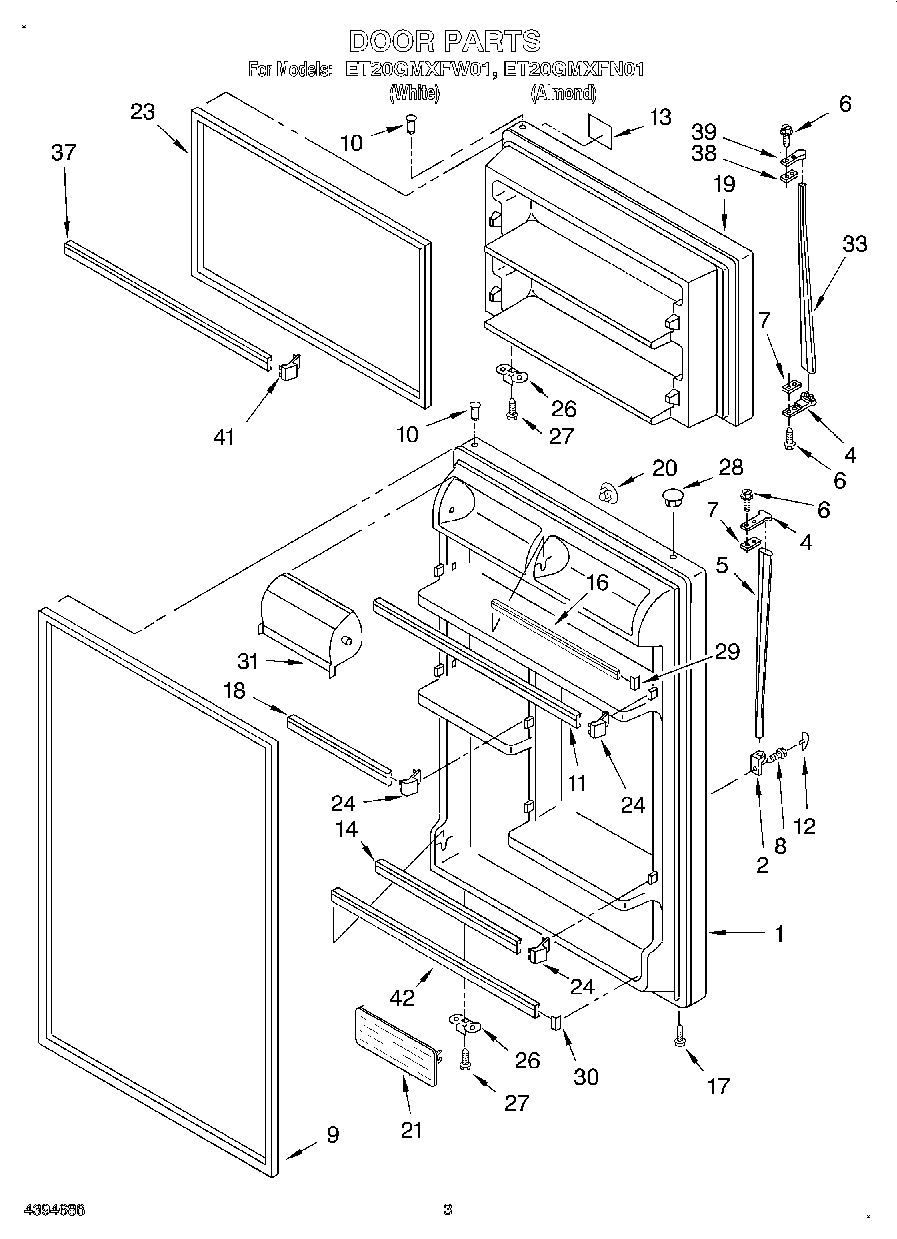

ET20GMXFN01 02 – DOOR

ET20GMXFN01 02 – DOOR

Written by

in

ET20GMXFN01 02 – DOOR

Products

PositionProduct
1Refrigerator Door (Includes 8 & 9) (White)
1Refrigerator Door (Includes No.9 & No.22) (Almond)
2819342 Whirlpool Refrigerator Endcap Kit
5Handle, Center (Almond)
5WP2162555 Whirlpool Refrigerator White Door Handle
6WP488920 Whirlpool Refrigerator Screw
7Spa
8WP488729 Whirlpool Refrigerator Door Screw
92159061 Whirlpool Refrigerator Door Gasket
10WP2183003 Whirlpool Thimble
11Trim, Door Shelf
12Cover, Screw (White)
12Cover, Screw (Almond)
13Nameplate (Almond Model)
13Nameplate (White)
14WP2195943 Whirlpool Shelf Retainer Bar
16TRIM-DOOR
17WP8281206 Whirlpool Refrigerator Screw
18Trim, Door
19W11023679 Whirlpool Refrigerator Door Assembly
19Freezer Door (Includes No.23 & No.32) (Almond)
20Hole Plug (Almond)
20WP2189000 Whirlpool Refrigerator Handle Plug
21WP2188236 Whirlpool Refrigerator Shelf Door
23WHITE DOOR GASKET-FIP
24WP2195915 Whirlpool Door Shelf Support
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28Hole Plug (Almond)
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31WP2218118 Whirlpool Refrigerator Door Compressor
33Handle, F.C. (Almond)
37Trim-Door (2)
38Shim, Handle
41ENDCAP
42WPW10421486 Whirlpool Refrigerator Door Trim
100FeaturePak (Includes 7,8, 13,14,20,21) Also See Door Pg.
