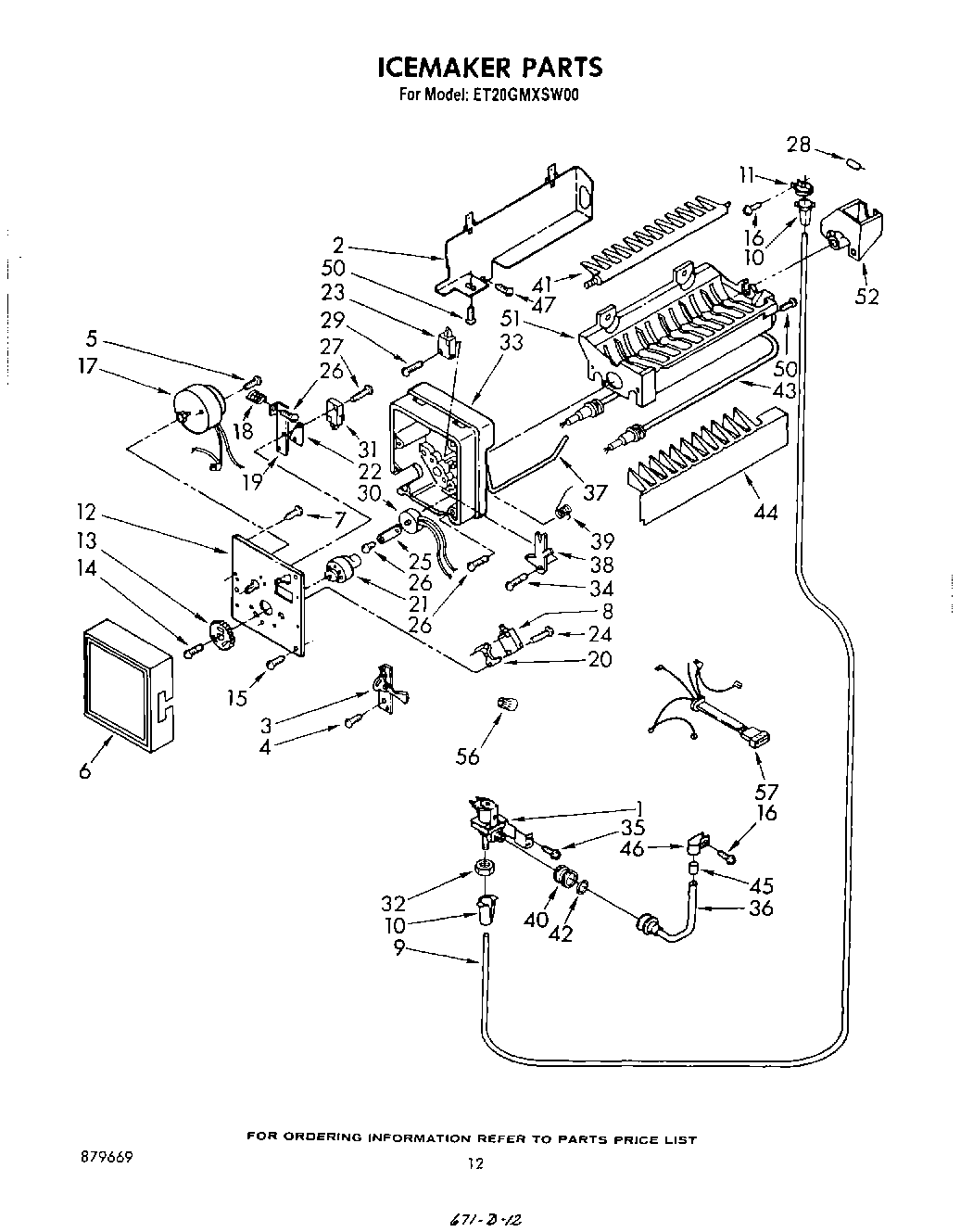

ET20GMXSW00 09 – ICE MAKER , LIT/OPTIONAL

Products

PositionProduct
WPL LIT1111994
WPL LIT1114496
WPL LIT1114051
WPL LIT879669
14318047 Whirlpool Water Valve
2Shield, Heat
3Lever & Plate Assembly
4Screw (Use W/Motor 627106)
6Cover
7Screw, Ground
8Switch, S.P.D.T.
9W10823511 Whirlpool Refrigerator Water Tube
104387491 Whirlpool Refrigerator Insert
11WP488878 Whirlpool Refrigerator Tube Clamp
12Plate, Mounting
13Gear
14Screw
15WP488787 Whirlpool Refrigerator Screw
16WP489069 Whirlpool Compactor Screw
17Motor
18Spring
19Plate, Valve Switch
20Spacer, Switch (2)
21Cam
22Insulator
23Switch, S.P.D.T. (2)
24Screw, 4-40 x 1
25Clamp, Thermostat
26Screw, 8-32 x 1
27Screw
28Tube, Water Inlet
29Screw, 4-24 x 3/4
30Thermostat
31Switch, S.P.S.T.
32WP627018 Whirlpool Refrigerator Nut
33Support
34Screw, Shoulder
35WPW10141625 Whirlpool Refrigerator Screw Assembly
36Tube, Inlet Valve
37Arm, Shut-Off
38Lever, Arm
39Spring, Shut-Off Arm
40Nut, Valve
41Ejector
42WP16123 Whirlpool Washer
43Heater, Mold
44Stripper, Ice
45WP2158826 Whirlpool Refrigerator Dampener
46Clamp Tube
47Screw, 8-15 x 1/2 (4)
50WP489128 Whirlpool Refrigerator Screw
51Mold & Heater Assembly (Includes Illus. 15)
52Beraing & Inlet
56Wire Connector
57Golden Harvest
5772113 Whirlpool Touch-Up Paint
57Paint, Spray (13 Oz.) (Platinum)
57Toast
5772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
57350930 Whirlpool White Spray Paint
57350956 Whirlpool Spray Assembly
5772017 Whirlpool Appliance Touch-Up Paint White
57799344 Whirlpool Refrigerator Paint
57WPL 627750
57WP72107 Whirlpool Touchup
57Leveler (Thinner)
57Golden Harvest (Uncut)
57Almond (Uncut)
57Enamal, Toast (1 Qt. Uncut)
57Platinum (Uncut)
57WPL 72112
57Silicone (Spray)
57TAPE, VINYL (3/4 X 108“)
57CEMENT, ALUMILASTIC (1 1/4 OZ.)
57WPL 799832
57paint, spray 13 oz. (coffee)
57Paint, Touch-Up 1/2 Oz. (Coffee)
5772032 Whirlpool Touch Up Paint Black
57285006 Whirlpool Spray
57WPL 876029
57WP542638 Whirlpool Refrigerator Grease
57WP505587 Whirlpool Refrigerator Sealer
57212643 Whirlpool Refrigerator Permagum Sealer
57350942 Whirlpool Spray Paint
57511873 Whirlpool Refrigerator Paint
57606755 Whirlpool Refrigerator Bag
57833938 Whirlpool Refrigerator Terminal
57Enamel, Coffee (1 Qt. Uncut)
57876370 Whirlpool Refrigerator Insulation
57WP503695 Whirlpool Refrigerator Sealer
57WPL 799833
