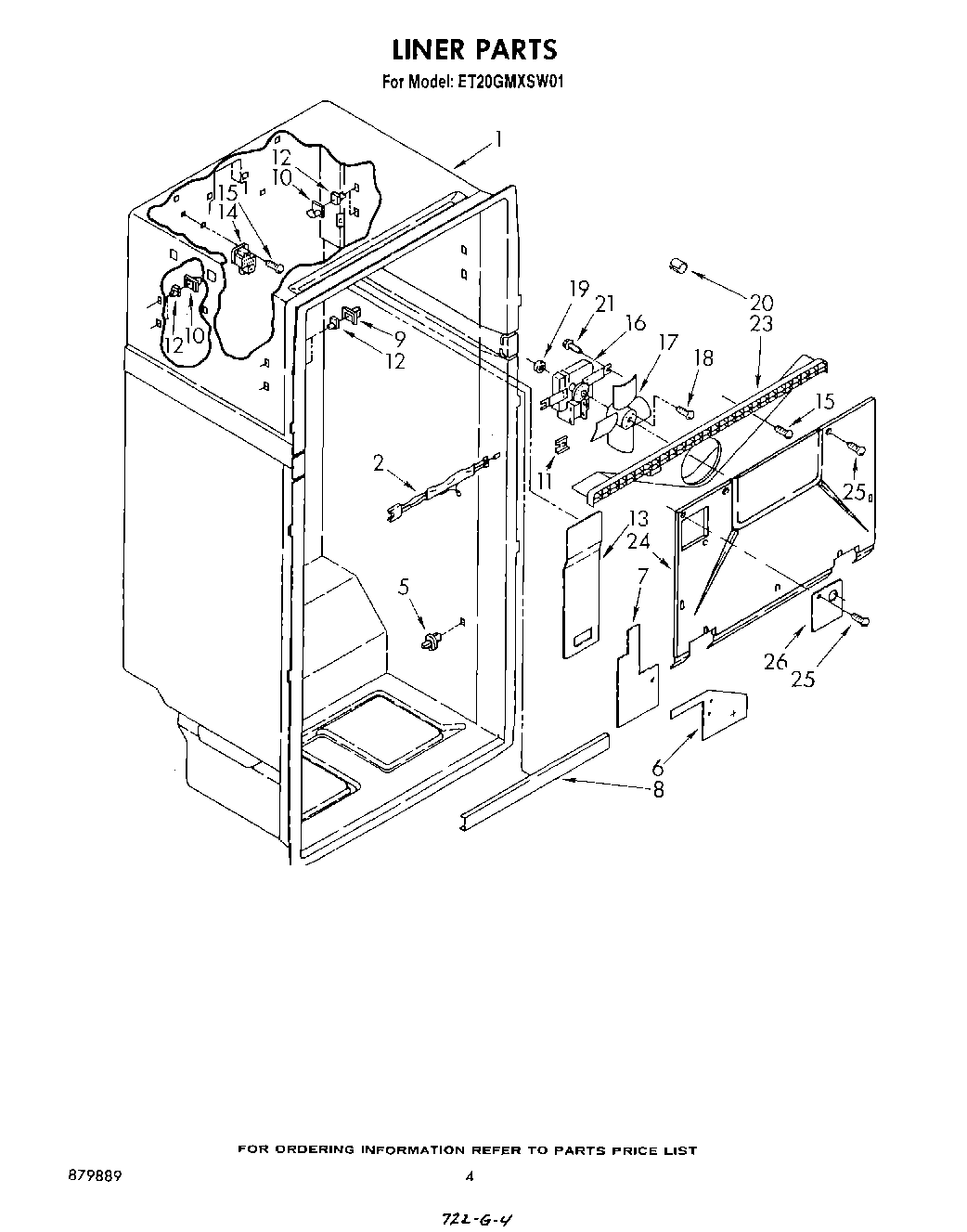

ET20GMXSW01 03 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Wiring, Fan Motor
5	W10854959 Whirlpool Refrigerator Shelf Stud
6	Electrical, Shield
7	Electrical Shield
8	Electrical, Shield
9	Stud, Front R.S.
10	819091 Whirlpool Refrigerator Shelf Stud
11	Screw, Anchor
12	Stud, Support
13	Cover, Air Duct
14	Terminal Block, Multiple
15	W11624204 Whirlpool Screw
16	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17	WP1100938 Whirlpool Refrigerator Fan Blade
18	WP487887 Whirlpool Refrigerator Screw
19	Fan Grommet (2)
20	Ground Spacer
21	Screw (2)
23	Scroll, Fan
24	Evaporator Cover
25	Screw, 8-15 x 1/2 (4)
26	WP2217784 Whirlpool Refrigerator Cover
