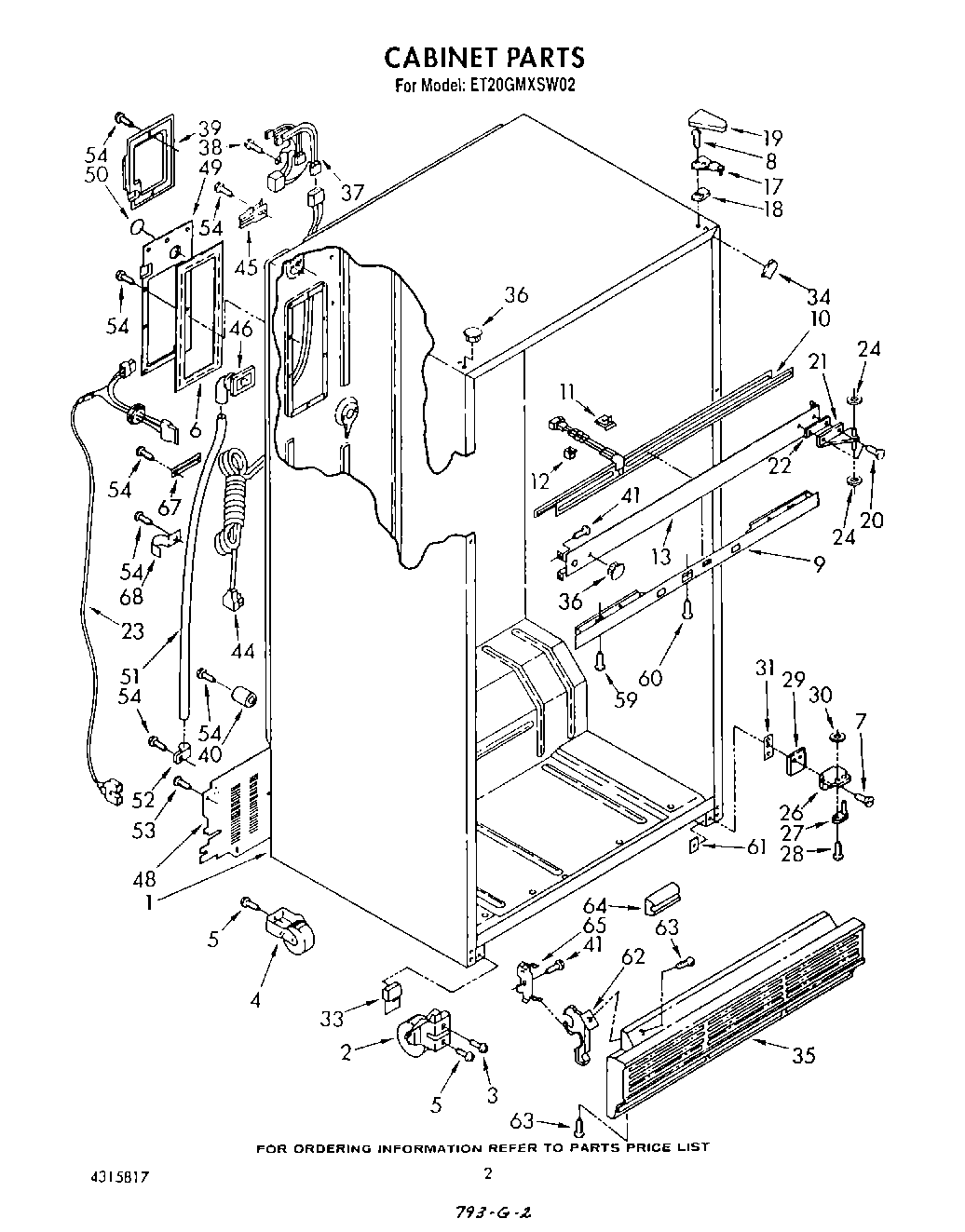

ET20GMXSW02 02 – CABINET

ET20GMXSW02 02 – CABINET

Written by

in

ET20GMXSW02 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	WPL 1114548
8	WP999367 Whirlpool Refrigerator Screw
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Mullion (3)
12	Spacer (2)
13	Center Rail (Platinum)
13	Center Rail (Toast)
13	Center Rail (Golden Harvest)
13	Center Rail (Almond)
13	Center Rail (White)
17	Hinge, Top
18	Shim, Hinge Top
19	Hinge Cover (Toast)
19	Hinge Cover (Golden Harvest)
19	1119787 Whirlpool Refrigerator Hinge Cover
20	Screw (Repair)
21	Hinge, Center
22	Shim, Center (Repair)
22	Shim, Hinge Center
23	WP2187501 Whirlpool Refrigerator Wire Harness
24	WP488296 Whirlpool Washer Refrigerator
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw
29	Shim, Bottom Hinge
30	WP489200 Whirlpool Refrigerator Washer
31	Spacer, Hinge
33	Corner Filler, Grille
34	Filler, Wrapper (Platinum)
34	Filler, Wrapper (White)
34	Filler, Wrapper (Golden Harvest)
34	Filler, Wrapper (Toast)
34	Filler, Wrapper (Almond)
35	Grille
36	Hole Plug (3) (Platinum)
36	Hole Plug (2) (Golden Harvest)
36	Hole Plug (2) (Almond)
36	Hole Plug (3) (Toast)
36	Hole Plug (2) (White)
37	Cabinet, Wiring Assembly
38	WP250830 Whirlpool Refrigerator Screw
39	Cover, Wiring
40	Bumper
41	W11624204 Whirlpool Screw
44	Cord, Service
45	Clamp
46	Fitting, Drain
48	Cover, Unit
49	Cover, Plug
50	WPL 1120224
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 836077
54	WP489478 Whirlpool Refrigerator Screw
54	SCREW
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap Plate
62	WP944224 Whirlpool Refrigerator Support
63	Screw, 8-22 x 5/16 (4)
64	Bumper, Grille
65	WPL 989068
67	Tube Clamp (2)
68	WPL 1110564
