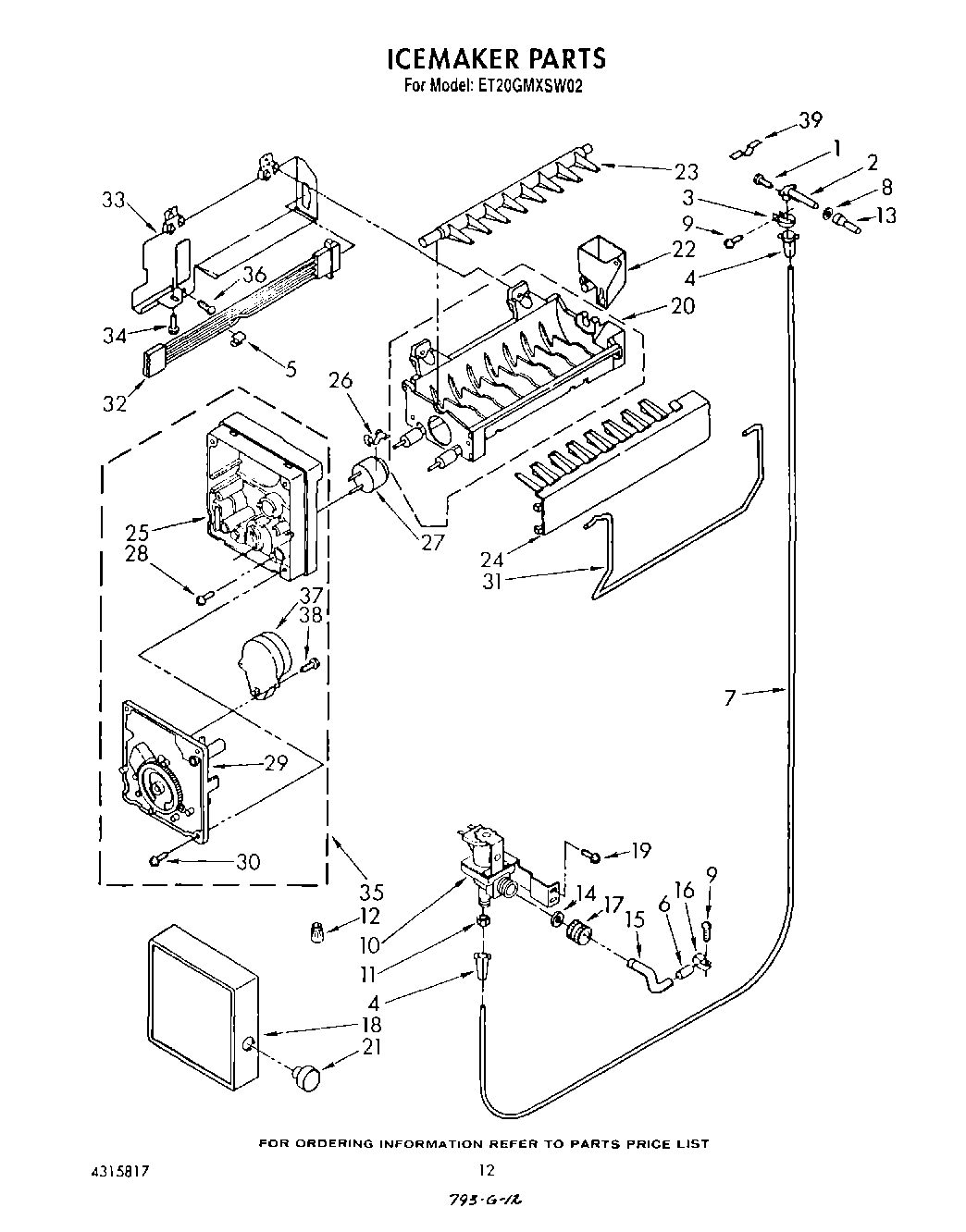

ET20GMXSW02 09 – ICE MAKER , LIT/OPTIONAL

ET20GMXSW02 09 – ICE MAKER , LIT/OPTIONAL

Written by

in

ET20GMXSW02 09 – ICE MAKER , LIT/OPTIONAL

Products

Position	Product
	WPL LIT628107
	WPL LIT4315817
	Torx Key
	WPL LIT1118773
	WPL LIT1114051
	WPL LIT1111994
2	WP2196157 Whirlpool Fill Tube
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
6	WP2158826 Whirlpool Refrigerator Dampener
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP489069 Whirlpool Compactor Screw
10	4318047 Whirlpool Water Valve
11	WP627018 Whirlpool Refrigerator Nut
12	Wire Connector
13	Tube, Water Inlet
14	WP16123 Whirlpool Washer
15	Tube, Inlet Valve
16	Clamp Tube
17	Nut, Valve
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	Knob, Water
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	Cement Alumilastic)
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	Screw, 10-32 x 49/64
30	WP681249 Whirlpool Screw Assembly
31	WP627792 Whirlpool Refrigerator Shut Off Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	Shield, Heat
34	WP489128 Whirlpool Refrigerator Screw
35	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
36	Screw, 8-15 x 1/2 (4)
38	489136 Whirlpool Refrigerator Screw
39	Silicone (Spray)
39	Golden Harvest
39	72113 Whirlpool Touch-Up Paint
39	350956 Whirlpool Spray Assembly
39	350930 Whirlpool White Spray Paint
39	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
39	Almond (Uncut)
39	Clip
39	Leveler (Thinner)
39	WP72107 Whirlpool Touchup
39	799344 Whirlpool Refrigerator Paint
39	72017 Whirlpool Appliance Touch-Up Paint White
39	Golden Harvest (Uncut)
39	72032 Whirlpool Touch Up Paint Black
39	212643 Whirlpool Refrigerator Permagum Sealer
39	WP542638 Whirlpool Refrigerator Grease
39	WP505587 Whirlpool Refrigerator Sealer
39	WP503695 Whirlpool Refrigerator Sealer
39	350942 Whirlpool Spray Paint
39	876370 Whirlpool Refrigerator Insulation
39	833938 Whirlpool Refrigerator Terminal
39	606755 Whirlpool Refrigerator Bag
39	TAPE, VINYL (3/4 X 108“)
39	CEMENT, ALUMILASTIC (1 1/4 OZ.)
39	285006 Whirlpool Spray
39	Toast
39	Paint, Spray (13 Oz.) (Platinum)
39	Enamal, Toast (1 Qt. Uncut)
39	Platinum (Uncut)
39	WPL 72112
39	WPL 876029
39	WPL 799833
39	511873 Whirlpool Refrigerator Paint
