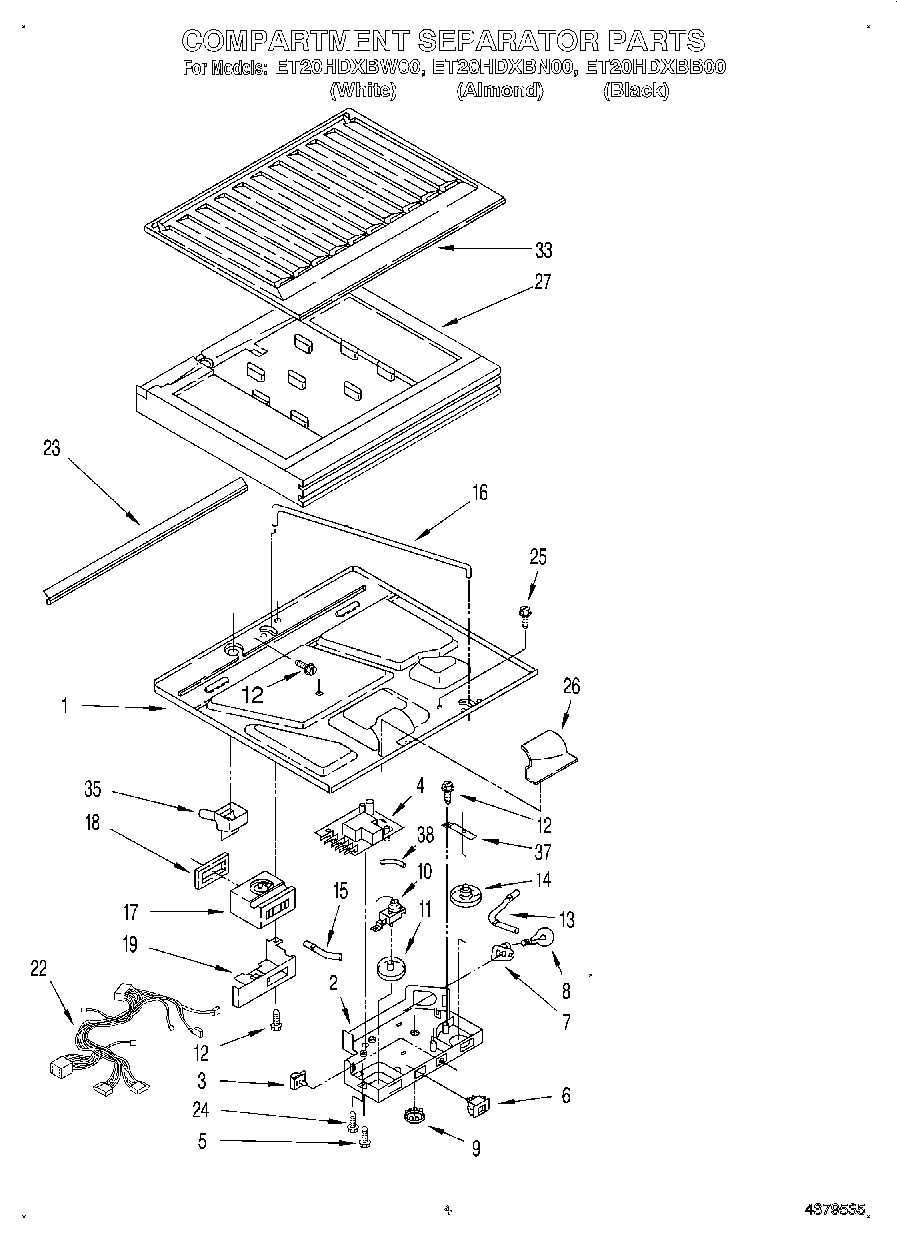

ET20HDXBN00 03 – COMPARTMENT SEPARATOR

ET20HDXBN00 03 – COMPARTMENT SEPARATOR

Written by

in

ET20HDXBN00 03 – COMPARTMENT SEPARATOR

Products

PositionProduct
1Bottom, Compartment Separator
2Box, Control
3WP2149705 Whirlpool Refrigerator Door Switch
44388931 Whirlpool Defrost Timer
5WP487353 Whirlpool Refrigerator Screw
6WP938213 Whirlpool Refrigerator Power Switch
74387478 Whirlpool Refrigerator Light Socket
8W11679940 Whirlpool Refrigerator Light Bulb Assembly
9940014 Whirlpool Refrigerator Primary Button Plug
101123394 Whirlpool Cold Control Thermostat
11Knob, Thermostat
12WP965173 Whirlpool Dishwasher Screw
13Light, Bar
14Knob, Air Control
15Light, Bar
16Rod, Connecting
17Air Diffuser Assembly
18Gasket, Air Diffuser
19Cover, Air Diffuser
22Wiring Assembly, Control Box
23Gasket, Bottom Separator
24WP250830 Whirlpool Refrigerator Screw
26Insulation, Filler
27Insulation, Compartment Separator
33Separator, Compartment (Top)
35Cup, Drain
37Bracket, Control Knob
38WP2196003 Whirlpool Refrigerator Bar Riser
