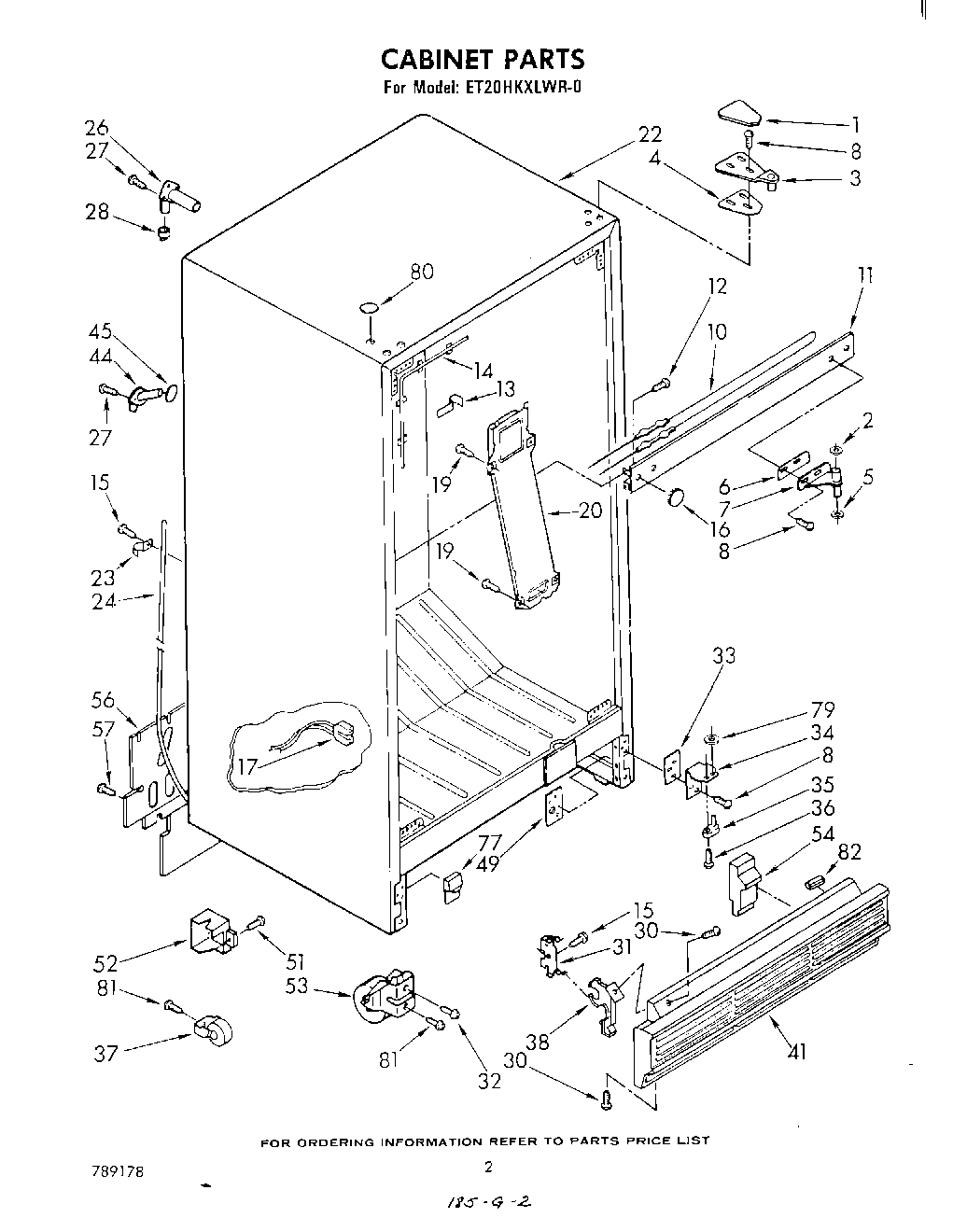

ET20HKXLWR0 02 – CABINET

Products

Position	Product
1	Hinge Cover (New Avocado)
1	Hinge Cover (Golden Harvest)
1	1119787 Whirlpool Refrigerator Hinge Cover
1	Hinge Cover (Toast)
1	Hinge, Cover (Coffee)
2	WP488296 Whirlpool Washer Refrigerator
3	Hinge, Top
4	Shim, Hinge
5	WP487802 Whirlpool Refrigerator Washer
6	Shim, Hinge Center
7	Hinge, Center
8	Screw (Repair)
8	WP999367 Whirlpool Refrigerator Screw
10	Heater, Mullion
11	WPL 1100304
11	WPL 1100303
11	Center Rail (Almond)
11	Center Rail (White)
11	Center Rail (Coffee)
11	Center Rail (Golden Harvest)
11	Center Rail (New Avocado)
12	Screw, 8 x 3/8
12	Screw (Repair)
13	WPL 935663
14	WPL 936075
15	W11624204 Whirlpool Screw
16	Hole Plug (Coffee)
16	Hole, Plug (White)
16	Hole Plug (Golden Harvest)
16	Hole Plug (New Avocado)
16	Hole Plug (2) (Platinum)
16	Hole, Plug (Almond)
16	Plug, Hole (2) (Toast)
17	WPL 548734
19	WP488488 Whirlpool Refrigerator Screw
20	Duct, Air
22	Cabinet (Not A Serviceable Part)
23	WPL 836077
24	8316810 Whirlpool Refrigerator Drain Tube
26	WP2196157 Whirlpool Fill Tube
27	WP98165 Whirlpool Screw
28	WP487996 Whirlpool Refrigerator Cap Tube
30	WPL 489085
31	WPL 989068
32	Screw, 5/16-24 x 1
33	Shim, Bottom Hinge
34	Hinge, Bottom
35	Hinge Pin, Bottom
36	Screw 10-32 x 5/16
37	WPW10250570 Whirlpool Refrigerator Cabinet Roller
38	WP944224 Whirlpool Refrigerator Support
41	Exterior, Grille (Platinum)
41	Exterior, Grille (White)
41	Exterior, Grille (Golden Harvest)
41	Exterior, Grille (Almond)
41	Exterior, Grille (Coffee)
41	Exterior, Grille (Toast)
41	Exterior Grille (New Avocado)
44	Drain Fitting
45	Gasket, Seal
49	Tap Plate
51	WP488729 Whirlpool Refrigerator Door Screw
52	WPL 549947
53	Roller, Front
54	WPL 836372
56	WPL 850459
77	Corner, Filler (
77	Filler, Grille (Platinum)
77	Filler, Grille (Toast)
77	WPL 989928
77	WPL 989929
77	WPL 989931
77	WPL 989930
80	Hole Plug (2) (White)
80	Hole Plug (3) (Platinum)
80	Hole Plug (New Avocado)
80	Hole Plug (3) (Toast)
80	Hole Plug (2) (Golden Harvest)
80	Hole Plug (2) (Almond)
80	Hole Plug (Coffee)
81	Screw, 1/4-28 x 1/2 (2)
82	Bumper, Grille
