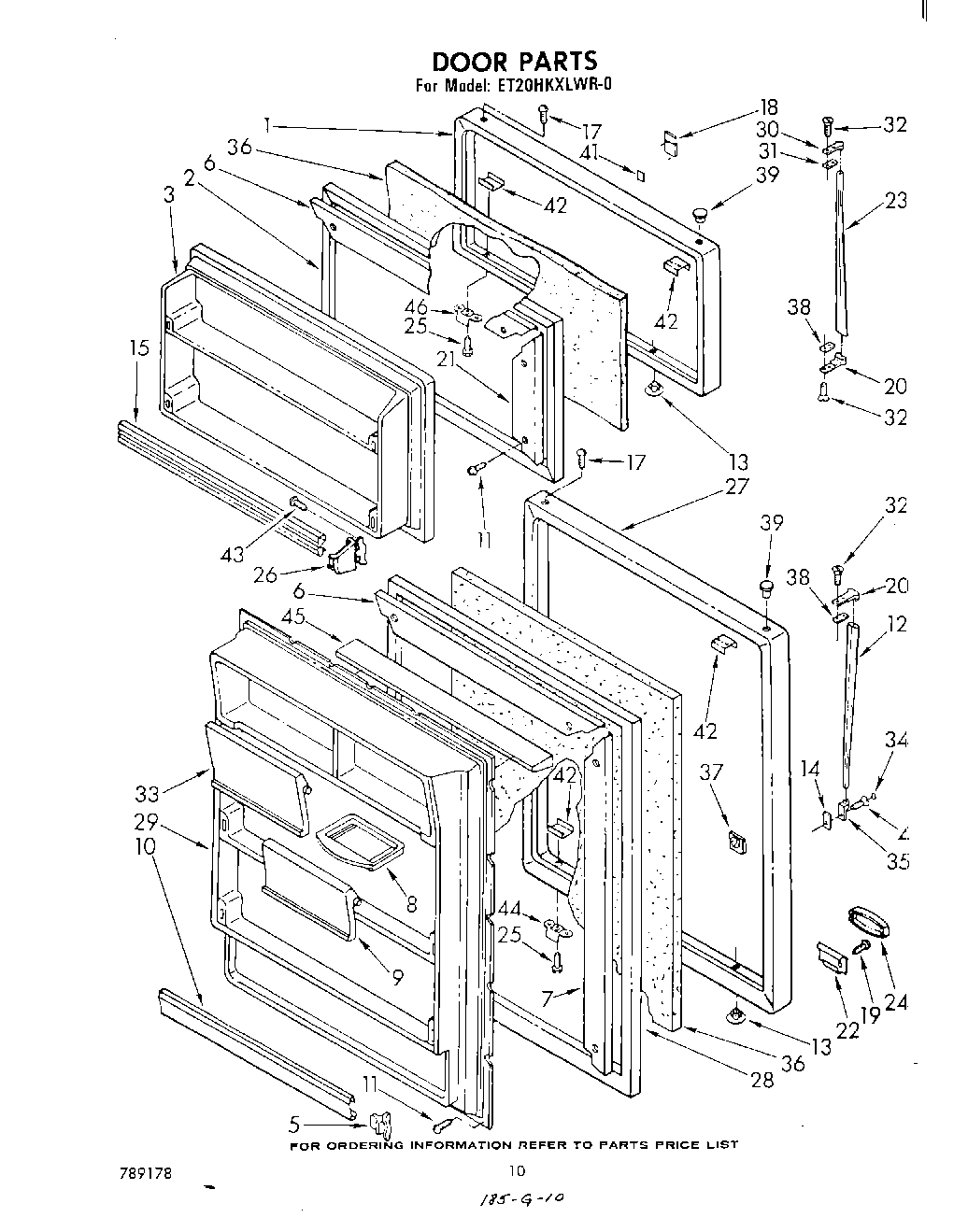

ET20HKXLWR0 06 – DOOR , NOT ILLUSTRATED AND OPTIONAL

ET20HKXLWR0 06 – DOOR , NOT ILLUSTRATED AND OPTIONAL

Written by

in

ET20HKXLWR0 06 – DOOR , NOT ILLUSTRATED AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
350942 Whirlpool Spray Paint
paint, spray 13 oz. (coffee)
Paint, Spray 13 Oz. (Avocado)
Golden Harvest
Leveler (Thinner)
350956 Whirlpool Spray Assembly
1Freezer Door (Toast)
1Door, Freezer (Also Order Item 36) (White)
1Door, Freezer (Also Order Item 36) (Golden Harvest)
1Door, Freezer (Also Order Item 36) (New Avocado)
1Door, Freezer (Also Order Item 36) (Coffee)
1Freezer Door (Platinum) (Also Order Item 41 When Replacing Door)
1Door, Freezer (Also Order Item 36) (Almond)
22188460A Whirlpool Refrigerator Door Gasket
3Panel, Interior
3Panel, Interior (For Platinum Model Only)
4WP488729 Whirlpool Refrigerator Door Screw
5WP839904 Whirlpool Refrigerator Endcap Trim
6Retainer, Gasket Top
7Retainer, Gasket Side
9Door, Butter
10Trim, Door Shelf
11SCREW
11W11624204 Whirlpool Screw
12Handle, Center
13Hole Plug (2)
14Shim, Handle End
15Trim, Shelf (2)
17WP8281206 Whirlpool Refrigerator Screw
18Insert, Nameplate
20WP2191883 Whirlpool Refrigerator Handle Endcap
21Retainer Gasket Side
22Clip, Medallion
23WPL 982944
24Medallion (Toast)
24Medallion (Coffee)
24Medallion (New Avocado)
24Medallion (White)
24Medallion (Platinum)
24Medallion (Golden Harvest)
24Medallion (Almond)
25Screw (Repair)
25WP488921 Whirlpool Refrigerator Screw
26WPL 943135
26Retainer, Trim (For Platinum Model
27Refrigerator Door (Platinum)
27Door, Refrigerator (Almond)
27Door, Refrigerator (New Avocado)
27Door, Refrigerator (Golden Harvest)
27Door, Refrigerator (Coffee)
27Door, Refrigerator (Toast)
27Door, Refrigerator (White)
282188450A Whirlpool Refrigerator Door Gasket
29Panel, Interior
29Interior Panel
30WP2191882 Whirlpool Refrigerator Handle End Cap
31Shim, Handle
32WP488920 Whirlpool Refrigerator Screw
32Screw (Repair)
33WPL 935209
34WP1101634 Whirlpool Refrigerator Cover
35WP2183139 Whirlpool Refrigerator Handle End Cap
37WP939101 Whirlpool Refrigerator Plate
38Spa
39Hole Plug (Platinum)
39Hole Plug (Toast)
39Hole Plug (New Avocado)
39Hole Plug (Coffee)
39WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
39Hole Plug (Almond)
41Tape Strip
42W10833053 Whirlpool Refrigerator Plate
44Bracket, Door Stop
45Support, Door Dike
46Paint, Spray (13 Oz.) (Platinum)
46Enamal, Toast (1 Qt. Uncut)
46Platinum (Uncut)
46Enamel, New Avocado (1 Qt. Uncut)
46WPL 72112
46Toast
46212643 Whirlpool Refrigerator Permagum Sealer
46511873 Whirlpool Refrigerator Paint
46Golden Harvest (Uncut)
4672113 Whirlpool Touch-Up Paint
46WPL 946597
46WPL 946957
4672110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
46Almond (Uncut)
46WP72107 Whirlpool Touchup
46799344 Whirlpool Refrigerator Paint
4672017 Whirlpool Appliance Touch-Up Paint White
46606755 Whirlpool Refrigerator Bag
46876370 Whirlpool Refrigerator Insulation
46Enamel, Coffee (1 Qt. Uncut)
46WPL 942935
46WPL 946953
46Bracket, Door Stop
46Paint, Touch-Up 1/2 Oz. (Coffee)
4672109 Whirlpool Dacor Avocado Touch-Up Paint
4672032 Whirlpool Touch Up Paint Black
46WPL 876029
46WPL 799833
46Enamel, Black (1 Qt. Uncut)
46CEMENT, ALUMILASTIC (1 1/4 OZ.)
46TAPE, VINYL (3/4 X 108“)
46WP542638 Whirlpool Refrigerator Grease
46WP505587 Whirlpool Refrigerator Sealer
46WP503695 Whirlpool Refrigerator Sealer
46WPL 799351
46WPL 789178
