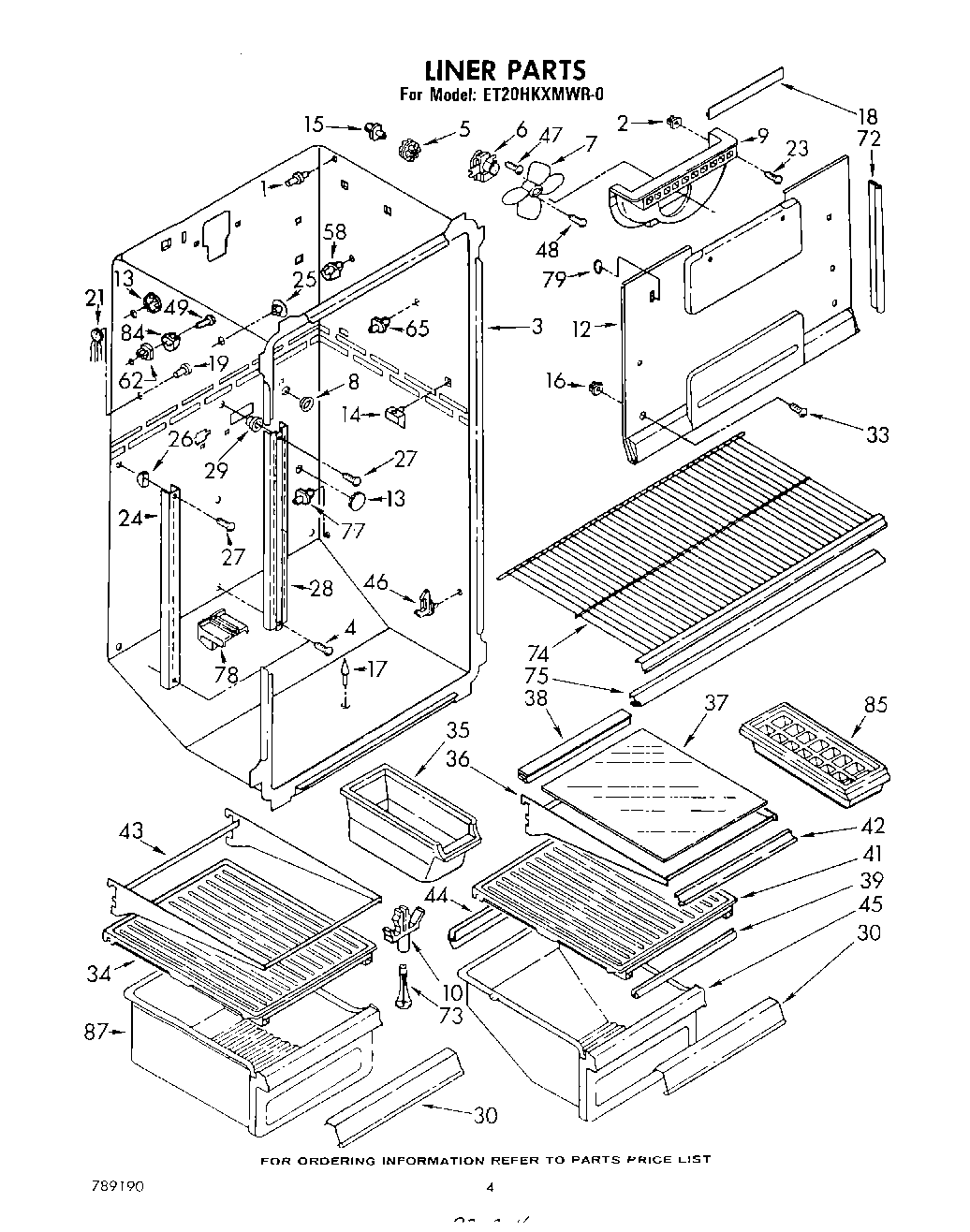

ET20HKXMWR0 03 – LINER

Products

Position	Product
1	Stud
2	Grommet
3	Liner (Not A Serviceable Part)
4	Screw, 8-32 x 1-1/4
4	Screw (Repair)
5	Grommet
6	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
7	WP1100938 Whirlpool Refrigerator Fan Blade
8	Grommet Drain Fitting
9	Scroll, Fan
10	Support, Cover
12	Cover, Evaporator
13	Hole, Plug
14	Retainer, Stud (4)
15	Screw, Grommet
16	Grommet
17	Grommet, Crisper Cover
18	Gasket, Sealing
19	Receptacle Cap
21	Wiring, Ice Maker
23	W11624204 Whirlpool Screw
24	Shelf, Ladder (2)
25	Hole, Plug
26	520965 Whirlpool Refrigerator Support
27	Screw, 8 x 1-1/4 (3)
28	Shelf, Ladder Center
29	Screw Support, Center Ladder (2)
30	Overlay, Pan
34	Pan, Cover
35	WP982704 Whirlpool Refrigerator Container
36	Shelf, Cantilever
37	Glass Shelf
38	Retainer, Glass Shelf
39	Crisper Gasket, Front
41	Pan, Cover
42	Trim, Shelf
43	Pan Shelf, Cantilever
44	Crisper Gasket, Rear
45	Crisper Pan (For Platinum Model Only)
45	Pan, Crisper (2)
46	Shelf, Stud
47	WP488488 Whirlpool Refrigerator Screw
48	WP487887 Whirlpool Refrigerator Screw
49	WP488729 Whirlpool Refrigerator Door Screw
58	Shelf Stud Saddle (R.S.)
62	Screw Grommet
65	Shelf, Stud (2)
72	Gasket, Evaporator
73	Post, Cover
74	Shelf, Freezer
75	Trim, Shelf
77	Shelf, Stud
78	Stud, Support Rear
79	Hole Plug, Evaporator
84	Shelf Stud, Saddle L.S.
85	WP841180A Whirlpool Microwave Glass Turntable Tray
87	Pan Meat, Plastic
87	Pan, Meat (For Platinum Model Only)
