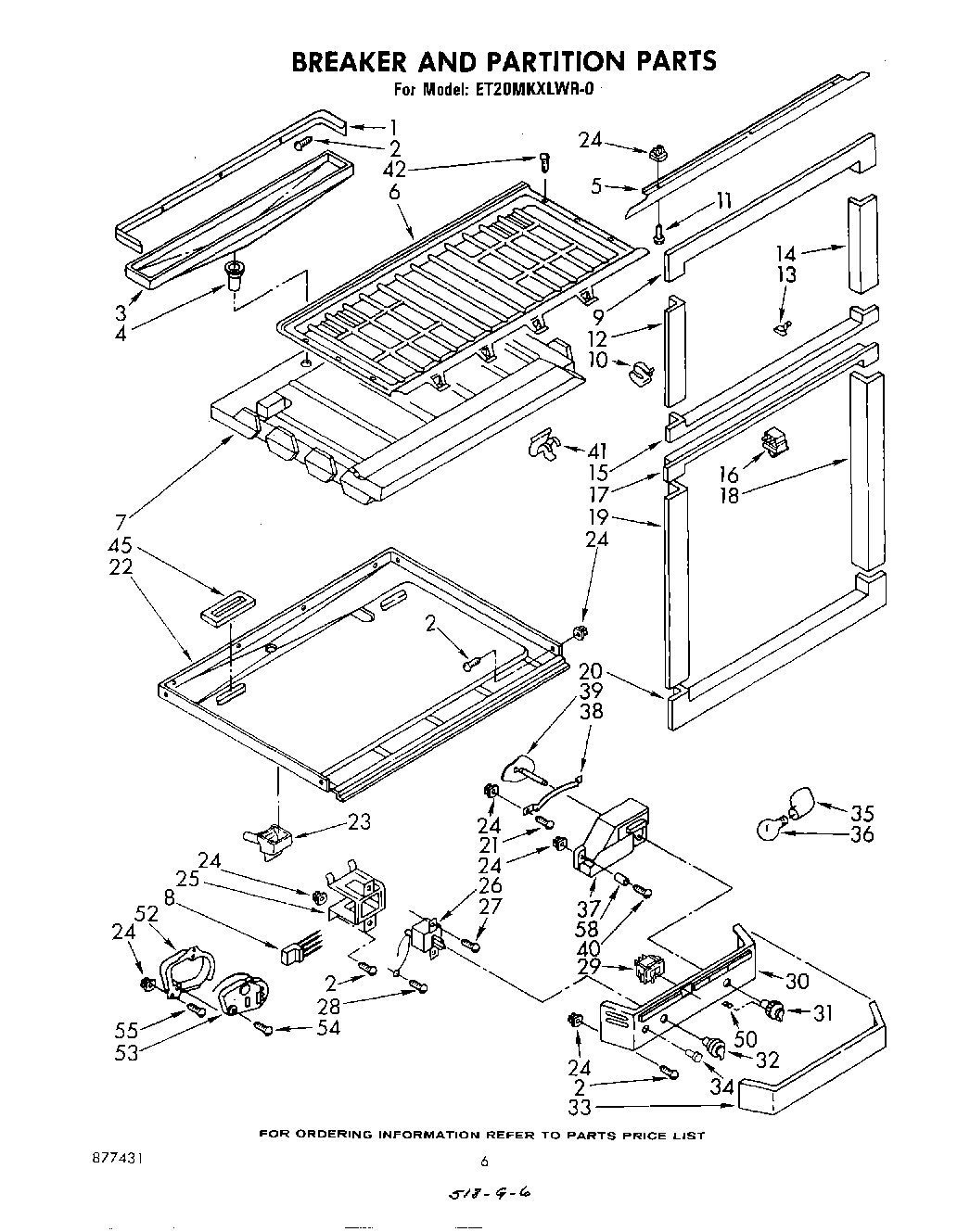

ET20MKXLWR0 04 – BREAKER AND PARTITION

Products

Position	Product
1	Gasket, Drain Pan
2	W11624204 Whirlpool Screw
3	Pan, Evaporator Drain
4	Fitting, Drain Pan
5	Baffle, Liner Top
6	Separator (Top)
7	Insulation, Separator
8	Liner Wiring (Defrost Timer)
9	Breaker, Top
10	Breaker, Clip
11	Screw, 8-15 x 1/2 (4)
12	Breaker L.S.
13	Breaker, Trim Clip
14	Breaker R.S.
15	Breaker, Mullion (Top)
16	W11384469 Whirlpool Door Switch
17	Breaker, Mullion Bottom
18	Breaker, R.S.
19	Breaker, L.S.
20	Breaker, Bottom
21	Screw, 8 x 3/8
22	Separator (Bottom)
23	Cup, Drain
24	Grommet
25	Bracket, Thermostat
26	WP819470 Whirlpool Refrigerator Thermostat
27	WP965173 Whirlpool Dishwasher Screw
28	WP489128 Whirlpool Refrigerator Screw
29	WP938213 Whirlpool Refrigerator Power Switch
30	Panel, Control
31	Control Knob
32	Knob, Temperature Control
33	Light Lens
34	Hole Plug (2)
35	4387478 Whirlpool Refrigerator Light Socket
36	RANGE ONLY 40W 120V APPL BULB
37	Air Diffuser
38	Retrainer, Air Dampener
39	Damper, Air
40	Screw, 8 x 1-1/4 (3)
41	Breaker, Retainer Clip (3)
42	WP488729 Whirlpool Refrigerator Door Screw
45	Gasket, Air Return
50	Knob, Retainer
52	Timer, Container
53	Defrost, Timer
53	Timer, Defrost (8 Hr.) (Alternate)
54	Screw, 8 x 3/8 (2)
55	WP489069 Whirlpool Compactor Screw
58	836667 Whirlpool Refrigerator Spacer
