ET20MKXLWR1 02 – CABINET

ET20MKXLWR1 02 – CABINET

Written by

in

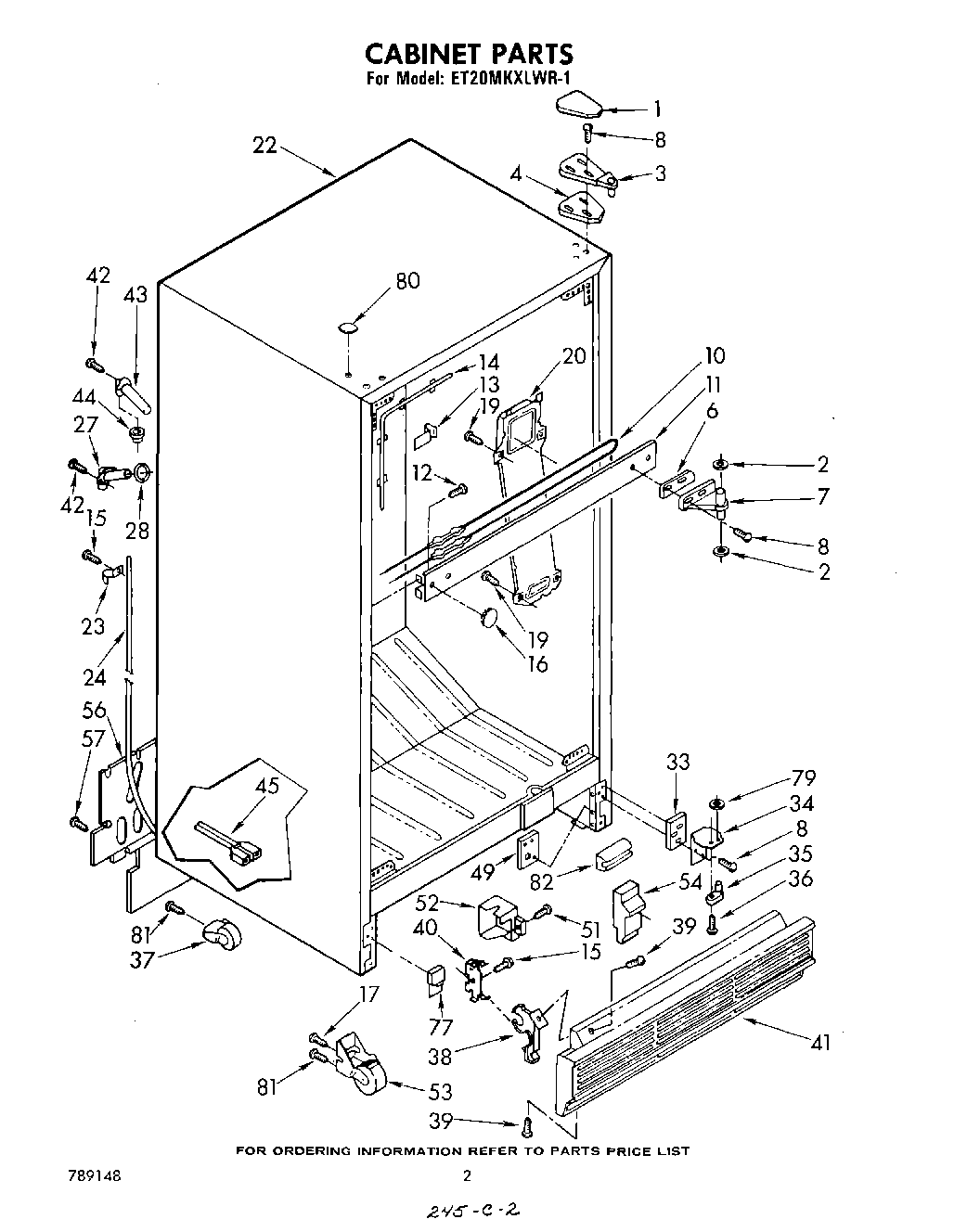

ET20MKXLWR1 02 – CABINET

Products

Position	Product
1	Hinge Cover (New Avocado)
1	Hinge Cover (Toast)
1	Hinge, Cover (Coffee)
1	1119787 Whirlpool Refrigerator Hinge Cover
1	Hinge Cover (Golden Harvest)
2	WP488296 Whirlpool Washer Refrigerator
3	Hinge, Top
4	Shim, Hinge
6	Shim, Hinge Center
7	Hinge, Center
8	WP999367 Whirlpool Refrigerator Screw
8	Screw (Repair)
10	Heater, Mullion
11	WPL 1100304
11	WPL 1100303
11	Center Rail (White)
11	Center Rail (New Avocado)
11	Center Rail (Coffee)
11	Center Rail (Golden Harvest)
11	Center Rail (Almond)
12	Screw (Repair)
12	Screw, 8 x 3/8
13	WPL 935663
14	WPL 936075
15	W11624204 Whirlpool Screw
16	Hole Plug (New Avocado)
16	Hole Plug (Golden Harvest)
16	Hole Plug (Coffee)
16	Hole, Plug (White)
16	Hole, Plug (Almond)
16	Hole Plug (2) (Platinum)
16	Plug, Hole (2) (Toast)
17	Screw, 5/16-24 x 1
19	WP488488 Whirlpool Refrigerator Screw
20	Duct, Air
22	Cabinet (Not A Serviceable Part)
23	WPL 836077
24	8316810 Whirlpool Refrigerator Drain Tube
27	Drain Fitting
28	Gasket, Seal
33	Shim, Bottom Hinge
34	Hinge, Bottom
35	Hinge Pin, Bottom
36	Screw 10-32 x 5/16
37	WPW10250570 Whirlpool Refrigerator Cabinet Roller
38	WP944224 Whirlpool Refrigerator Support
39	WPL 489085
40	WPL 989068
41	Exterior, Grille (Toast)
41	Exterior, Grille (Platinum)
41	Exterior, Grille (Coffee)
41	Exterior, Grille (Golden Harvest)
41	Exterior Grille (New Avocado)
41	Exterior, Grille (Almond)
41	Exterior, Grille (White)
42	WP98165 Whirlpool Screw
43	WP2196157 Whirlpool Fill Tube
44	WP487996 Whirlpool Refrigerator Cap Tube
45	WPL 548734
49	Tap Plate
51	WP488729 Whirlpool Refrigerator Door Screw
52	WPL 549947
53	Roller, Front
54	WPL 836372
56	WPL 850459
77	WPL 989930
77	Filler, Grille (Platinum)
77	WPL 989929
77	WPL 989931
77	Corner, Filler (
77	WPL 989928
77	Filler, Grille (Toast)
79	WP487802 Whirlpool Refrigerator Washer
80	Hole Plug (3) (Platinum)
80	Hole Plug (Coffee)
80	Hole Plug (2) (White)
80	Hole Plug (2) (Almond)
80	Hole Plug (2) (Golden Harvest)
80	Hole Plug (3) (Toast)
80	Hole Plug (New Avocado)
81	Screw, 1/4-28 x 1/2 (2)
82	Bumper, Grille
