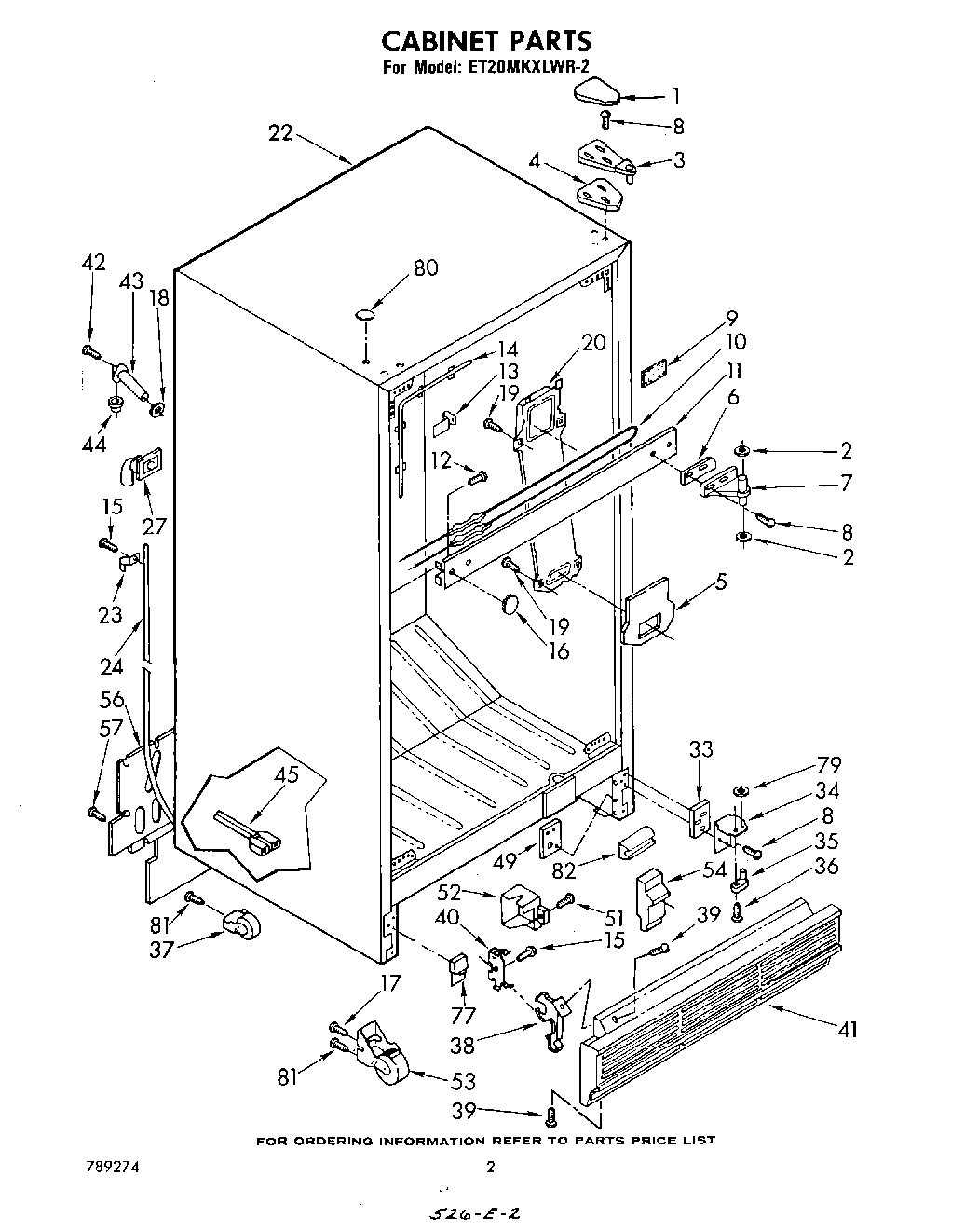

ET20MKXLWR2 02 – CABINET

ET20MKXLWR2 02 – CABINET

Written by

in

ET20MKXLWR2 02 – CABINET

Products

PositionProduct
1Hinge Cover (Golden Harvest)
1Hinge Cover (Toast)
11119787 Whirlpool Refrigerator Hinge Cover
1Hinge, Cover (Coffee)
2WP488296 Whirlpool Washer Refrigerator
3Hinge, Top
4Shim, Hinge
5Air Duct Outlet
6Shim, Hinge Center
7Hinge, Center
8Screw (Repair)
8WP999367 Whirlpool Refrigerator Screw
9Seal, Strip
10Heater, Mullion
11Center Rail (Coffee)
11WPL 1100303
11Center Rail (White)
11Center Rail (Golden Harvest)
11Center Rail (Almond)
11WPL 1100304
12Screw (Repair)
12Screw, 8 x 3/8
13WPL 935663
14WPL 936075
15W11624204 Whirlpool Screw
16Hole Plug (Golden Harvest)
16Hole Plug (2) (Platinum)
16Hole, Plug (Almond)
16Hole, Plug (White)
16Plug, Hole (2) (Toast)
16Hole Plug (Coffee)
17Screw, 5/16-24 x 1
18WP1106508 Whirlpool Refrigerator Gasket
19WP488488 Whirlpool Refrigerator Screw
20Duct, Air
22Cabinet (Not A Serviceable Part)
23WPL 836077
248316810 Whirlpool Refrigerator Drain Tube
27WPL 841687
33Shim, Bottom Hinge
34Hinge, Bottom
35Hinge Pin, Bottom
36Screw 10-32 x 5/16
37WPW10250570 Whirlpool Refrigerator Cabinet Roller
38WP944224 Whirlpool Refrigerator Support
39WPL 489085
40WPL 989068
41Exterior, Grille (Platinum)
41Exterior, Grille (Almond)
41Exterior, Grille (Coffee)
41Exterior, Grille (Toast)
41Exterior, Grille (White)
41Exterior, Grille (Golden Harvest)
42WP98165 Whirlpool Screw
43WP2196157 Whirlpool Fill Tube
44WP487996 Whirlpool Refrigerator Cap Tube
45WPL 548734
49Tap Plate
51WP488729 Whirlpool Refrigerator Door Screw
52WPL 549947
53Roller, Front
54WPL 836372
56WPL 850459
77Corner, Filler (
77WPL 989929
77WPL 989931
77WPL 989928
77Filler, Grille (Platinum)
77Filler, Grille (Toast)
79WP487802 Whirlpool Refrigerator Washer
80Hole Plug (3) (Platinum)
80Hole Plug (2) (White)
80Hole Plug (3) (Toast)
80Hole Plug (2) (Almond)
80Hole Plug (2) (Golden Harvest)
80Hole Plug (Coffee)
81Screw, 1/4-28 x 1/2 (2)
82Bumper, Grille
