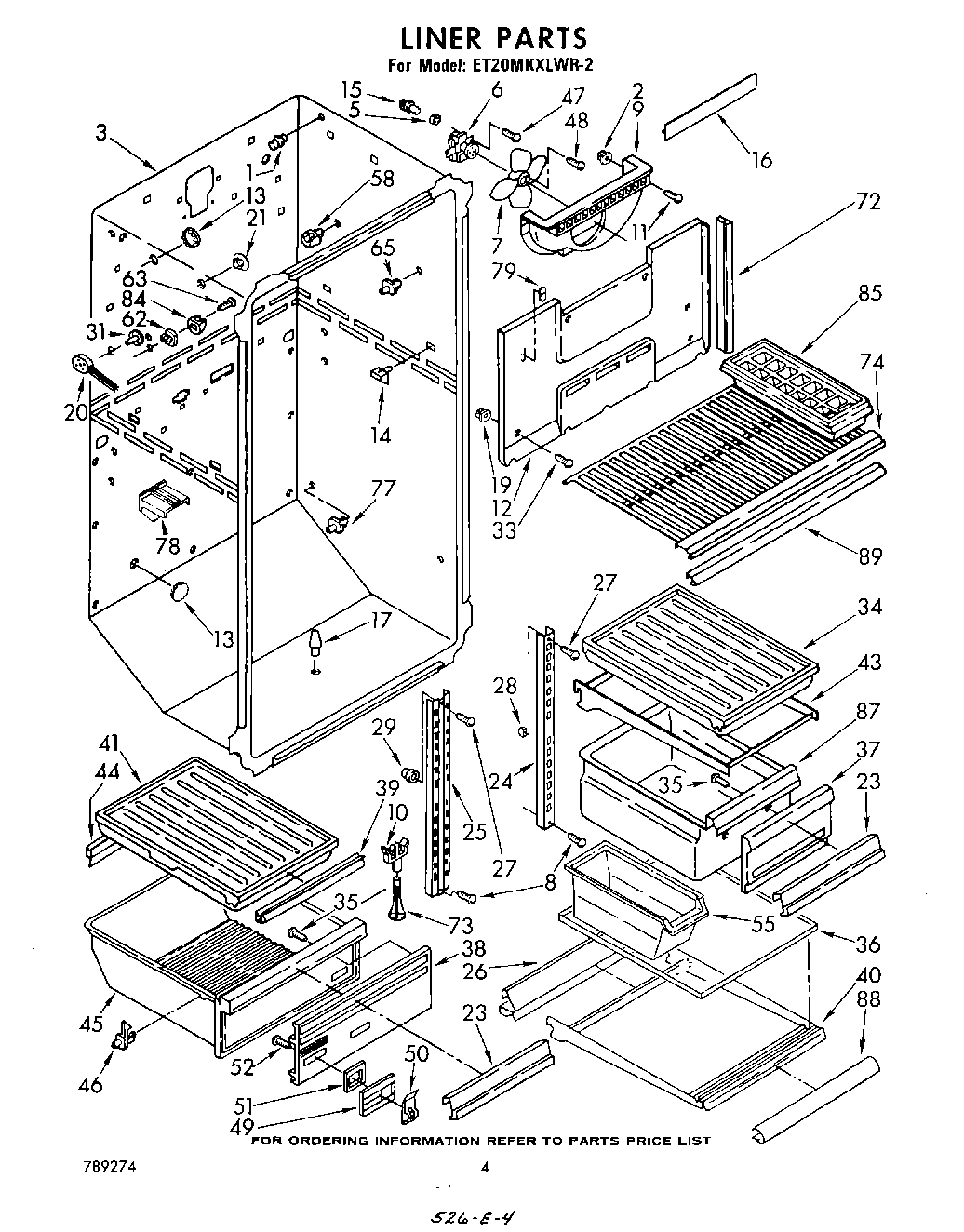

ET20MKXLWR2 03 – LINER

Products

Position	Product
1	Stud
2	Grommet
3	Liner (Not A Serviceable Part)
5	Grommet
6	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
7	WP1100938 Whirlpool Refrigerator Fan Blade
8	Screw, 8-32 x 1-1/4
8	Screw (Repair)
9	Scroll, Fan
10	Support, Cover
11	W11624204 Whirlpool Screw
12	Cover, Evaporator
13	Hole, Plug
14	Retainer, Stud (4)
15	Screw, Grommet
16	Gasket, Sealing
17	Grommet, Crisper Cover
19	Grommet
20	Wiring, Ice Maker
21	Hole, Plug
23	Overlay, Pan
24	Shelf, Ladder (2)
25	Shelf, Ladder Center
26	Reflector, Shelf
27	Screw, 8 x 1-1/4 (3)
28	520965 Whirlpool Refrigerator Support
29	Screw Support, Center Ladder (2)
31	Receptacle Cap
34	Cover, Meat Pan
35	Screw (Repair)
36	Glass Shelf
37	Front Cover, Meat Pan (For Platinum Model Only)
37	Front Cover, Meat Pan
38	Cover, Crisper (Front)
38	Crisper, Front Cover (For Platinum Model Only)
39	Gasket, Front (2)
40	Shelf, Cantilever
41	Slide & Cover, Pan (2)
43	Shelf, Cantilever (Meat Pan)
44	Crisper Gasket, Rear
45	Pan, Crisper (2)
46	Shelf, Stud
47	WP488488 Whirlpool Refrigerator Screw
48	WP487887 Whirlpool Refrigerator Screw
49	Housing, Humidity Control
50	Slide, Humidity Control
51	Seal, Humidity Control
52	Screw, 6-19 x 7/16
55	WP982704 Whirlpool Refrigerator Container
58	Shelf Stud Saddle (R.S.)
62	Screw Grommet
63	WP488729 Whirlpool Refrigerator Door Screw
65	Shelf, Stud (2)
72	Gasket, Evaporator
73	Post, Cover
74	Shelf, Freezer
77	Shelf, Stud
78	Stud, Support Rear
79	Hole Plug, Evaporator
84	Shelf Stud, Saddle L.S.
85	WP841180A Whirlpool Microwave Glass Turntable Tray
87	Pan, Meat
88	Trim, Shelf
89	Trim, Shelf
