ET20NKXAN02 04 – SHELF

ET20NKXAN02 04 – SHELF

Written by

in

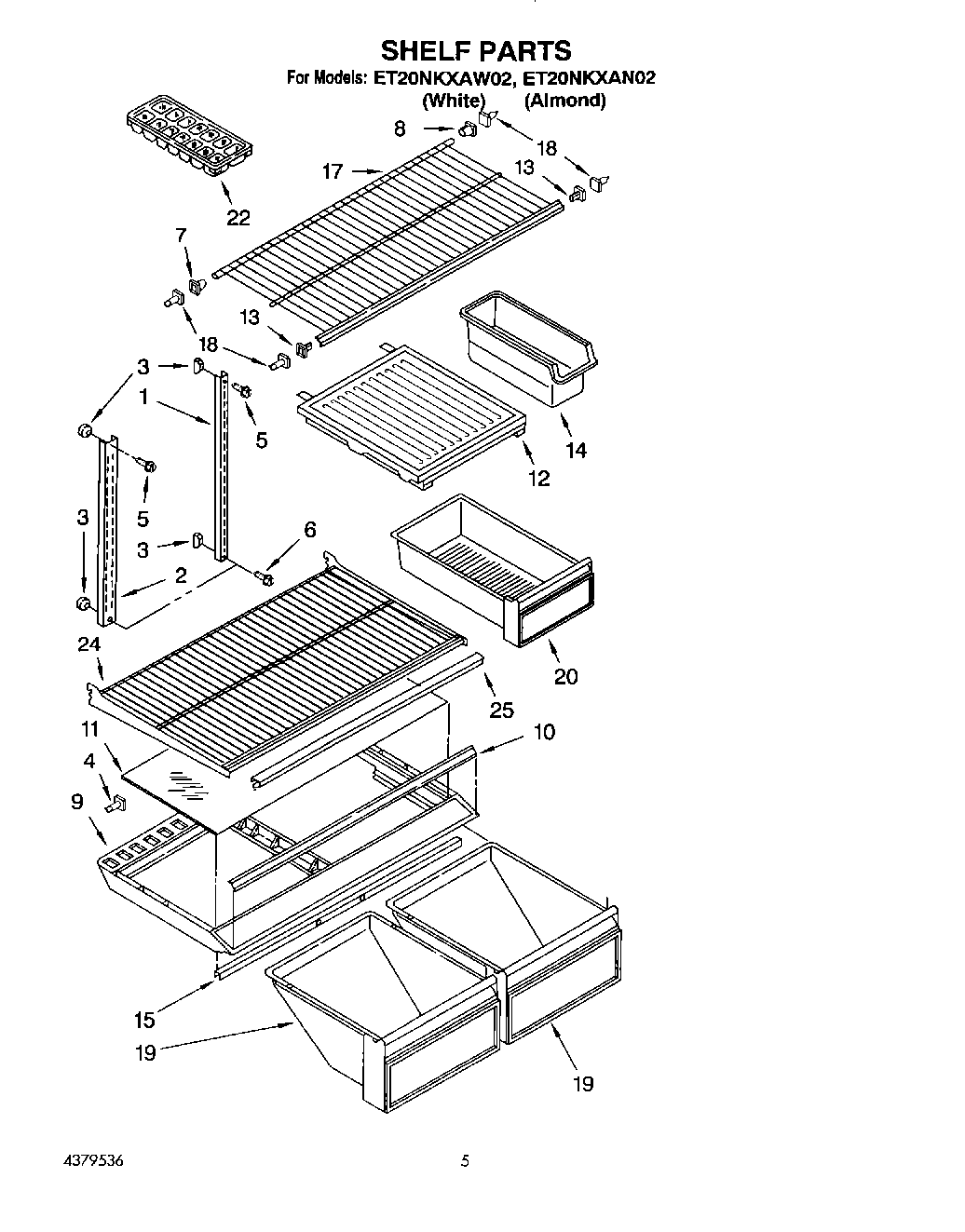

ET20NKXAN02 04 – SHELF

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
3520965 Whirlpool Refrigerator Support
4W10854959 Whirlpool Refrigerator Shelf Stud
5Screw (3)
6WP488163 Whirlpool Refrigerator Screw
8819091 Whirlpool Refrigerator Shelf Stud
9WP2151749 Whirlpool Refrigerator Cover
10Trim, Crisper Cover
11Glass, Crisper Cover
12Cover, Meat Pan
13Stud, Front R.S.
14WP982704 Whirlpool Refrigerator Container
15WP2172748 Whirlpool Drawer Support
17Shelf, Freezer
18Stud, Support
19Pan, Crisper
20Pan, Meat
22WP841180A Whirlpool Microwave Glass Turntable Tray
24Shelf, Full Cantilever (2)
25Trim, Shelf
