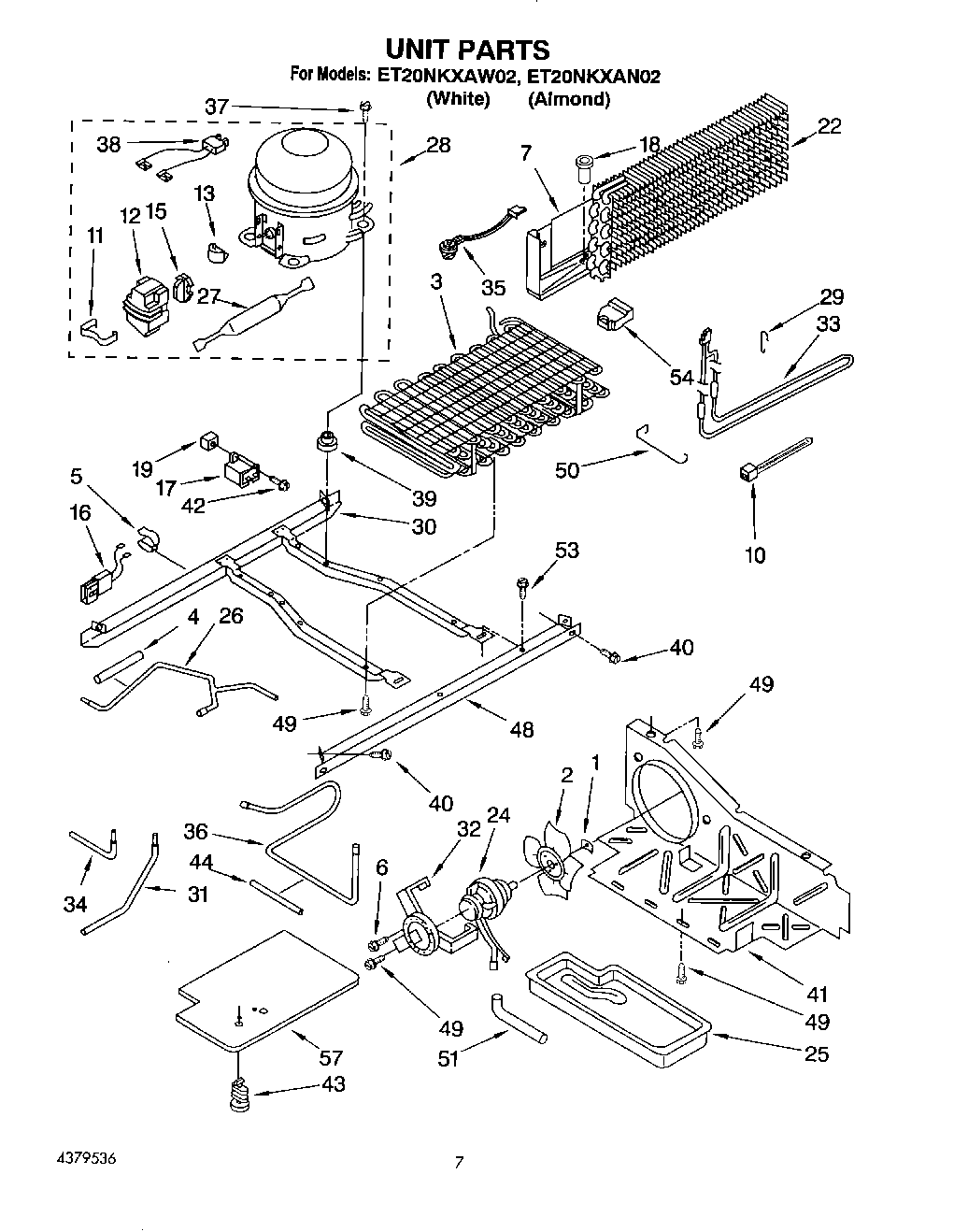

ET20NKXAW02 06 – UNIT

ET20NKXAW02 06 – UNIT

Written by

in

ET20NKXAW02 06 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP2158826 Whirlpool Refrigerator Dampener
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan/ Heat Shield
10	WPW10339879 Whirlpool Wire Tie
11	case spring
12	Case, Relay
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	Overload (Production (Includes Relay))
13	OVERLOAD
15	Relay (See Overload)
16	Housing Plug
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
17	Running Capacitor (Service)
18	Drain Fitting
19	Screw Grommet
22	Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Tube, Dishcharge
27	W10843121 Whirlpool Refrigerator Tube
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	W10309990 Whirlpool Refrigerator Compressor
29	Support, Heater
30	Unit Mounting Frame
31	Tube, Condenser To Heat Loop
32	Fan, Motor Bracket
33	Heater, Defrost
34	2154109 Whirlpool Refrigerator Tube
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
36	Tube, Suction
37	Screw
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
39	Grommet (Production)
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
42	W11693756 Whirlpool Screw Assembly
43	489396 Whirlpool Refrigerator Clip
44	SLEEVE
48	Unit Mounting Rail
49	WP489464 Whirlpool Refrigerator Screw
50	1105612 Whirlpool Fan Guard
51	Drain Extension
53	WP489427 Whirlpool Refrigerator Screw
54	Support (R.S.)
54	Support-Evaporator (L.S.)
57	978026 Whirlpool Refrigerator Primary Valve
57	VALVE, ACCESS (5/8“)
57	876764 Whirlpool Refrigerator Primary Valve
57	VALVE, ACCESS (1/2“)
57	Cover-Unit Btm.
57	WP978025 Whirlpool Refrigerator Valve
57	978027 Whirlpool Refrigerator Primary Valve
57	978030 Whirlpool Refrigerator Valve
