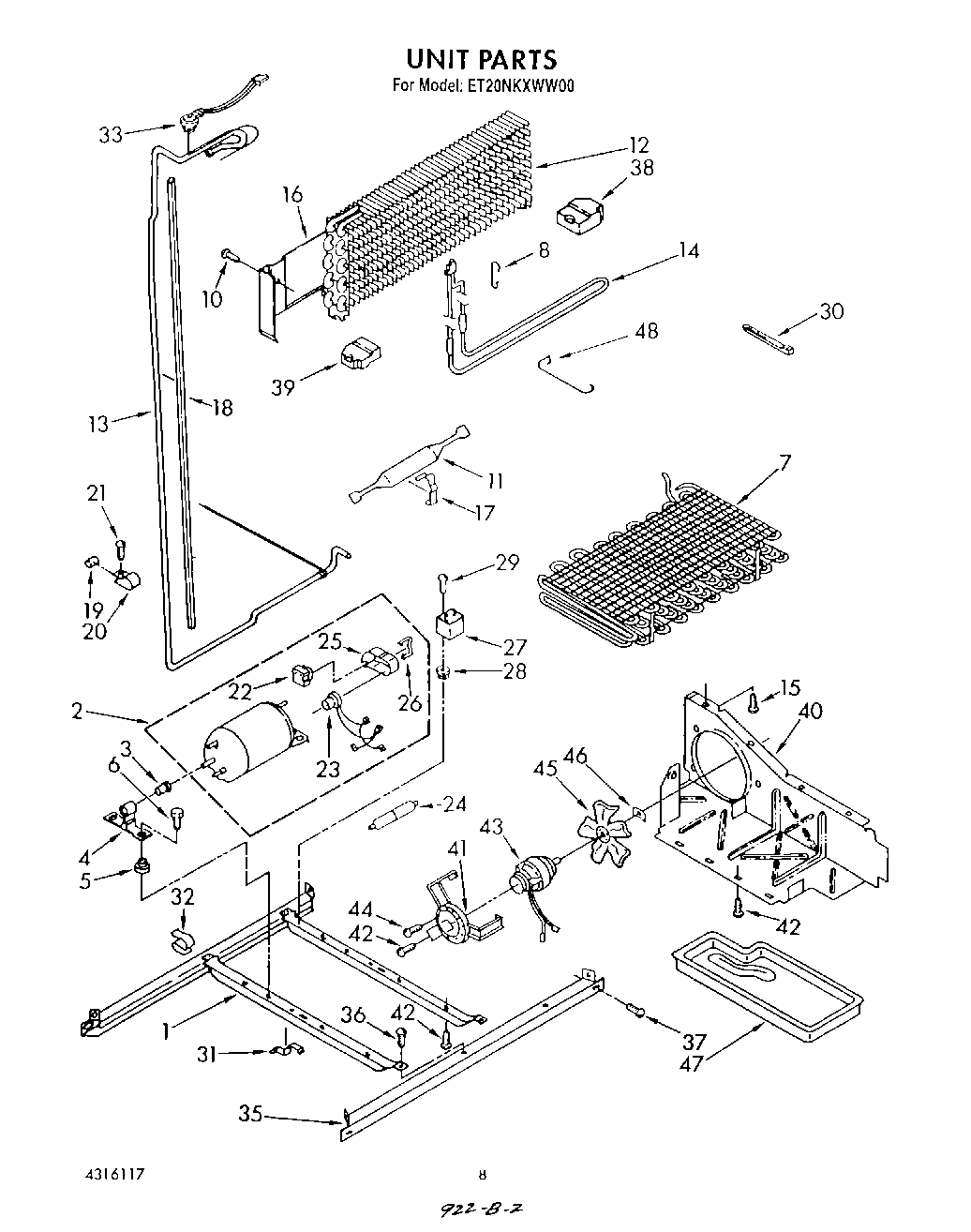

ET20NKXWN00 07 – UNIT

Products

Position	Product
1	Unit, Frame
2	Compressor KIt Includes Items (22, 23, 25, 26)
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser Assembly
8	Support, Heater
10	WP965173 Whirlpool Dishwasher Screw
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator
13	Heat, Exchanger
14	Heater, Defrost
15	WP489478 Whirlpool Refrigerator Screw
16	Heat Shield Evaporator
17	Clamp, Dryer
18	WP2002171 Whirlpool Refrigerator Sleeve
19	Dampener (2)
20	Clamp Tube
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Start Relay
22	Relay, (For Service Compressor Only)
23	Overload, (For Service Compressor Only)
23	Overload
24	Muffler
25	Terminal Cover
26	Strap, Cover
27	WPW10662129 Whirlpool Refrigerator Run Capacitor
28	Screw Grommet
29	W11693756 Whirlpool Screw Assembly
30	Strap
31	Clip (2)
32	Clip, Wire (2)
33	WP4387500 Whirlpool Refrigerator Bimetallic Defrost
35	Unit Mounting Rail
36	WP489427 Whirlpool Refrigerator Screw
37	489340 Whirlpool Refrigerator Screw
38	Support (R.S.)
39	Support, Evaporator (L.S.)
40	Air, Baffle
41	Bracket, Motor
42	Screw, 8 x 3/8
43	833697 Whirlpool Condenser Fan Motor
44	681390 Whirlpool Refrigerator Screw
45	Fan, Blade
46	WP486692 Whirlpool Refrigerator Nut
47	WPW10614158 Whirlpool Refrigerator Evaporator Tray
48	VALVE, ACCESS (5/8“)
48	978026 Whirlpool Refrigerator Primary Valve
48	978027 Whirlpool Refrigerator Primary Valve
48	WP978025 Whirlpool Refrigerator Valve
48	978030 Whirlpool Refrigerator Valve
48	1105612 Whirlpool Fan Guard
48	VALVE, ACCESS (1/2“)
48	876764 Whirlpool Refrigerator Primary Valve
