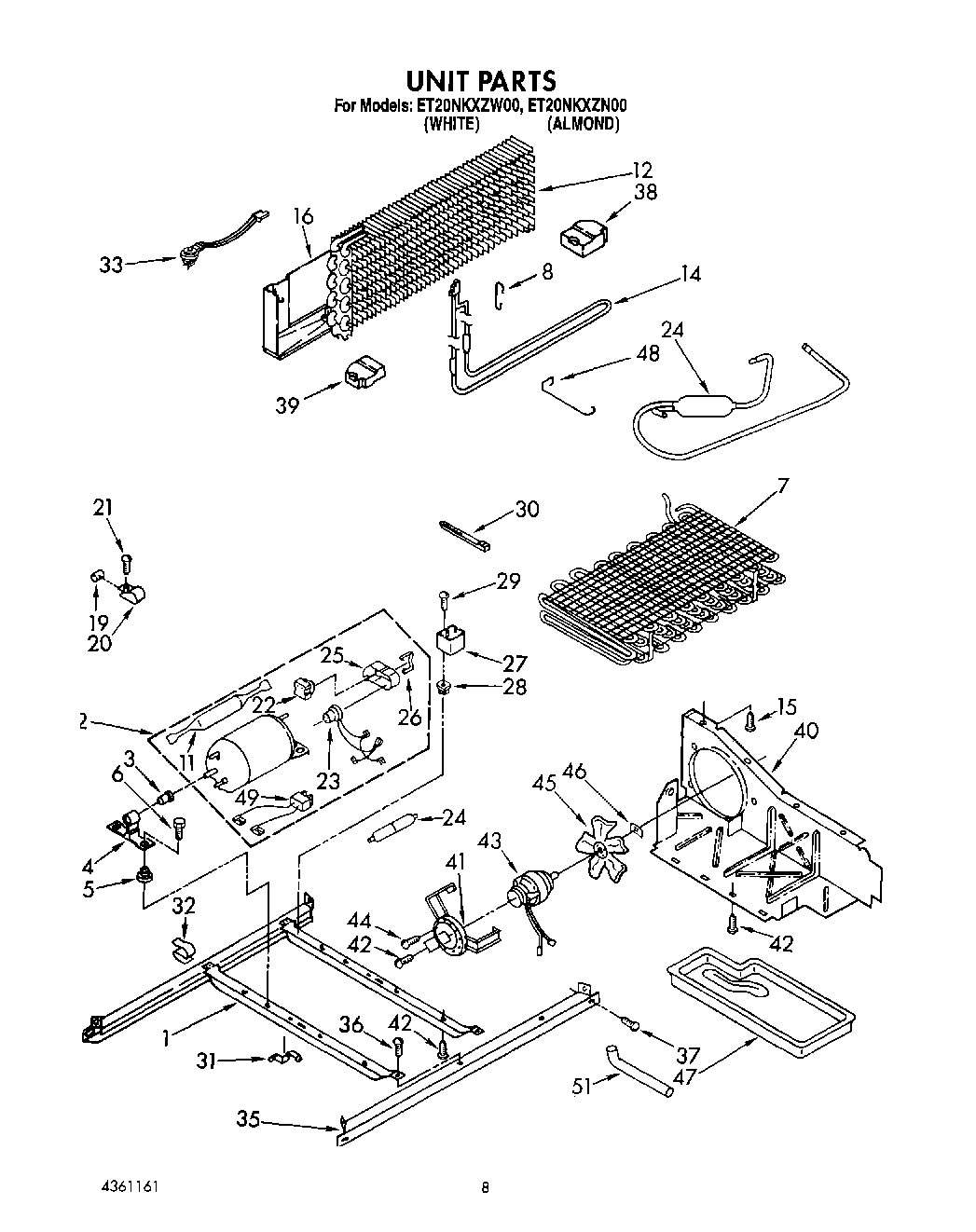

ET20NKXZN00 06 – UNIT

Products

Position	Product
1	Unit, Frame
2	Compressor Kit (Includes Items 11, 22, 23, 25, 26, 27) (Service Compressor May Look Different Than O
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
5	876811 Whirlpool Grommet
6	Screw (4)
7	Condenser Assembly
8	Support, Heater
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator
14	Heater, Defrost
16	Drain Pan/ Heat Shield
19	Dampener (2)
19	WP2158826 Whirlpool Refrigerator Dampener
20	Clamp Tube
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Relay (See Overload)
23	OVERLOAD
23	Overload
24	Muffler
25	Terminal Cover (Service)
25	Cover
26	Strap, Cover
26	Strap
27	WPW10662129 Whirlpool Refrigerator Run Capacitor
27	Running Capacitor (Service)
28	Screw Grommet
29	WP489478 Whirlpool Refrigerator Screw
30	WPW10339879 Whirlpool Wire Tie
31	Clip (2)
32	Clip, Wire (2)
33	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
35	Unit Mounting Rail
36	WP489427 Whirlpool Refrigerator Screw
37	489340 Whirlpool Refrigerator Screw
38	Support (R.S.)
39	Support (L.S.)
40	Air, Baffle
41	Bracket, Motor
42	Screw, 8 x 3/8
43	833697 Whirlpool Condenser Fan Motor
44	681390 Whirlpool Refrigerator Screw
45	Fan, Blade
46	WP486692 Whirlpool Refrigerator Nut
47	WPW10614158 Whirlpool Refrigerator Evaporator Tray
48	1105612 Whirlpool Fan Guard
49	WP2172890 Whirlpool Refrigerator Wire
51	WP978025 Whirlpool Refrigerator Valve
51	978026 Whirlpool Refrigerator Primary Valve
51	VALVE, ACCESS (5/8“)
51	876764 Whirlpool Refrigerator Primary Valve
51	978027 Whirlpool Refrigerator Primary Valve
51	VALVE, ACCESS (1/2“)
51	978030 Whirlpool Refrigerator Valve
51	Drain Extension
