ET20NMXAW02 04 – SHELF

ET20NMXAW02 04 – SHELF

Written by

in

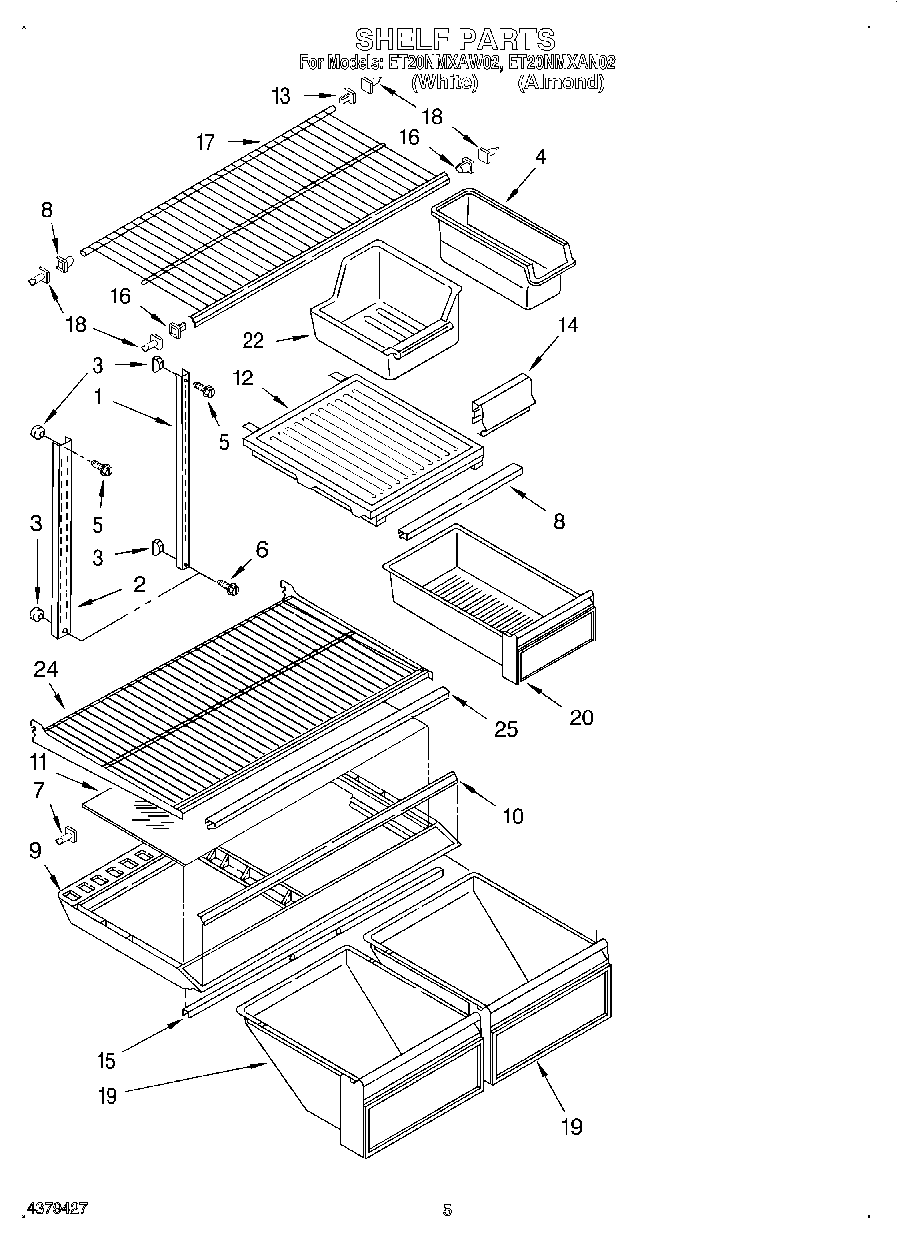

ET20NMXAW02 04 – SHELF

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
3520965 Whirlpool Refrigerator Support
4WP982704 Whirlpool Refrigerator Container
5Screw (3)
6WP488163 Whirlpool Refrigerator Screw
7W10854959 Whirlpool Refrigerator Shelf Stud
8Trim
9WP2151749 Whirlpool Refrigerator Cover
10Trim, Crisper Cover
11Glass, Crisper Cover
12Cover, Meat Pan
13819091 Whirlpool Refrigerator Shelf Stud
14Trim Ice Pan
15WP2172748 Whirlpool Drawer Support
16Stud, Front R.S.
17Shelf, Freezer
18Stud, Support
19Pan, Crisper
20Pan, Meat
22Pan-Ice Cube
24Shelf, Full Cantilever (2)
25Trim, Shelf
