ET20NMXDN00 06 – ICEMAKER, LIT/OPTIONAL

ET20NMXDN00 06 – ICEMAKER, LIT/OPTIONAL

Written by

in

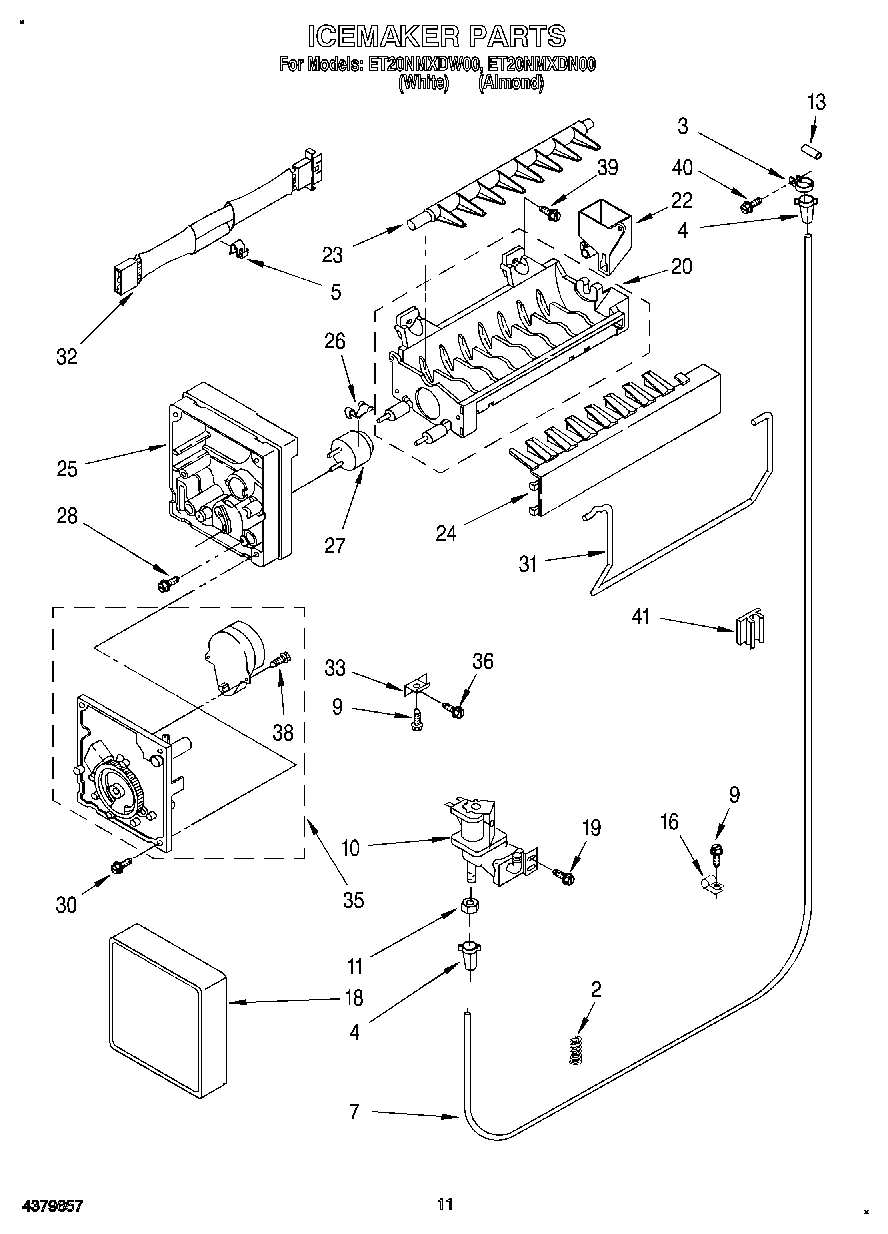

ET20NMXDN00 06 – ICEMAKER, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2172667
	WPL LIT2172500
	Modular Icemaker Service Sheet
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT2180423
	WPL LIT677971
	Torx Key
2	Spring
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
7	W10823511 Whirlpool Refrigerator Water Tube
9	WP489478 Whirlpool Refrigerator Screw
10	VALVE-INLT
11	WP627018 Whirlpool Refrigerator Nut
13	Tube, Water Inlet
16	WP488366 Whirlpool Refrigerator Clamp
18	2174157 Whirlpool Refrigerator Front Cover
19	WP489463 Whirlpool Refrigerator Screw
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	Cement Alumilastic)
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	WP627792 Whirlpool Refrigerator Shut Off Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	W11500948 Whirlpool Refrigerator Bracket
35	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
36	WP489442 Whirlpool Refrigerator Screw
38	489136 Whirlpool Refrigerator Screw
39	WP488163 Whirlpool Refrigerator Screw
40	WP488787 Whirlpool Refrigerator Screw
41	W11501419 Whirlpool Refrigerator Clip
41	285006 Whirlpool Spray
41	Almond (Uncut)
41	350956 Whirlpool Spray Assembly
41	72017 Whirlpool Appliance Touch-Up Paint White
41	WP72107 Whirlpool Touchup
41	72032 Whirlpool Touch Up Paint Black
41	799344 Whirlpool Refrigerator Paint
41	Door Reversal Instructions
41	WP542638 Whirlpool Refrigerator Grease
41	212643 Whirlpool Refrigerator Permagum Sealer
41	350942 Whirlpool Spray Paint
41	606755 Whirlpool Refrigerator Bag
41	833938 Whirlpool Refrigerator Terminal
41	876370 Whirlpool Refrigerator Insulation
41	WP503695 Whirlpool Refrigerator Sealer
41	WP505587 Whirlpool Refrigerator Sealer
41	TAPE, VINYL (3/4 X 108“)
41	CEMENT, ALUMILASTIC (1 1/4 OZ.)
41	WPL 799832
41	WPL 799833
41	WPL 876029
41	511873 Whirlpool Refrigerator Paint
41	350930 Whirlpool White Spray Paint
