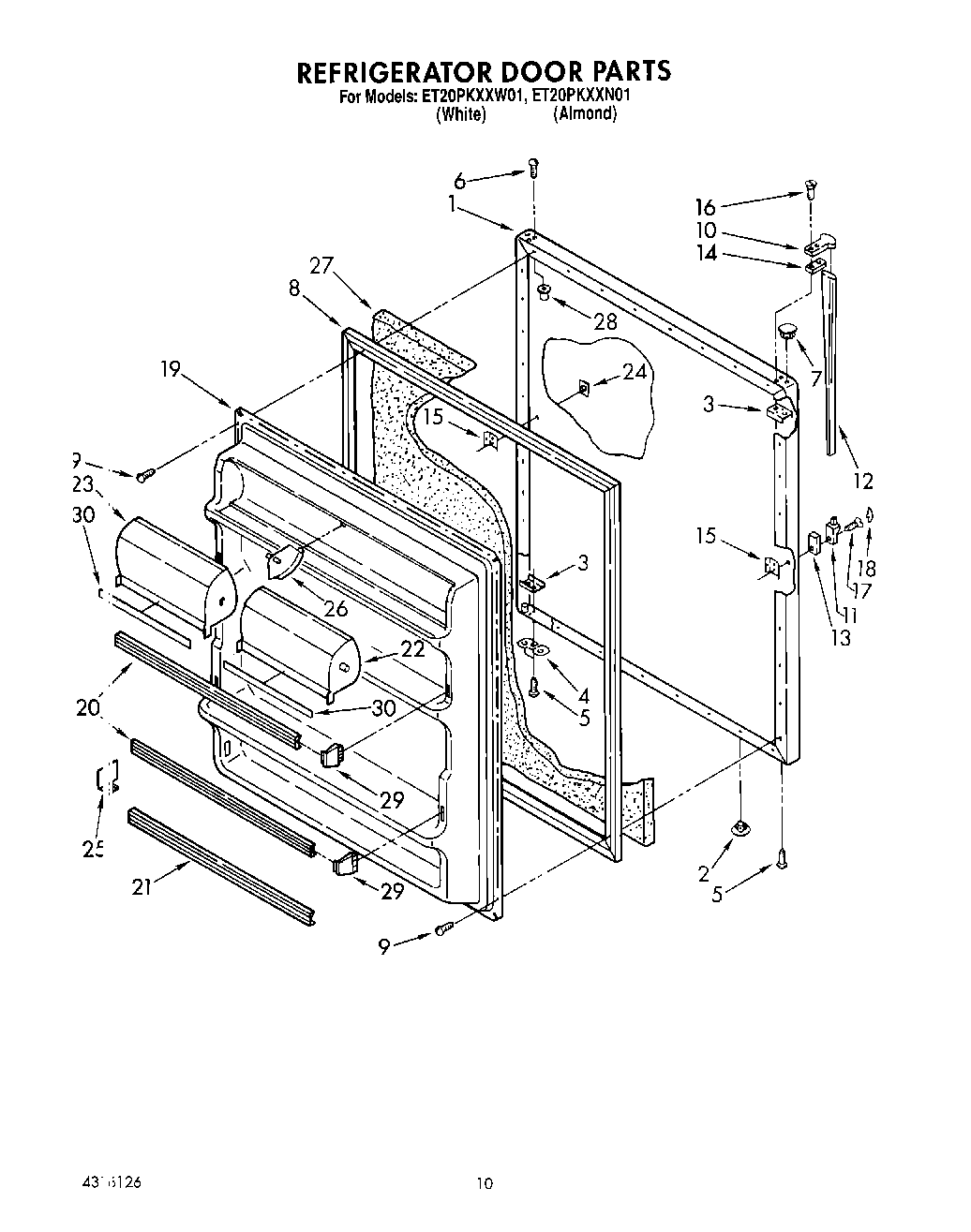

ET20PKXXW01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

ET20PKXXW01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

ET20PKXXW01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4316126
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT2148359
	WPL LIT2149859
	WPL LIT2148071
	Torx Key
1	Panel, Refrigerator Door (White)
1	Panel, Refrigerator Door (Almond)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	WP2191883 Whirlpool Refrigerator Handle Endcap
11	WP2183139 Whirlpool Refrigerator Handle End Cap
12	Handle, Center (Almond)
12	WP2162555 Whirlpool Refrigerator White Door Handle
13	Shim, Handle End
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP1101634 Whirlpool Refrigerator Cover
19	Interior Door Panel
20	Trim, Door Shelf (2)
21	Trim, Door
22	Compartment Door, Right Side
23	Compartment Door, Left Side
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug, Handle (Almond)
25	Divider, Shelf
26	WP1118001 Whirlpool Hinge Pin
28	Cap, Hinge Sleeve (2)
29	4318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
30	350930 Whirlpool White Spray Paint
30	Trim, Door Compartment
30	WPL 876029
30	511873 Whirlpool Refrigerator Paint
30	350942 Whirlpool Spray Paint
30	212643 Whirlpool Refrigerator Permagum Sealer
30	Almond (Uncut)
30	Leveler (Thinner)
30	WP72107 Whirlpool Touchup
30	799344 Whirlpool Refrigerator Paint
30	72017 Whirlpool Appliance Touch-Up Paint White
30	606755 Whirlpool Refrigerator Bag
30	833938 Whirlpool Refrigerator Terminal
30	876370 Whirlpool Refrigerator Insulation
30	72032 Whirlpool Touch Up Paint Black
30	285006 Whirlpool Spray
30	WPL 799833
30	CEMENT, ALUMILASTIC (1 1/4 OZ.)
30	TAPE, VINYL (3/4 X 108“)
30	WP542638 Whirlpool Refrigerator Grease
30	WP505587 Whirlpool Refrigerator Sealer
30	WP503695 Whirlpool Refrigerator Sealer
30	350956 Whirlpool Spray Assembly
