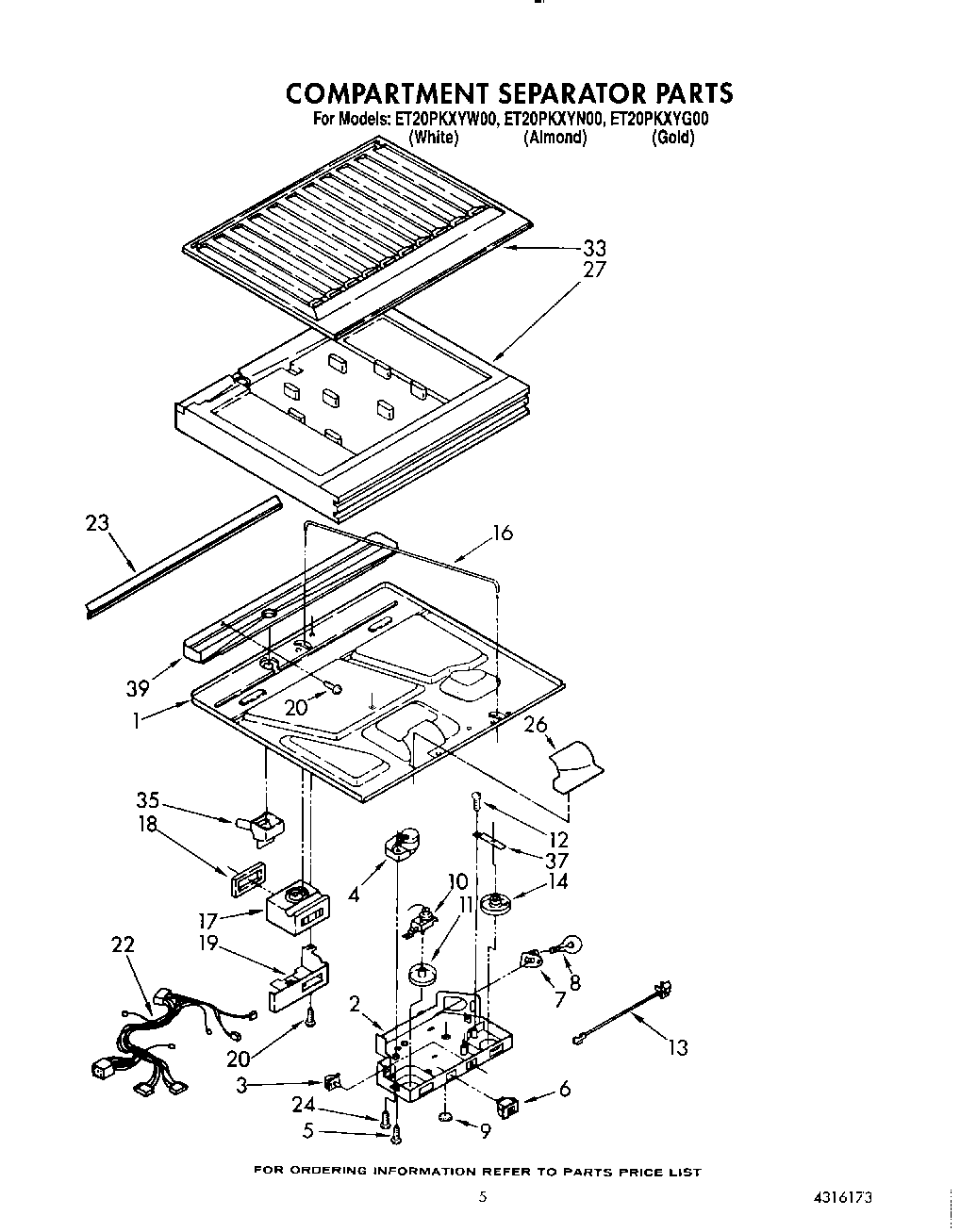

ET20PKXYG00 04 – COMPARTMENT SEPARATORadmin2025-04-26T12:45:54+00:00ET20PKXYG00 04 – COMPARTMENT SEPARATOR
Products
| Position | Product |
|---|
| 1 | Bottom, Compartment Separator |
| 2 | Box, Control |
| 3 | WP2149705 Whirlpool Refrigerator Door Switch |
| 4 | Defrost Timer, (10 Hr.) |
| 5 | WP487353 Whirlpool Refrigerator Screw |
| 6 | WP938213 Whirlpool Refrigerator Power Switch |
| 7 | 4387478 Whirlpool Refrigerator Light Socket |
| 8 | W11679940 Whirlpool Refrigerator Light Bulb Assembly |
| 9 | 940014 Whirlpool Refrigerator Primary Button Plug |
| 10 | 1123394 Whirlpool Cold Control Thermostat |
| 11 | Knob, Thermostat |
| 12 | WP965173 Whirlpool Dishwasher Screw |
| 13 | Ground Wire |
| 14 | Knob, Air Control |
| 16 | Rod, Connecting |
| 17 | Air Diffuser Assembly |
| 18 | Gasket, Air Diffuser |
| 19 | Cover, Air Diffuser |
| 20 | WP489478 Whirlpool Refrigerator Screw |
| 22 | Wiring Assembly, Control Box |
| 23 | Gasket, Bottom Separator |
| 24 | WP250830 Whirlpool Refrigerator Screw |
| 26 | Insulation, Filler |
| 27 | Insulation, Compartment Separator |
| 33 | Separator, Compartment (Top) |
| 35 | Cup, Drain |
| 37 | Bracket, Control Knob |
| 39 | Drain Pan |
