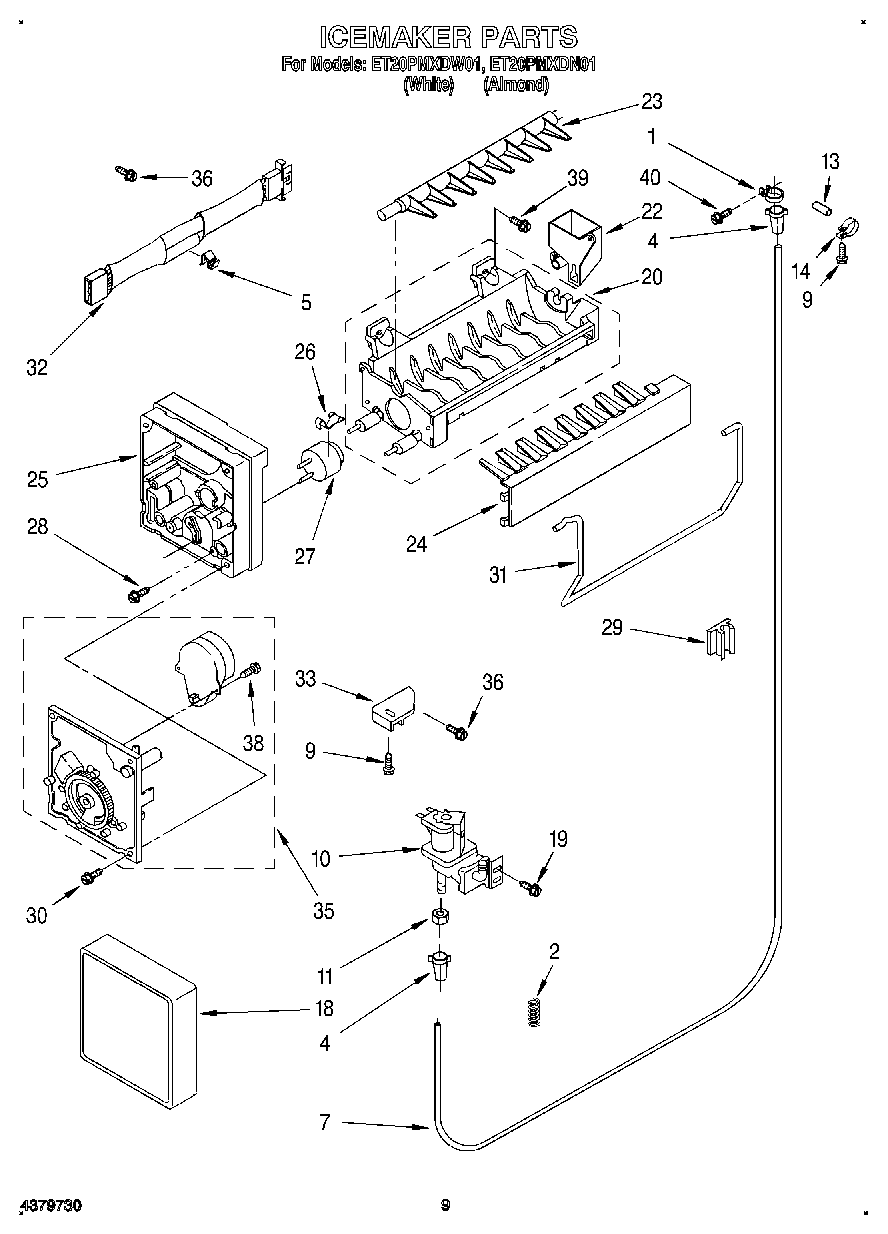

ET20PMXDW01 05 – ICEMAKER

Products

Position	Product
1	WP488878 Whirlpool Refrigerator Tube Clamp
2	Spring
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
7	W10823511 Whirlpool Refrigerator Water Tube
9	WP489478 Whirlpool Refrigerator Screw
10	VALVE-INLT
11	WP627018 Whirlpool Refrigerator Nut
13	Tube, Water Inlet
14	WP488366 Whirlpool Refrigerator Clamp
18	2174157 Whirlpool Refrigerator Front Cover
19	WP489463 Whirlpool Refrigerator Screw
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
20	WP542638 Whirlpool Refrigerator Grease
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
27	Cement Alumilastic)
28	8533917 Whirlpool Refrigerator Screw
29	W11501419 Whirlpool Refrigerator Clip
30	WP681249 Whirlpool Screw Assembly
31	WP627792 Whirlpool Refrigerator Shut Off Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	W11500948 Whirlpool Refrigerator Bracket
35	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
36	WP489442 Whirlpool Refrigerator Screw
38	489136 Whirlpool Refrigerator Screw
39	WP488163 Whirlpool Refrigerator Screw
40	WP488787 Whirlpool Refrigerator Screw
